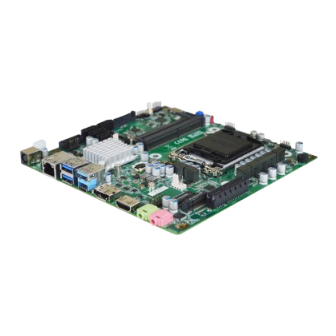

MI09-30/32 Series
User's Manual
No. G03-MI09-F
Rev: 2.0
Release date: November 1, 2021
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading

Related Manuals for JETWAY MI09-30 Series

Summary of Contents for JETWAY MI09-30 Series

  • Page 1 MI09-30/32 Series User’s Manual No. G03-MI09-F Rev: 2.0 Release date: November 1, 2021 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

  • Page 2: Table Of Contents

    TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION................... iii ENVIRONMENTAL PROTECTION ANNOUCEMENT..............iii USER’S NOTICE............................ iv MANUAL REVISION INFORMATION....................iv ITEM CHECKLIST..........................iv CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD GENERAL SPECIFICATIONS..................... 1 LAYOUT DIAGRAM.......................2 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING........................ 6 MOTHERBOARD INTERNAL CONNECTORS & WAFERS.......... 8 HEADER PIN DEFINITION....................

  • Page 3: Environmental Safety Instruction

    Environmental Safety Instruction  Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet.  0 to 40 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) ...

  • Page 4: User's Notice

    USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

  • Page 5: Chapter 1 Introduction Of The Motherboard

    Chapter 1 Introduction of the Motherboard 1-1 General Specifications Spec Description Design Slim Mini-ITX form factor; PCB size: 17 x17cm  Chipset Intel H470 Chipset  Intel LGA 1200 Socket supports 10 Core  i9/i7/i5/i3/Pentium/Celeron Comet Lake-S & Rocket CPU Socket Lake-S processors (Max.

  • Page 6: Layout Diagram

    1* Front panel audio header  Optional for MI09-32 Series TPM 2.0 Function  1-2 Layout Diagram Rear IO Diagram 12V~19V RJ-45 USB 3.2 Gen.2 Port DC-IN LAN Port (Type-A) Power Jack Line-Out Display Port MIC-In USB 3.2 Gen.2 Ports HDMI Port (Type-A) USB 3.2 Gen.1 Port...
  • Page 7 Motherboard Internal Diagram-Front SATA Internal DC-In USB 3.2 (Gen.1) Serial Port Power-Out Power Connector Header Header SATAIII Ports (ATX2P) Connector Front Panel Header MON-SW 2*DDR4 Wafer SODIMM Slots BL_SW LVDS USB 2.0 Header Connector Header Inverter Wafer (FPD) SYSFAN1 Wafer *Rear IO USB 2.0 Connector...
  • Page 8 Motherboard Jumper Position: JAT_ATX JBAT FPD_PWR LCD_VCC *Note: The diagrams in the manual are mostly taken from MI09-30 series unless otherwise stated. Jumper Jumper Name Description Pitch JBAT Clear CMOS RAM Settings 3-pin Block 2.0mm ME Features Select 2-pin Block 2.0mm...
  • Page 9 Connectors & Wafers Name DCIN 12V~19V Internal DC-IN Power Jack LAN1 1GbE RJ-45 LAN Port Type-A USB 3.2 (Gen.2) Port X2 USB31_1 Type-A USB 3.2 (Gen.2) Port USB31_2 Type-C USB 3.2 (Gen.1) Port USBC1 Display Port HDMI1 HDMI 1.4 Port HOUT1 Audio Line Out Port HMIC1...

  • Page 10: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2-1 Jumper Setting JBAT (3-pin): Clear CMOS RAM Settings JBAT JBAT → Clear CM OS Settings 1-2 Closed: Normal; 2-3 Closed: Clear CMOS. JP1(2-pin): ME Features Select → ME Features Select Pin1 1-2 Open: Enable ME Features(Default); Pin1 1-2 Closed: Disable ME Features.
  • Page 11 LCD_VCC(3-pin): LVDS Panel Power VCC Select LCD_VCC → LVDS Panel Power VCC Select 1-2 Closed: VCC=+3.3V; 2-3 Closed: VCC=+5V. LCD_VCC FPD_PWR(3-pin): LVDS Inverter Backlight VCC Select FPD_PWR → LVDS Inverter VCC Select 1-2 Closed: VCC=+12V; 2-3 Closed: VCC=Power Adapter VCC. FPD_PWR...

  • Page 12: Motherboard Internal Connectors & Wafers

    2-2 Motherboard Internal Connectors & Wafers (1) ATX2P (2-pin block): Internal 12V~19V power connector ATX2P (2) SATA1/2/3/4(7-pin): SATAIII Port connector These are high-speed SATAIII ports that support 6GB/s transfer rate. SATA1 SATA2 SATA3 Pin No. Definition SATA4 (3) SATA_PWR (15-pin block): SATA power connector SATA_PWR Pin1 SATA Power Out...
  • Page 13 (4) CPU_FAN1 (4-pin): CPU FAN Wafer CPU_FAN1 Pin1 +12V Fan Power Fan Speed Control (5) SYS_FAN1 (4-pin): System FAN Wafer SYSFAN1 Pin1 (6) MON_SW (2-Pin): Monitor Switch Wafer MON_SW is for LVDS display switch. MON_SW...
  • Page 14 (7) LVDS(40-pin): 48-bit LVDS Connector LVDS Pin No. Pin Define Pin 40 LVDS_DDC_DATA Pin 39 Pin 38 LVDS_BKLT_PWR option Pin 37 LVDS_BKLT_PWR option Pin 36 LVDS_BKLT_PWR option Pin 35 LVDS_CLKBN Pin 34 LVDS_CLKBP Pin 33 LCD_BKLT_PWM Pin 32 LCD_BKLT_EN Pin 31 LVDS_DDC_CLK Pin 30 Pin 29...

  • Page 15: Header Pin Definition

    (8) FPD (8-pin): LVDS Inverter Connector Warning! Find Pin-1 location of the inverter and make sure that the installation direction is correct! Otherwise serious harm will occur to the board/display panel!! 2-3 Header Pin Definition (1) SYS_PANEL (9-pin): System Front Panel Header SYS_PANEL (2) COM1(9-Pin): RS232/RS422/RS485 Serial Port Header COM1...
  • Page 16 (3) BL_SW (2-pin): Brightness Control Switch Header Pin1 BL_SW (4) FP_USB1(19-pin): USB 3.2 (Gen.1) Port Wafer FP_USB1 Pin1 (5) FP_USB2/FP_USB3 (9-pin): USB 2.0 Port Header FP_USB2 +DATA +DATA -DATA -DATA Pin 1 FP_USB3 (6) FP_USB4 (4-pin): USB 2.0 Port Header FP_USB4...

  • Page 17: Maximum Voltage & Current Limit

    (7) FP_AUDIO (9-pin): Line-Out, MIC-In Header This header connects to Front Panel Line-out, MIC-In connector with cable. FP_AUDIO Pin 1 *Note: FP_AUDIO (Line-out & MIC-In function) co-lay with rear IO Line-Out & MIC ports, but only one of the settings function at the same time. User can choose either Line-Out/MIC-In drawn from FP_AUDIO or directly from the rear I/O but not both of them.

  • Page 18: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

  • Page 19: Bios Menu Screen

    3-2 BIOS Menu Screen The following diagram show a general BIOS menu screen: Menu Bar General Help Items Current Setting Value Menu Items Function Keys 3-3 Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 20: Getting Help

    3-4 Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the top right corner the screen. Status Page Setup Menu/Option Page Setup Menu Press【F1】to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.

  • Page 21: Advanced Menu

    System Date Set the date. Please use [Tab] to switch between date elements. System Time Set the time. Please use [Tab] to switch between time elements. 3-7 Advanced Menu  Connectivity Configuration Use this item to configure Connectivity related options. Press [Enter] to make settings for the following sub-items: CNVi present CNVi Configuration...
  • Page 22 [Enabled], it allows CPU to go to C states when it’s not 100% utilized. The optional settings: [Disabled]; [Enabled]. Turbo Mode Use this item to enable or disable processor Turbo Mode (requires Intel Speed Step or Intel Speed Shift to be available and enabled.) The optional settings: [Disabled];...
  • Page 23 *Note: In the case that user needs to update Me firmware, user should set ‘Me FW Image Re-Flash’ as [Enabled], save the settings and exit. The system will turn off and reboot after 4 seconds. If the user goes to BIOS screen again will find this item is set again as [Disabled], but user can still re-flash to update firmware next time.
  • Page 24 minute(s). USB S3/S4 Wake-up Use this item to enable or disable USB S3/S4 Wake-up. The optional settings: [Disabled]; [Enabled]. This function is supported when ‘ERP Support’ is set as [Disabled]. *Note: USB S5 Power Use this item to enable or disable USB Power after System Shutdown. The optional settings: [Disabled];...
  • Page 25 ‘WatchDog Reset Timer Unit’ set as [Min]. WatchDog Reset Timer Unit The optional settings: [Sec.]; [Min.]. ATX Power Emulate AT Power This item support Emulate AT power function, MB power On/Off control by power supply. Use needs to select ‘AT or ATX Mode’ on MB jumper at first (refer to JAT_ATX jumper setting for ATX Mode &...
  • Page 26 Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a “stop” signal can be sent to stop the data flow. Once the buffers are empty, a “start” signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.
  • Page 27 *This item may or may not show up, depending on different configuration. Parity EMS The default setting is: [None]. *This item may or may not show up, depending on different configuration. Stop Bits EMS The default setting is: [1]. *This item may or may not show up, depending on different configuration. ...
  • Page 28 The optional settings: [1 sec]; [5 sec]; [10 sec]; [20 sec]. Device reset time-out Use this item to set USB mass storage device Start Unit command time-out. The optional settings: [10 sec]; [20 sec]; [30 sec]; [40 sec]. Device power-up delay Use this item to set maximum time the device will take before it properly reports itself to the host controller.

  • Page 29: Chipset Menu

    3-8 Chipset Menu  System Agent (SA) Configuration Press [Enter] to make settings for the following sub-items: System Agent (SA) Configuration VT-d ► Memory Configuration Press [Enter] to view brief information for the working memory module. ► Graphics Configuration Press [Enter] to make further settings for Graphics Configuration. Graphics Configuration Aperture Size Use this item to select the Aperture Size.
  • Page 30 SDVO LVDS: VBIOS enables LVDS driver by SDVO encoder. eDP Port-A: LFP Driven by Int-DisplayPort encoder from Port-A. When set as [Enabled], the following sub-items shall appear: Panel Type Use this item to select panel type. The optional settings: [800x 480 18bit Single]; [800x 600 18bit Single]; [800x 600 24bit Single];...

  • Page 31: Security Menu

    3-9 Security Menu Security menu allow users to change administrator password and user password settings. Administrator Password If there is no password present on system, please press [Enter] to create new administrator password. If password is present on system, please press [Enter] to verify old password then to clear/change password.
  • Page 32 show up:  Restore Factory Keys Use this item to force system to User Mode, to install factory default Secure Boot key databases.  Reset To Setup Mode  Key Management This item enables expert users to modify Secure Boot Policy variables without full authentication, which includes the following items: Vendor Keys Factory Key Provision...

  • Page 33: Boot Menu

    3-10 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Use this item to select keyboard NumLock state. The optional settings: [On]; [Off]. Quiet Boot Use this item to enable or disable Quiet Boot option.

  • Page 34: Save & Exit Menu

    3-11 Save & Exit Menu Save Options Save Changes and Reset This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Default Options Restore Defaults Use this item to restore /load default values for all the setup options.

This manual is also suitable for:

Mi09-32 series
