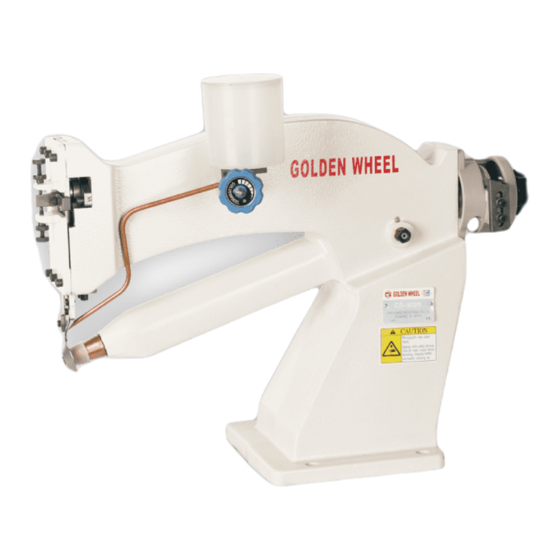

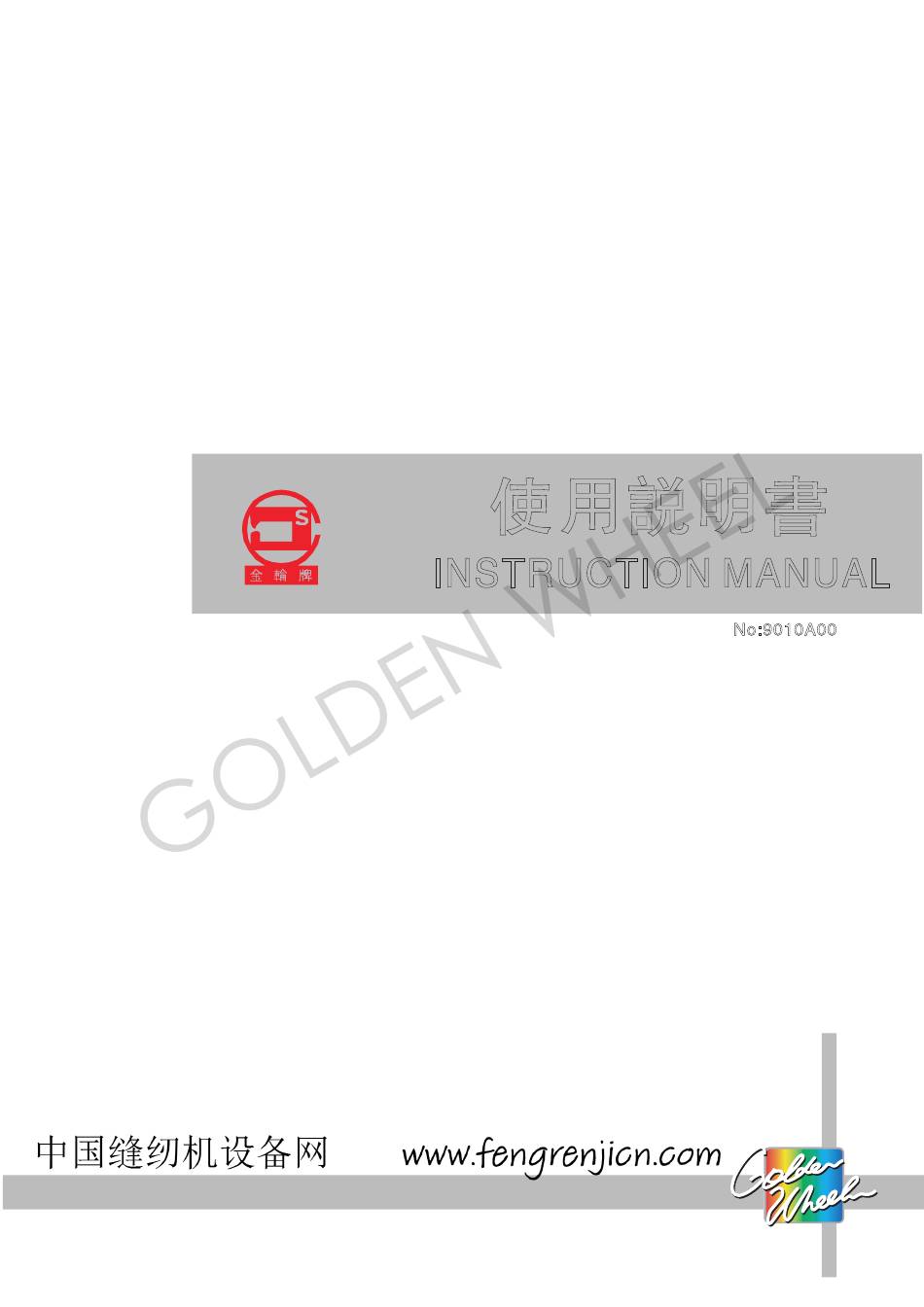

- Page 1 CS-9010（小圆刀） CS-9020（大圆刀） 鞋底内里修边机 使用说明书 INSTRUCTION MANUAL No:9010A00 Read safety Instructions carefully and understand them before using. Retain this Instruction Manual for future reference. 为了安全地使用，请您在使用之前仔细阅读本使用说明书。 另外，请您注意保管本使用说明书，以便随时查阅。...
- Page 2 CS-9010,9020 说明书 / INSTRUCTION MANUAL 1. 注意 1）请注意马达电压的接线与相数，是否与你的用电一致，改变电压与运转方向，请按 马达上的指示路线图接用。 2）机器的运转方向，机器后侧ME0308-0A砂轮护盖上，红色箭头所示方向运转。 1. CAUTION 1）Before wiring the machine to power sources, check whether the motor voltage/phase/ wire connection are the same the local used. To change the voltage and turning direction, please follow the circuit diagram shown on the motor.
- Page 3 CS-9010,9020 说明书 / INSTRUCTION MANUAL 5. 压脚ME0118-0A的高度调整 1）工作物的毛边（如鞋底的毛边，鞋面的内里）必需在压脚ME0118-0A与下刀 ME0202-0A之间，很容易滑动。 2）压脚ME0118-0A如太低时，工作物移动困难，毛边修削不干净，如太高时，工作容 易被修削到。 3）压脚ME0118-0A的高度调整，只需转动ME0302-0A、ME0303-0A的螺丝，调整完 毕，将ME0302-0A、ME0303-0A螺帽锁紧。 5. ADJUSTING POSITION OF PRESSING LEG ME0118-0A 1）The work piece, stationed between pressing leg ME0118-0A and under cutter ME0202-0A should easily pass through during trimming of the product (Such as shoe sole spews and its inner lining).
- Page 4 CS-9010,9020 说明书 / INSTRUCTION MANUAL 7. 上刀ME0112-0A的装置 1）把上刀ME0112-0A置於ME0109-0A刀杆槽内，装上ME0111-0A上刀板，将 ZMJ04001螺丝轻微锁住用手转动机器后侧的塑料轮ME0307-0A,使刀杆ME0109-0A 下降至最低点，调整上刀ME0112-0A的上端角与下刀ME0202-0A的距离为 0.5mm-1.0mm，后锁紧ZMJ04001螺丝。 2）移回压脚ME0118-0A，锁紧ZMB04011螺丝。 3）用手转动机器后侧塑料轮ME0307-0A，检查转动是否顺畅，如顺畅，然后才开动马 达。 7. INSTALLATION OF UPPER CUTTER ME0112-0A 1）Put upper cutter ME0112-0A into ME0109-0A cutter bar groove, to fix ME0111-0A upper cutter plate, slightly turning screw ZMJ04001, ten turn the plastic wheel ME0307-0A at the rear of the machine to allow cutter bar ME0109-0A to drop to its lowest point.
- Page 5 启 翔 股 份 有 限 公 司 CHEE SIANG INDUSTRIAL CO., LTD. NO.32 WU CHUAN 7TH ROAD, WU KU INDUSTRIAL AREA, WU KU HSIANG 24248, TAIPEI HSIEN, TAIWAN.
