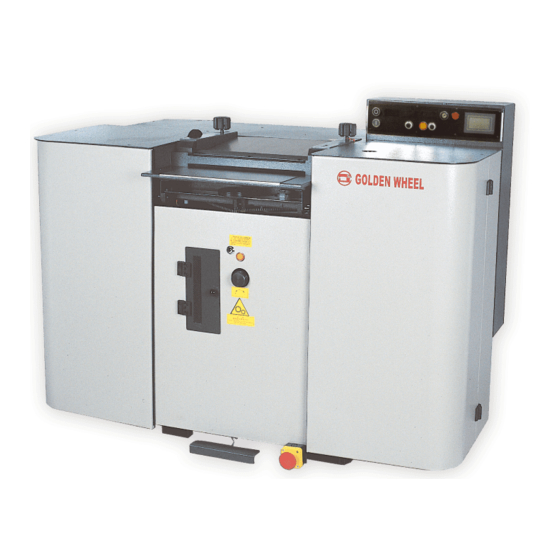

Golden wheel CS-S868 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Read safety Instructions carefully and understand them before using.
Read safety Instructions carefully and understand them before using.
Retain this Instruction Manual for future reference.
Retain this Instruction Manual for future reference.
，
，
，
，
INSTRUCTION MANUAL
，
，
CS-S868
CS-S868
No:S868A00
。
。
。
。

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS-S868 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Golden wheel CS-S868

Summary of Contents for Golden wheel CS-S868

  • Page 1 CS-S868 CS-S868 INSTRUCTION MANUAL No:S868A00 Read safety Instructions carefully and understand them before using. Read safety Instructions carefully and understand them before using. Retain this Instruction Manual for future reference. Retain this Instruction Manual for future reference. ， ， 。...
  • Page 2 / CONERNTS IMPORTANT WARNING ILLUSTRATE THE PURPOSE OF THE MACHINE ATTENTION WHEN REMOVE THE BOX INSTALL THE MACHINE 9 10 ELECTRIC POWER CONNECT PREPARATION BEFOORE THE MACHINE IS RUNNING 10 11 OPEARTION 11 20 MAINTENANCE AND REMENDING 20 30...
  • Page 3 INSTRUCTION MANUAL CS-S868 1/ Fig 1 1/ Fig 1...
  • Page 4 INSTRUCTION MANUAL CS-S868 2/ Fig 2...

  • Page 5: Important Warning

    INSTRUCTION MANUAL CS-S868 / IMPORTANT WARNING Fig.1 Fig.2) Equipped with Safety-Guard Device to avoid the accidents. Be careful the movable parts & sharp knife edge while operating and maintenance. Please observe the manual when install or use the machine. Do not remove and destroy the Safety-Guard Device.
  • Page 6 CS-S868 Please read the instructions manual carefully, even if you are the expert! So that you could learn more about the functions of the CS-S868,and keep it in the best working situation. Please confirm whether the operator is trained or not Arrange the person make the daily or emergent maintenance of the machine by schedule.
  • Page 7 CS-S868 Please read carefully about the manual of CS-S868 before using. CS-S868 equipped with the below kinds of main components:one none-joint bandy splitting knife which is running on the two supporting wheel, one consecutive knife grinding component, and one working scraps box component, and one exhaustrors for scraps component, one exhaustrors for emery dust component and one wheel feed component.
  • Page 8 510mm 8mm, 0.2mm. A ), CS-S868 is designed for the height of leather or similar materials(such as leatheroid, regenerate materials) average or decrease. The max. rigidity of the materials must less or up to 90 Zhaoshi rigidity A, and the machine is mainly used by shoe factory. And with the machine, the max width is 510mm, the max.

  • Page 9: Install The Machine

    INSTRUCTION MANUAL CS-S868 INSTALL THE MACHINE PPD ( Fig.1 ). C1 ( Fig.1 ). C2,C3,C4,C5 ( Fig.1 ). SQ-1,SQ-2,SQ-3 ( Fig.2 ). PCV ( Fig.1 ). PLM1 ( Fig.1 ). PLM2 ( Fig.1 ). PLM3 ( Fig.1 ). PPC ( Fig.1 ).
  • Page 10 INSTRUCTION MANUAL CS-S868 6-3. / Connect the main power supply ( 4 X 2.5 15kVA , 25A 200-254 Vac,20A 80-440 Vac. Through the wire( 4*2.5M ) of the machine and plug, for safety, please connect a current breaker, the capability is 15kva, min electricity is 25A200- 254Vac,20A80-440Vac.
  • Page 11 INSTRUCTION MANUAL CS-S868 7-2. / Cleaning ( Fig.1). DS ( Fig.1), FL ( Fig.1) D ( Fig.5 ) . PEM, Release the back oriented wedged block CUS(Fig.1) of the upper knife blade by remove the fixed ball stud P4. Fixed the balance pallet DS(Fig.1) and check the nylon strin FL(Fig.1)is wound in the idle...
  • Page 12 8-1. / Function of the button CS-S868 .( Fig.6 ) 6/ Fig 6 CS-S868 Electric cabinet panel(feed stepless speed changes & automatic backtacking) PN1 Digital thickness readout screen SA1 when maintain, turn off the switch HL1 Indicate light SB2 Stop the machine...
  • Page 13 RP1 ( par.6-2 ) 5 25 m/min ( par.6-2 ). .SB1 8-3-3. CS-S868 Electric cabinet panell touch screen, Feed stepless speed changes & Automatic backtacking function. Press button (Par.6-2) start the machine, turn the adjusting knob RP1(Par.6-2) to adjust feed speed, the machine's feed speed will be at 5-25 m/min.
  • Page 14 INSTRUCTION MANUAL CS-S868 8-4. / Knife grinding The designed knife grinding is made by corundum or diamond. The type of the grinding stone must be shown in your puechase order, of course, you also could buy and exchange the optional spare parts.
  • Page 15 INSTRUCTION MANUAL CS-S868 8-4-3. C3 ( Fig.1 ) B ( Fig.7 ) A ( Fig.7 ) B ( Fig.7 ) A ( Fig.7 ) - - . 8 4 3 Grinding the knife. Please do as the below order strictly.
  • Page 16 INSTRUCTION MANUAL CS-S868 8-4-5. 5 8 cm 8-4-5. Grinding the knife with diamond stone. Increase or decrease the grinding pressure by turning the outer inching switch A carefully. Since the life of knife and the stone is up to the adjusting precision. Turn the adjusting knob A anticlockwise until the stone and the blade meet each other, and it will generate 5-8cm long weak spark.
  • Page 17 ( par.6-2 ) .( Fig.8 ) 8-5-1. Setting up the thickness of leather spliting. CS-S868, the range of the thickness of leather spliting is 0.2-8 mm, and the thickness will be shown on the digital screen PN1(par.6-2). The handle E on the supporting arm could be set and adjusted.( Fig.8 )
  • Page 18 INSTRUCTION MANUAL CS-S868 8-5-4. ( Fig.8 ) 8-5-3. The position of the lower wheel feed adjusting Adjust the pressure by handwheel F on the supporting arm, increase by turning in clockwise direction, decrease by turning in anticlockwise. ( Fig.8 )
  • Page 19 INSTRUCTION MANUAL CS-S868 8-6-3. SB1 ( Fig.1 2 ), . ( Fig.9 ) 8-6-3. Exchange the upper feed wheel/fixed Guide Roll Press the instance-stop button SB1(Fig.1&2), set the thickness of leather splitting up to 4mm so as to be exchanged easily. Open the cover C1,remove the feed table PEM, and loosen the two screws V, and remove the previous Upper Feed Wheel &...
  • Page 20 Clean the scrap filter bag SPA (Fig.1) Clean the scrap (Fig.1) Lubricate the left upper felt Asm FSS (Fig.1), please use the specialized Golden Wheel lubrication oil. Don't use air compresser, otherwise the quality will lose efficacy. / MAINTENANCE AND REMENDING he maintenance must be done by professional person.
  • Page 21 INSTRUCTION MANUAL CS-S868 9-1. / Maintenance Changing the cutter(only done by professional person) .( Fig.10 ) Turn the adjusting knob A to take back the grinding components.( Fig.10 ) PEM ( Fig.1 ). Remove the feed table. C1 , LCP ( Fig.1 ).
  • Page 22 INSTRUCTION MANUAL CS-S868 D ( Fig.12 ) Lift the counterweight D(Fig. ) by handle H and lock it with the handle L, make sure the knife can't move any more. GIS ( Fig.1 ). Remove the lower left guide templet GIS (Fig.1).
  • Page 23 INSTRUCTION MANUAL CS-S868 9-2. / Maintenance 9-2-1. ( Fig.1 ). A ( Fig.10 ) C ( Fig.10 ) A ( Fig.10) B ( Fig.10 ) 9-2-1. Exchange the grinding stone Cut off the power supply( main power button QS1). Remove the top cover C1, front cover C2 and middle cover C3(Fig.1).
  • Page 24 INSTRUCTION MANUAL CS-S868 9-2-3. ( Fig.1 ). ZMJ10013 ZMJ10013.( Fig.14 ) 9-2-3. Exchange the upper knife rear guide plate. Move the wedge templet CUS of the upper guide plate and lock it by the handle P4. 11/ Fig 11 Loosen screw ZMJ10013.
  • Page 25 INSTRUCTION MANUAL CS-S868 9-2-6. ( 0.2mm ) LCP ( Fig.1 ). VP ( Fig.1 ). RP1 ( Fig.2 ). 0.2mm. 9-2-6. The thickness readout setting. When you use the fixed guide roll, set the minimum 0.2mm, if the displayed can't achieve, please do as below: Remove the guide plate guard cover LCP (Fig.1)
  • Page 26 INSTRUCTION MANUAL CS-S868 9-2-8. FC ( Fig.1 ). SPS ( Fig.1 ). 9-2-8. Waste eliminating box Waste box CS. Waste dust inner filter FC (Fig.1) It is made up of filter plates combined on the eliminating box. ou must clean it on time.
  • Page 27 INSTRUCTION MANUAL CS-S868 9-2-10. FC ( Fig.1 ). SPS ( Fig.1 ) ( SPA ( Fig.1 ). 8-12 BNHK221644 / BNHK2220. MD2256-0A MD1382-0A. MD4224-0A. MD5217-0A. 9-2-10. Daily maintenance. Don't use compressed air, otherwise the quality can't be guaranteed. Everyday Clean the machine.
  • Page 28 INSTRUCTION MANUAL CS-S868 9-2-11. 19 mm ) 9-2-11. Problems: cause and solution Problems: Leather splitting The thickness A sheet of leather splitting: fault variety Knife guide wheel over-attrite. Lower knife back guide block lose efficacy Different leather splitting Change the upper feed wheel to fixed guide rod.
  • Page 29 INSTRUCTION MANUAL CS-S868 9-2-12. L1 - L2 - L3 QS1, QF1 - QF2 VC1 24VAC SB1 ( SQ1 - SQ2 - SQ3 FT1 - FT2 - FT3 - FT4 - FT5 5Vdc 5Vdc PN1,3-7 ( par.7-5 ) 9-12. Electric problems...
  • Page 30 INSTRUCTION MANUAL CS-S868 9-2-13. QS1, OC2 ) 150%, ( 200% 150% 150% 9-2-13.Transducer displayed problems analyse. If you want to return to work, restart the transducer(turn off the main switch QS1, cut off the power supply)and wait about 20 seconds for restarting the power supply.
  • Page 31 CHEE SIANG INDUSTRIAL CO.,LTD. NO.32 WU CHUAN 7TH ROAD, WU KU INDUSTRIAL AREA, WU KU HSIANG 24248, TAIPEI HSIEN, TAIWAN.
