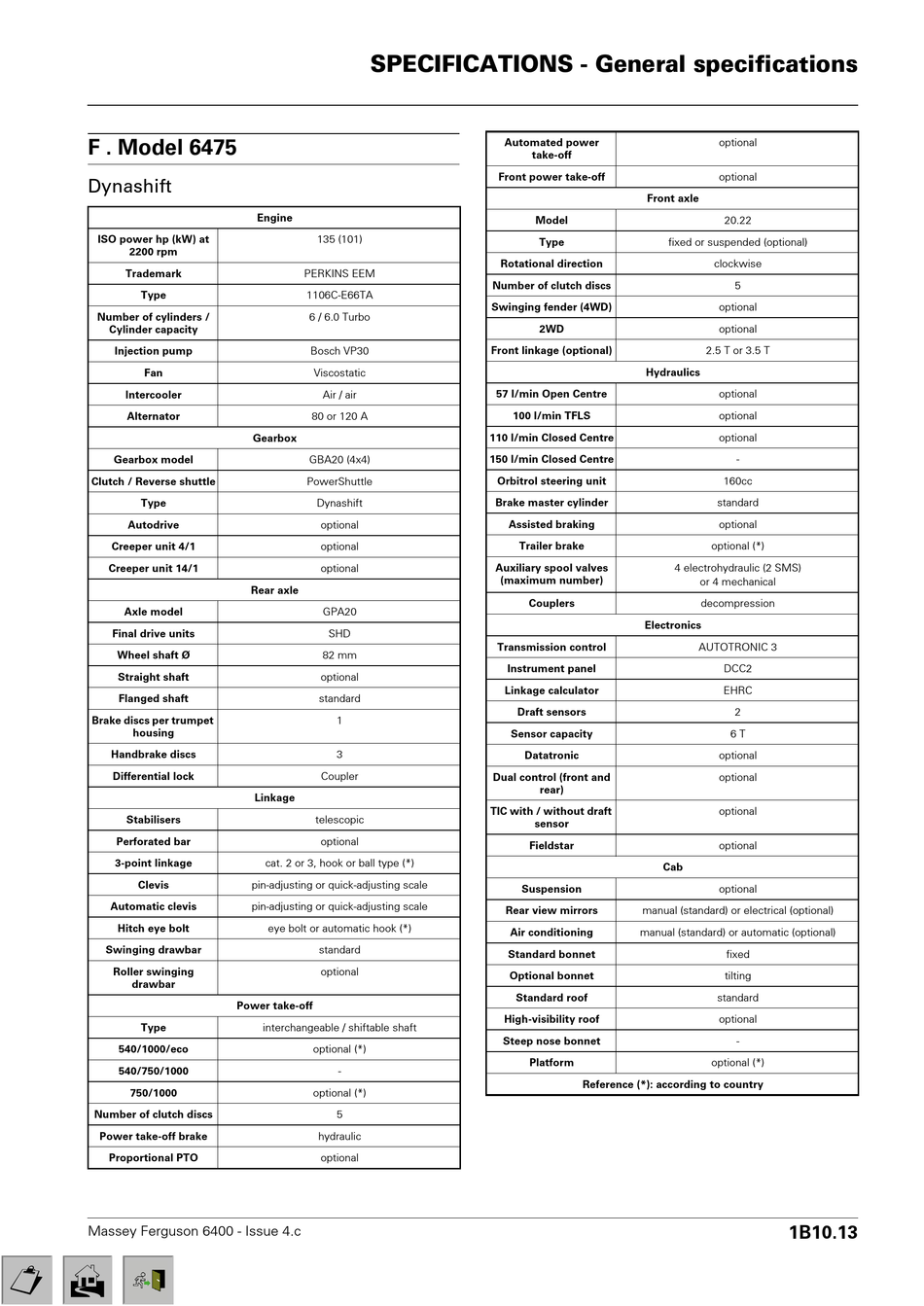

F . Model 6475

Dynashift

ISO power hp (kW) at
2200 rpm
Trademark
Type
Number of cylinders /
Cylinder capacity
Injection pump
Fan
Intercooler
Alternator
Gearbox model
Clutch / Reverse shuttle
Type
Autodrive
Creeper unit 4/1
Creeper unit 14/1
Axle model
Final drive units
Wheel shaft Ø
Straight shaft
Flanged shaft
Brake discs per trumpet
housing
Handbrake discs
Differential lock
Stabilisers
Perforated bar
3-point linkage
Clevis
Automatic clevis
Hitch eye bolt
Swinging drawbar
Roller swinging
drawbar
Type
540/1000/eco
540/750/1000
750/1000
Number of clutch discs
Power take-off brake
Proportional PTO
Massey Ferguson 6400 - Issue 4.c
¤
H
SPECIFICATIONS - General specifications
Engine
135 (101)
PERKINS EEM
1106C-E66TA
6 / 6.0 Turbo
Bosch VP30
Viscostatic
Air / air
80 or 120 A
Gearbox
GBA20 (4x4)
PowerShuttle
Dynashift
optional
optional
optional
Rear axle
GPA20
SHD
82 mm
optional
standard
1
3
Coupler
Linkage
telescopic
optional
cat. 2 or 3, hook or ball type (*)
pin-adjusting or quick-adjusting scale
pin-adjusting or quick-adjusting scale
eye bolt or automatic hook (*)
standard
optional
Power take-off
interchangeable / shiftable shaft
optional (*)
-
optional (*)
5
hydraulic
optional
Automated power
take-off
Front power take-off
Front axle
Model
Type
Rotational direction
Number of clutch discs
Swinging fender (4WD)
2WD
Front linkage (optional)
Hydraulics
57 l/min Open Centre
100 l/min TFLS
110 l/min Closed Centre
150 l/min Closed Centre
Orbitrol steering unit
Brake master cylinder
Assisted braking
Trailer brake
Auxiliary spool valves
(maximum number)
Couplers
Electronics
Transmission control
Instrument panel
Linkage calculator
Draft sensors
Sensor capacity
Datatronic
Dual control (front and
rear)
TIC with / without draft
sensor
Fieldstar
Cab
Suspension
Rear view mirrors manual (standard) or electrical (optional)
Air conditioning manual (standard) or automatic (optional)
Standard bonnet
Optional bonnet
Standard roof
High-visibility roof
Steep nose bonnet
Platform
Reference (*): according to country
optional
optional
20.22
fixed or suspended (optional)
clockwise
5
optional
optional
2.5 T or 3.5 T
optional
optional
optional
-
160cc
standard
optional
optional (*)
4 electrohydraulic (2 SMS)
or 4 mechanical
decompression
AUTOTRONIC 3
DCC2
EHRC
2
6 T
optional
optional
optional
optional
optional
fixed
tilting
standard
optional
-
optional (*)
1B10.13
