Tyco TY-FRL Series Quick Manual

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
Series TY-FRL — 2.8, 5.6, and 8.0 K-factor
Upright, Pendent, and Recessed Pendent Sprinklers
Quick Response, Standard Coverage
General
Description

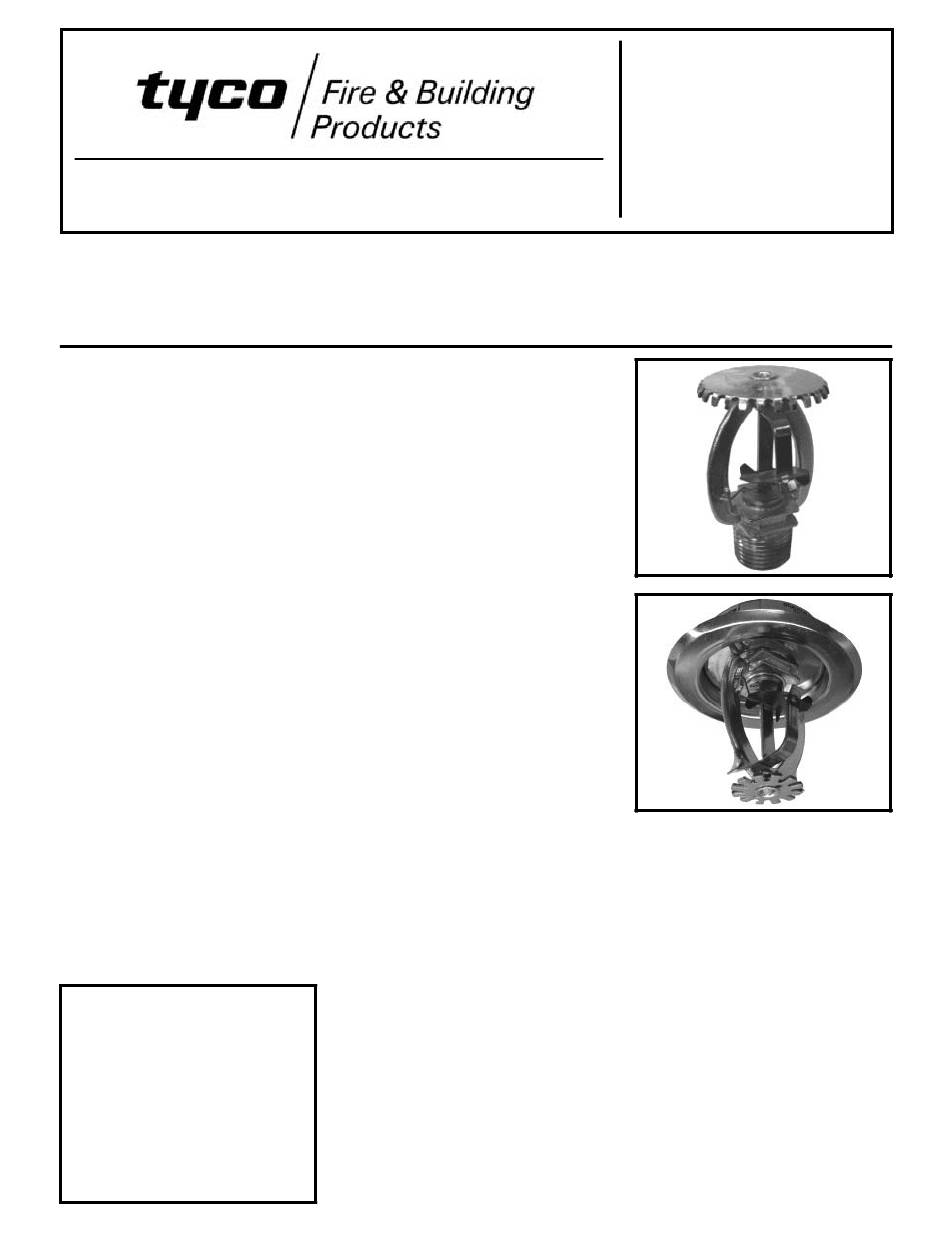

The Series TY-FRL, 2.8, 5.6, and 8.0
K-factor, Upright and Pendent Sprin-
klers described in this data sheet are
quick response - standard coverage,
solder type spray sprinklers designed
for use in light and ordinary hazard,
commercial occupancies such as
banks, hotels, shopping malls,
schools, hospitals, etc.
The recessed version of the 2.8 and
5.6 K-factor, Series TY-FRL Pendent
Sprinkler, where applicable, is in-
tended for use in areas with a finished
ceiling. It uses a two-piece Style 20
(1/2 inch NPT) Recessed Escutcheon.
The Recessed Escutcheon provides
1/4 inch (6,4 mm) of recessed adjust-
ment or up to 1/2 inch (12,7 mm) of
total adjustment from the flush pen-
dent position. The adjustment provided
by the Recessed Escutcheon reduces
the accuracy to which the fixed pipe
drops to the sprinklers must be cut
An intermediate level version of the 5.6
and 8.0 K-factor, Series TY-FRL Pen-
dent Sprinkler can be obtained by util-
izing the Series TY-FRL Pendent
Sprinkler in combination with the
Model S4 Shield.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
WARNINGS
The Series TY-FRL Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the performance of these de-
vices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Model/Sprinkler
Identification
Numbers
TY1121 - Upright 2.8K, 1/2"NPT
TY1221 - Pendent 2.8K, 1/2"NPT
TY3121 - Upright 5.6K, 1/2"NPT
TY3221 - Pendent 5.6K, 1/2"NPT
TY4121 - Upright 8.0K, 3/4"NPT
TY4221 - Pendent 8.0K, 3/4"NPT
TY1121 is a redesignation for S1879
and G8973.
TY1221 is a redesignation for S1880
and G8971.
TY3121 is a redesignation for S1864
and G8974.
TY3221 is a redesignation for S1865
and G8972.
TY4121 is a redesignation for S1866
and G8174.
TY4221 is a redesignation for S1867
and G8172.
JULY, 2004 TFP130
