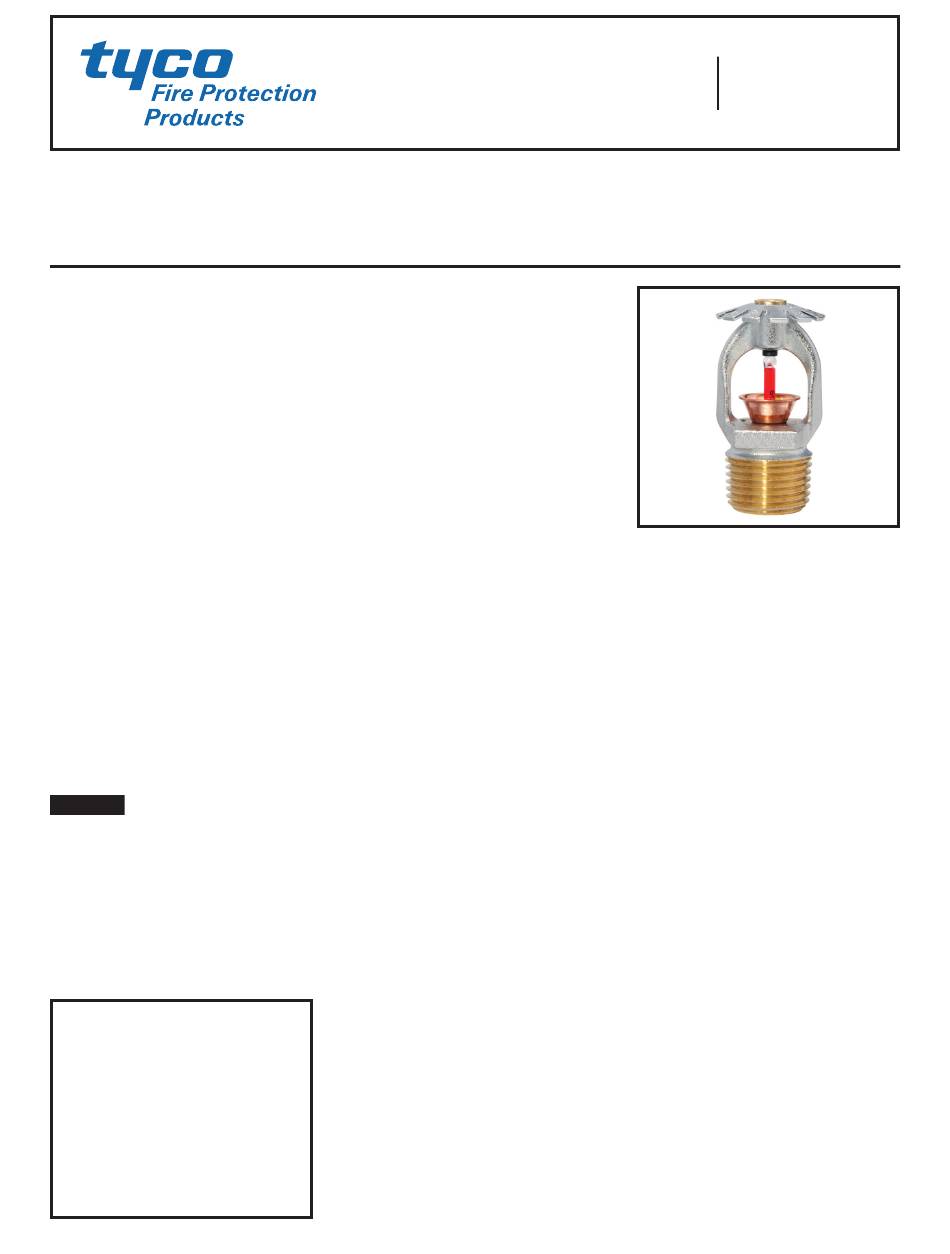

Tyco TY-FRB Series Manual

Series TY-FRB – 5.6 K-factor
Conventional (Old Style) Sprinklers
Quick Response
General
Description

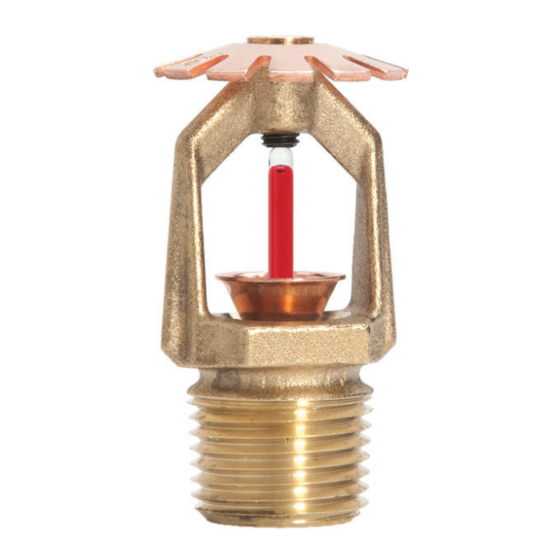

The TYCO Series TY-FRB, 5.6 K-fac-
tor, Conventional Sprinklers, Quick
Response described in this technical
data sheet are quick response, stan-
dard coverage, decorative 3 mm glass
bulb type spray sprinklers. These sprin-
klers are intended to be installed either
pendent or upright, and in either posi-
tion, they produce a spherical water
discharge pattern with approximately
50% of the discharge directed upwards
and approximately 50% of the dis-
charge directed downwards.
Conventional sprinklers are gener-
ally used with Ordinary and Extra High
Hazard Class Systems, as defined by
the automatic sprinkler system instal-
lation rules of the country and author-
ity having jurisdiction. The National Fire
Protection Association (NFPA) permits
the use of "Old Style Sprinklers" where
special construction features require a
unique water distribution; for the pro-
tection of fur vaults; or, the replace-
ment of similar sprinklers that had been
installed prior to 1955.
NOTICE
The Series TY-FRB Sprinklers de-
scribed herein must be installed and
maintained in compliance with this doc-
ument, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the stan-
dards of any other authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently dam-
age a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers (SINs)
TY363
TY3630 (LPCB Approved only)
Technical
Data

Approvals

UL and C-UL Listed
VdS Approved
LPCB Approved (TY3630 only)
Sprinklers with Polyester Finish are UL
and C-UL Listed as Corrosion-Resis-
tant Sprinklers.

Maximum Working Pressure

175 psi (12,1 bar)

Discharge Coefficient

K=5.6 gpm/psi 1/2 (80,6 lpm/bar

Temperature Ratings

135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)

Finishes

Sprinkler: Refer to Table A.

Physical Characteristics

Frame ....................................................... Bronze
Button ............................................ Brass/Copper
Sealing Assembly ..........................Stainless Steel
Bulb ............................................................ Glass
Compression Screw .................................. Bronze
Deflector .................................................... Bronze
FEBRUARY 2015
Worldwide
www.tyco-fire.com
Contacts

Operation

The glass bulb contains a fluid which
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and water to flow.
Design
Criteria
The TYCO Series TY-FRB, 5.6 K-fac-
tor, Conventional Sprinklers, Quick
Response are intended for fire protec-
1/2 )
tion systems designed in accordance
with the standard installation rules rec-
ognized by the applicable Listing or
Approval agency (e.g., UL Listing is
based on NFPA 13 requirements). The
Series TY-FRB Conventional Sprinklers
are only for non-recessed applications.
w/TEFLON
TFP667
