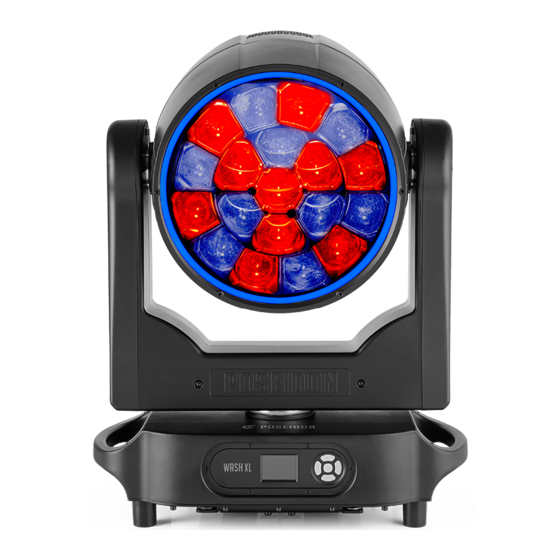

Summary of Contents for CLF POSEIDON Wash XL

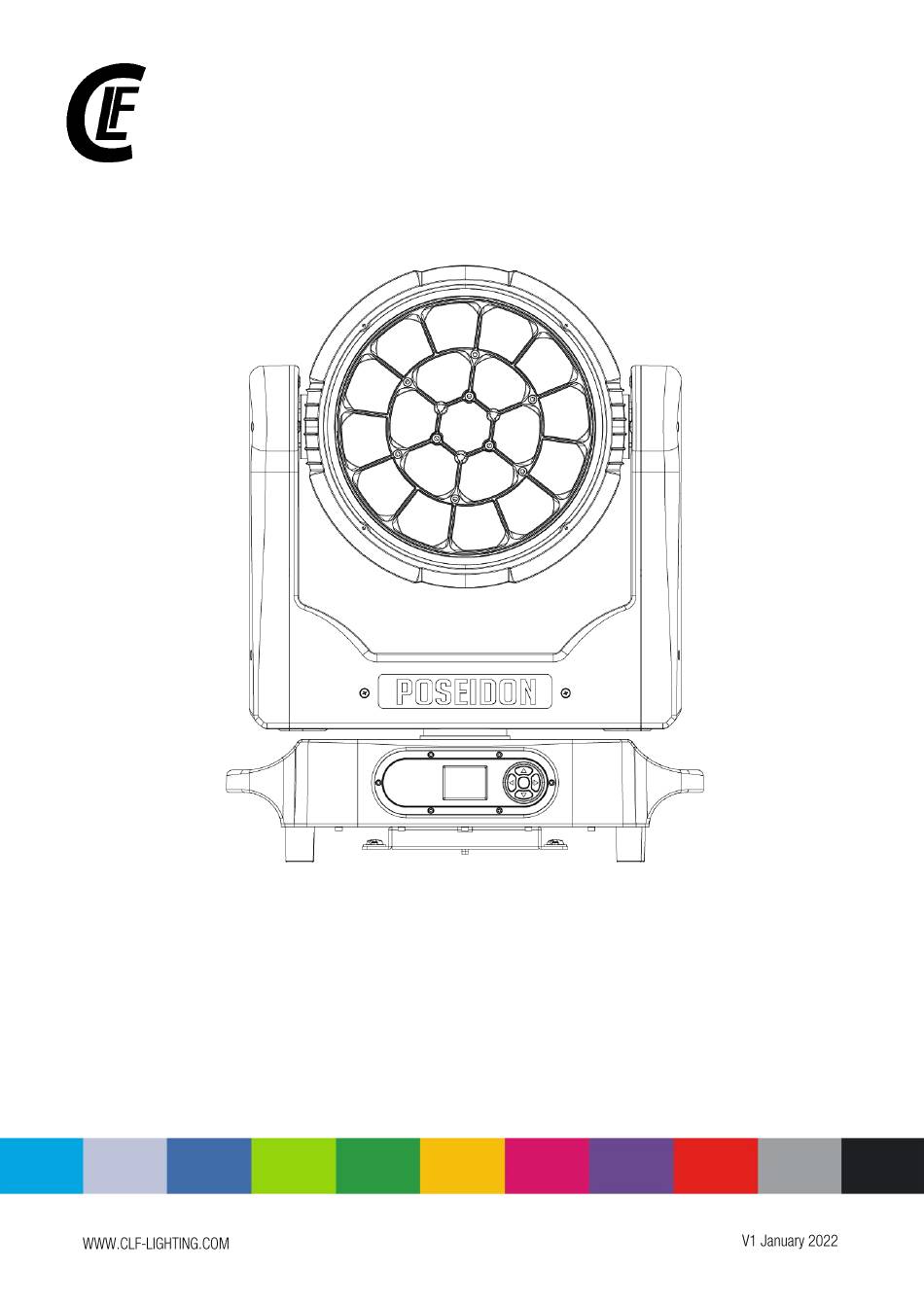

  • Page 1 POSEIDON Wash XL manual...

  • Page 2: Table Of Contents

    Table of contents Dimensions ............................3 Safety Instruction ..........................4 Fixture overview ........................... 6 Introduction ............................7 AC POWER ............................7 Power voltage............................ 7 Power cables ............................. 8 Daisy-chain power to other devices ....................8 Data link ............................... 8 Tips for reliable data transmission ..................... 8 Physical installation ..........................

  • Page 3: Dimensions

    Dimensions in millimeters...

  • Page 4: Safety Instruction

    Safety Instruction WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: WARNING! DANGER! WARNING! WARNING! DANGER! WARNING! Wear Hazardous voltage.
  • Page 5 PROTECTION FROM BURNS AND FIRE • The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the fixture to cool for at least 5 minutes before handling. • Keep all combustible materials (e.g. fabric, wood, paper) at least 1 metres away from the fixture. •...

  • Page 6: Fixture Overview

    Fixture overview...

  • Page 7: Introduction

    Introduction powerful outdoor Wash ▪ ▪ ▪ ▪ ▪ Using for the first time Warning! Read “Safety Information” before installing, powering, operating or servicing the fixture. Before applying power to the fixture: Check that the local AC mains power source is within the power voltage and frequency ranges of the fixture See “Power cables and power plug”.

  • Page 8: Power Cables

    Power cables Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum.

  • Page 9: Physical Installation

    Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! Always attach an approved safety cable to one of the safety cable attachment points on the base. Do not illuminate surfaces within 1 meters of the fixture.

  • Page 10: Outdoor Ip-Rated Fixtures

    Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side.

  • Page 11: Setup

    Setup Warning! Read “Safety Information” before installing, powering, operating the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to adjust the DMX address, fixture settings (personality), service utilities. See “Onboard control menus” for a complete list of menus and commands. Using the control buttons: •...

  • Page 12: Onboard Control Menus

    Onboard control menus Main Menu Menu level 1 Menu level 2 Menu level 3 Menu level 4 Address Wire priority DMX signal mode Wireless/Ethernet DMX Settings Control Protocol ArtNet sACN Ethernet IP address This menu is visible when optional Mask address ArtNet module is inserted ArtNet Sub net Address ArtNet Universe Address...
  • Page 13 15. EffectSP 16. LED Fade 17. Back Color DMX Live 18. Back Dimmer 19. Red Information 20. Green 21. Blue 22. White 23. LED Ring Dimmer 24. LED ring RED 25. LED ring GREEN 26. LED ring BLUE 27. LED ring Effect Macro 28.
  • Page 14 Backlight Always On Auto Off Display Rotate Normal Rotate 180° Backlight Blink Pan/Tilt EMS 1. Pan 2. Pan Fine 3. Tilt 4. Tilt Fine 5. Function 6. Zoom 7. Zoom ROTA 8. Dimmer 9. Dimmer Fine 10. Shutter 11. Macro 12.

  • Page 15: Dmx Protocol 28Ch

    DMX protocol 28ch Channel Function Value Function Remark 0-225 Pan Fine 0-225 Pan Fine Tilt 0-225 Tilt Tilt Fine 0-10 Tilt Fine 0-10 No Function 11-15 DMX Input 16-20 Wireless / ArtNet Input 21-25 W-DMX / ArtNet Reset 26-30 Zoom Reset 31-40 P / T Reset 41-50...
  • Page 16 Channel Function Value Function Remark LEE 090 Dark Yellow Green LEE 101 Yellow LEE 103 Straw LEE 104 Deep Amber LEE 105 Orange LEE 106 Primary Red LEE 107 Light Rose LEE 108 English Rose LEE 109 Light Salmon LEE 110 Middle Rose LEE 111 Dark Pink LEE 113 Magenta LEE 115 Peacock Blue...
  • Page 17 Channel Function Value Function Remark LEE 219 LEE Fluorescent Green LEE 230 Super Correction LCT Yellow LEE 232 Super Correction W.F. Green LEE 236 HMI (to Tungsten) LEE 237 CID (to Tungsten) LEE 238 CSI (to Tungsten) LEE 241 LEE Fluorescent 5700 Kelvin LEE 242 LEE Fluorescent 4300 Kelvin LEE 243 LEE Fluorescent 3600 Kelvin LEE 244 LEE Plus Green...
  • Page 18 Channel Function Value Function Remark LEE 742 Bram Brown LEE 744 Dirty White LEE 747 Easy White LEE 748 Seedy Pink LEE 763 Wheat LEE 764 Sun Colour Straw LEE 765 LEE Yellow LEE 767 Oklahoma Yellow LEE 768 Egg Yolk Yellow LEE 770 Burnt Yellow LEE 777 Rust LEE 778 Millennium Gold...
  • Page 19 DMX protocol 47ch Channel Function Value Function Remark 0-225 Pan Fine 0-225 Pan Fine Tilt 0-225 Tilt Tilt Fine 0-10 Tilt Fine 0-10 No Function 11-15 DMX Input 16-20 Wireless / ArtNet Input 21-25 W-DMX / ArtNet Reset 26-30 Zoom Reset 31-40 P/T Reset 41-50...
  • Page 20 Channel Function Value Function Remark LEE 089 Moss Green LEE 090 Dark Yellow Green LEE 101 Yellow LEE 103 Straw LEE 104 Deep Amber LEE 105 Orange LEE 106 Primary Red LEE 107 Light Rose LEE 108 English Rose LEE 109 Light Salmon LEE 110 Middle Rose LEE 111 Dark Pink LEE 113 Magenta...
  • Page 21 Channel Function Value Function Remark LEE 213 White Flame Green LEE 219 LEE Fluorescent Green LEE 230 Super Correction LCT Yellow LEE 232 Super Correction W.F. Green LEE 236 HMI (to Tungsten) LEE 237 CID (to Tungsten) LEE 238 CSI (to Tungsten) LEE 241 LEE Fluorescent 5700 Kelvin LEE 242 LEE Fluorescent 4300 Kelvin LEE 243 LEE Fluorescent 3600 Kelvin...
  • Page 22 Channel Function Value Function Remark LEE 738 JAS Green LEE 742 Bram Brown LEE 744 Dirty White LEE 747 Easy White LEE 748 Seedy Pink LEE 763 Wheat LEE 764 Sun Colour Straw LEE 765 LEE Yellow LEE 767 Oklahoma Yellow LEE 768 Egg Yolk Yellow LEE 770 Burnt Yellow LEE 777 Rust...
  • Page 23 DMX protocol 100ch Channel Function Value Function Remark 0-225 Pan Fine 0-225 Pan Fine Tilt 0-225 Tilt Tilt Fine 0-10 Tilt Fine 0-10 No Function 11-15 DMX Input 16-20 Wireless / ArtNet Input 21-25 W-DMX / ArtNet Reset 26-30 Zoom Reset 31-40 P/T Reset 41-50...
  • Page 24 Channel Function Value Function Remark LEE 089 Moss Green LEE 090 Dark Yellow Green LEE 101 Yellow LEE 103 Straw LEE 104 Deep Amber LEE 105 Orange LEE 106 Primary Red LEE 107 Light Rose LEE 108 English Rose LEE 109 Light Salmon LEE 110 Middle Rose LEE 111 Dark Pink LEE 113 Magenta...
  • Page 25 Channel Function Value Function Remark LEE 213 White Flame Green LEE 219 LEE Fluorescent Green LEE 230 Super Correction LCT Yellow LEE 232 Super Correction W.F. Green LEE 236 HMI (to Tungsten) LEE 237 CID (to Tungsten) LEE 238 CSI (to Tungsten) LEE 241 LEE Fluorescent 5700 Kelvin LEE 242 LEE Fluorescent 4300 Kelvin LEE 243 LEE Fluorescent 3600 Kelvin...
  • Page 26 Channel Function Value Function Remark LEE 738 JAS Green LEE 742 Bram Brown LEE 744 Dirty White LEE 747 Easy White LEE 748 Seedy Pink LEE 763 Wheat LEE 764 Sun Colour Straw LEE 765 LEE Yellow LEE 767 Oklahoma Yellow LEE 768 Egg Yolk Yellow LEE 770 Burnt Yellow LEE 777 Rust...
  • Page 27 Channel Function Value Function Remark 0-225 Red-12 0-225 Green-12 0-225 Blue-12 0-225 White-12 0-225 Red-13 0-225 Green-13 0-225 Blue-13 0-225 White-13 0-225 Red-14 0-225 Green-14 0-225 Blue-14 0-225 White-14 0-225 Red-15 0-225 Green-15 0-225 Blue-15 0-225 White-15 0-225 Red-16 0-225 Green-16 0-225 Blue-16...
  • Page 28 DMX protocol 41ch Channel Function Value Function Remark 0-225 0-225 Red Fine 0-225 Green 0-225 Green Fine 0-225 Blue 0-225 Blue Fine 0-225 White 0-225 White fine 0-225 Linear CTO Macro No Function LEE 002 Rose Pink LEE 004 Medium Bastard Amber LEE 007 Pale Yellow LEE 008 Dark Salmon LEE 009 Pale Amber Gold...
  • Page 29 Channel Function Value Function Remark LEE 152 Pale Gold LEE 153 Pale Salmon LEE 154 Pale Rose LEE 156 Chocolate LEE 157 Pink LEE 158 Deep Orange LEE 161 Slate Blue LEE 162 Bastard Amber LEE 164 Flame Red LEE 165 Daylight Blue LEE 170 Deep Lavender LEE 172 Lagoon Blue LEE 174 Dark Steel Blue...
  • Page 30 Channel Function Value Function Remark LEE 504 Waterfront Green LEE 505 Sally Green LEE 506 Marlene LEE 507 Madge LEE 508 Midnight Maya LEE 525 Argent Blue LEE 550 ALD Gold LEE 604 Full CT Eight Five LEE 650 Industry Sodium LEE 651 HI Sodium LEE 652 Urban Sodium LEE 700 Perfect Lavender...
  • Page 31 Channel Function Value Function Remark 61-65 LED MINIMAL FAN 66-70 LED SILENT FAN 71-75 RGBW colour mixing mode 76-80 CMY colour mixing mode 81-85 DISPLAY ON 86-90 DISPLAY OFF 91-95 CALIBRATION FACTORY 96-102 CALIBRATION MANUAL 103-105 Enable pixel map 106-110 Disable pixel map 111-115 1800HZ...

  • Page 32: Photometrics

    photometrics...

  • Page 33: Circuit Connection Diagram

    circuit connection diagram...

  • Page 34: Specifications

    Specifications Power Input voltage 100-240VAC, 50/60HZ Standby power Total power consumption 800W, PF 0.985 Typical current 3,33A Cos φ Power plug type Seetronic powercon TRUE 1 Source LED color RGBW LED color temperature 2500 ~ 10.000K Quantity of LED 19 PCS Dimming frequency 600-10.000HZ Optical...
  • Page 35 Housing Safety attachment point Bottom Lock Tilt lock Physical Net product weight 27,5Kg Length 488MM Width 331MM Heigth 609MM Accessories Included items Manual, Power cable, Safety Optional accessories Omega bracket Approvals Approved certifications CE and RoHs Information Article number 160035 EAN code 8719189163247...

  • Page 36: Positioning

    Positioning...

  • Page 37: Layout

    Layout...
  • Page 38 POSEIDON Wash XL...
