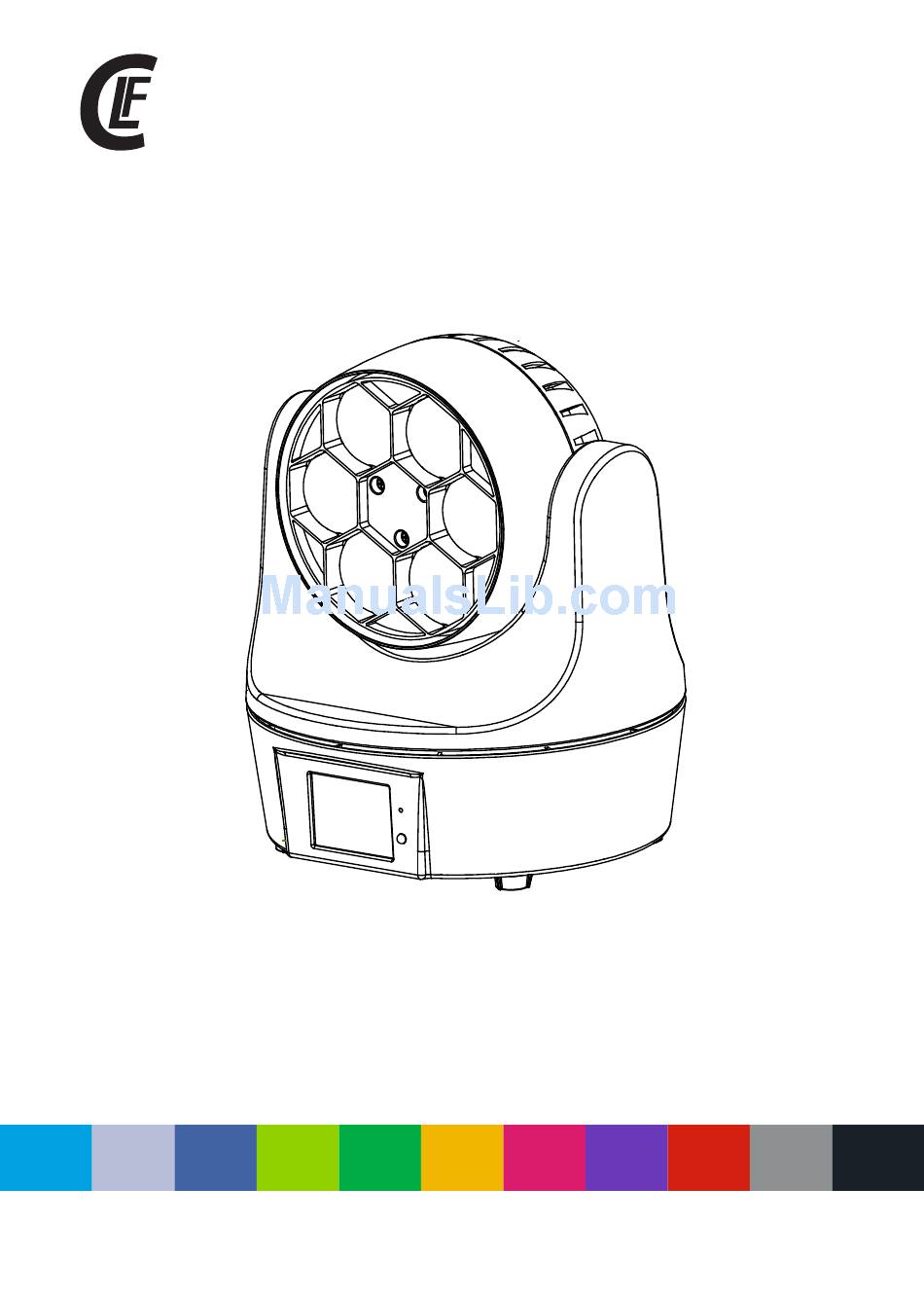

- Page 1 6 WWW.CLF-LIGHTING.COM V1.0 NOVEMBER 2017...
-
Page 2: Table Of Contents
CONTENTS Safety instructions Fixture overview Dimensions Photometric data Physical installation Mounting Power and signal connection Power connection Control mode Circuit connecting diagrtam Onboard control menu DMX protocol Cleaning and maintenance Specifications WWW.CLF-LIGHTING.COM... -
Page 3: Safety Instructions
Risk of emission. Risk of surface. Do not eyewear. manual. y or death. lethal or severe eye injury. touch. electric shock. Please be aware that damages caused by modifications to the device are not subject to warranty. WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM... -
Page 4: Fixture Overview
WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM... -
Page 5: Photometric Data
Wrong installation can result in injuries. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM... -
Page 6: Mounting
The fixture is operational in any mounting position. Be sure the fixture is kept at least 50cm away from any flammable materials (decoration etc.). When mounted with a clamp, always use and install the supplied safety cable as a safety measure to prevent accidents. Quicklock WWW.CLF-LIGHTING.COM... -
Page 7: Power And Signal Connection
DMX signal distributor when the distance of the lights is more a DMX signal distributor when the distance of the lights is more then 15 meter, to prevent signal loss. then 15 meter, to prevent signal loss. WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM... -
Page 8: Power Connection
Do not daisychain more then 6 fixtures. working normally. WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM 10.0... -
Page 9: Control Mode
8. Macro color 13. Rota lens 4. Red 9. Pan 14. Rota speed 4. Red 9. Pan 14. Rota speed 5. Green 10. Pan fine 15. Fixture control 5. Green 15. Fixture control circuit connection diagram circuit connection diagram WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM 17.0... -
Page 10: Onboard Control Menu
6. Blue 7. White Info 8. Macro color DMX live 9. Pan 0 - 255 10. Pan fine 11. Tilt 12. Tilt fine 13. Rota lens 14. Rota sp 15. Fixturecontrol 16. Calibration 17. Slave ID LED_XY_SOFT:V2.00 Version info LED_DPY_SOFT:V4.00 WWW.CLF-LIGHTING.COM... - Page 11 Personality Close Program on/off Open Pan start Pan end Set P/T angle Tilt start Tilt end Display sleep Light always 2 minutes 4 minutes 6 minutes Display Display intensity 10 - 100 Display rotation Rotate 180 Normal TFT calibration WWW.CLF-LIGHTING.COM...
- Page 12 7. White 8. Macro color Program Edit program Edit program 1 0 - 255 9. Pan 10. Pan fine 11. Tilt 12. Tilt fine 13. Rota lens 14. Rota sp 15. Fixturecontrol 16. Calibration 17. Slave ID Save scene WWW.CLF-LIGHTING.COM...
- Page 13 Same as ‘Set program 1‘ Set program 6 Set program 7 Set program 8 Running program Fixed scene Scene 001 - 100 Error list ±5.00% Adjust Tilt ±5.00% Service Rotatable lens ±5.00% Default Factory Adjust default Firmware update **** WWW.CLF-LIGHTING.COM...
-
Page 14: Dmx Protocol
15. Fixture control 30 - 34 12 - 13 35 - 239 14 - 93 240 - 244 94 - 95 245 - 249 96 - 97 250 - 255 98 - 100 16. Calibration 0 - 255 0 - 100 WWW.CLF-LIGHTING.COM... - Page 15 ID is (6*n) + 5 effective, (n=0 - 9) 249 - 251 5, 11, 17, 23, 29 … 59 98 - 99 ID is (6*n) + 6 effective, (n=0 - 9) 252 - 254 6, 12, 18, 24, 30 … 60 All ID’s are valid WWW.CLF-LIGHTING.COM...
-
Page 16: Cleaning And Maintenance
Standard CH11 & extended CH17 Display menu 2.4 inch TFT touch screen Software Upgrade by XLR cable Fixture size 226 x 226 x 286 mm Netto weight 3,8 kg Fixture size 226 x 268mm Ambient temperature 0°C - 38°C WWW.CLF-LIGHTING.COM... - Page 17 6 CLFLIGHTING WWW.CLF-LIGHTING.COM...
