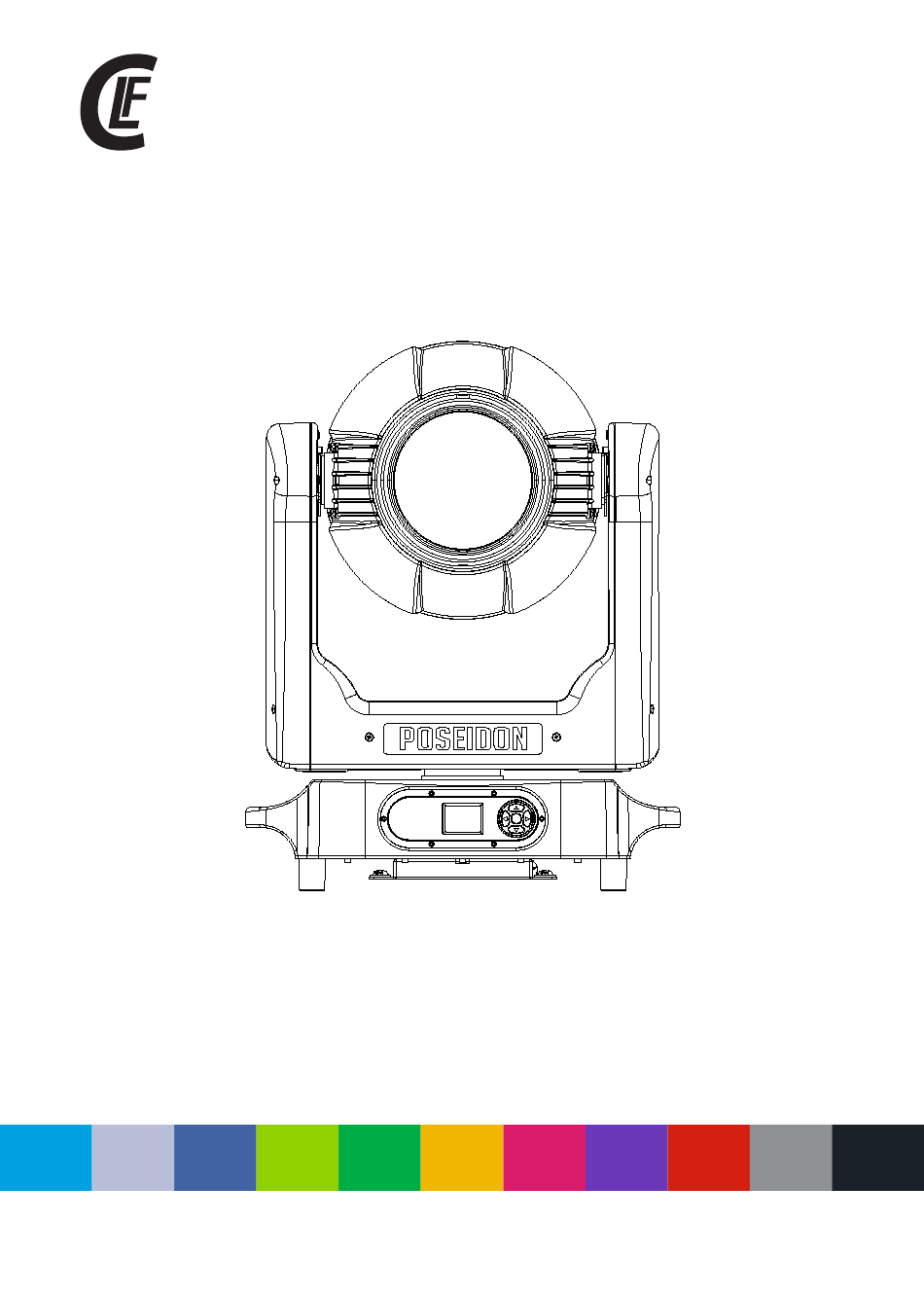

- Page 1 POSEIDON manual WWW.CLF-LIGHTING.COM V1.0 SEPTEMBER 2019...
-
Page 2: Table Of Contents
Fastening the fixture to a flat surface Outdoor IP-rated fixtures Condensation / moisture inside housing Fixtures temperature specification Setup Control panel and menu navigation DMX address setting Onboard control menus DMX protocol Gobo overview Photometrics Circuit connection diagram Specifications WWW.CLF-LIGHTING.COM... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters 616,22 180,22 488,22 725,5 525,39 460,3 488,23 311,73 WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Refer any service operation not described in this manual to a qualified technician. • Socket outlets used to supply fixture fixtures with power or external power switches must be located near the fixtures and easily accessible so that the fixtures can easily be disconnected from power. WWW.CLF-LIGHTING.COM... - Page 5 Check that all external covers and rigging hardware are securely fastened. • Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. • Do not operate the fixture with missing or damaged covers, shields or any optical component. WWW.CLF-LIGHTING.COM...
-
Page 6: Fixture Overview
Fixture overview WIRELESS ac MAINS power input 5P DMX OUTPUT ac MAINS power output 5P DMX INPUT WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Warning! Check that the voltage range specified on the fixture serial number label matches the local AC mains power voltage before applying power to the fixture. The fixtures accepts AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to the fixture at any other voltage than specified. WWW.CLF-LIGHTING.COM... -
Page 8: Power Cables
1. Connect the DMX data output from the controller to the 5-pin XLR connector of the nearest fixture. 2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and continue connecting fixtures output to input. WWW.CLF-LIGHTING.COM... -
Page 9: Physical Installation
(see “Fixture overview”). Do not use any other part of the fixture as a safety cable attachment point. WWW.CLF-LIGHTING.COM... -
Page 10: Outdoor Ip-Rated Fixtures
Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance. -
Page 11: Setup
DMX: Display backlight goes off and shows ‘DMX: V‘. • The fixture is fully RDM ready. So when you are using a RDM ready console you can address the unit and read out its complete status. For RDM functions please refer to the ANSI/ESTA E1.20-2006 standard WWW.CLF-LIGHTING.COM... -
Page 12: Onboard Control Menus
3. SP-Fan2: **,*% (Backside fans) 4. SP-Fan1: ****RPM Fan information 5. SP-Fan2: ****RPM 1. Power: **,*V 2. SP-Fan1: **,*% In fan 3. SP-Fan2: **,*% (Innerside fans) 4. SP-Fan1: ****RPM 5. SP-Fan2: ****RPM Return (ESC) RDM UID Shows RDM information WWW.CLF-LIGHTING.COM... - Page 13 Unlink transmitter Wireless options Not found sender Not found receiver (menu only available Personal Connected to sender when wireless Wireless status No DMX receiving board is installed) Connected to the sender DMX receiving Pan invert P/T invert Tilt invert Return(ESC) WWW.CLF-LIGHTING.COM...
- Page 14 11. Frost *** Manual Control 12. Focus *** 13. Pan *** 14. Pan Fine *** 15. Tilt *** 16. Tilt Fine *** 17. Functions *** Return(ESC) Reset all Pan/Tilt reset System reset Head motor reset Return (ESC) Return (ESC) WWW.CLF-LIGHTING.COM...
- Page 15 Reset timers (4280) password Clear logged temperature (3255) password Factory Developer Firmware update (7273) password Return (ESC) Return (ESC) Lamp Test P/T STEP *** Test effect STEP *** Test Test all STEP *** Return (ESC) Normal Rotate display Rotate 180 WWW.CLF-LIGHTING.COM...
-
Page 16: Dmx Protocol
CTO 190/CTO1 107-110 CTO 190 + CTB 8000/CTO1 + CTB 111-115 CTB 8000/CTB 116-119 CTB 8000 + Blue/CTB 120-123 Blue 124-127 Blue + White 128-191 Forwards rainbow effect from fast to slow 192-255 Backwards rainbow effect from slow to fast WWW.CLF-LIGHTING.COM... - Page 17 Gobo11 48-51 Gobo12 52-55 Gobo13 56-59 Gobo14 60-69 Gobo1 70-79 Gobo2 80-89 Gobo3 90-99 Gobo4 100-109 Gobo5 110-119 Gobo6 Shaking gobos from slow to 120-129 Gobo7 fast 130-139 Gobo8 140-149 Gobo9 150-159 Gobo10 160-169 Gobo11 170-179 Gobo12 180-189 Gobo13 WWW.CLF-LIGHTING.COM...
- Page 18 Tilt movement by 265°(128=default) Tilt Fine 0-255 Fine control of tilt movement(0=default) 0-25 Unused range Cyan/Magenta/Yellow/Shutter/Strobe/Colour/Gobo/Prism/ 26-30 Frost/Focus reset (head motor reset) 31-35 Pan/Tilt reset 36-40 System reset Function 41-180 Unused range 181-200 Lamp Off 201-220 Unused range 221-255 Lamp On WWW.CLF-LIGHTING.COM...
-
Page 19: Gobo Overview
Color wheel Static gobo wheel CMY color mixing system Prism wheel 1 Prism wheel 2 WWW.CLF-LIGHTING.COM... -
Page 20: Photometrics
Poseidon distance, spot diameter and illumination diagram S t a n d a r d ( 1 . 8°) L a m p T o t a l O u t p u t : 2 4 0 0 0 l u m e n s... -
Page 21: Circuit Connection Diagram
WWW.CLF-LIGHTING.COM... -
Page 22: Specifications
Nominal total power consumption (at nominal voltage 650W 230V) Typical current (at nominal voltage 230V) 2.83A Cos φ Power plug type Seetronic Powercon TRUE Source Lamp Ushio 450W (lampkit CLF-53-001) Expected Lifetime 1500 hours Color temperature 7300K Optical Beam angle Beam Projection 1,8° Photometric Output @10M... - Page 23 Bottom Lock Tilt lock Physical Net product weight 35Kg Dimensions 725,5x488x312mm (l x w x h) Accessories Included items Manual, Power cable, DMX cable, safety cable Approvals Approved certifications CE and RoHs Information Article number 160030 EAN CODE 8719189163995 WWW.CLF-LIGHTING.COM...
- Page 24 CLFLIGHTING WWW.CLF-LIGHTING.COM...
