- Page 1 POSEIDON beam manual WWW.CLF-LIGHTING.COM V1.1 DECEMBER 2020...
-
Page 2: Table Of Contents
Physical installation Fastening the fixture to a flat surface Outdoor IP-rated fixtures Condensation/moisture inside housing Fixtures temperature specification Setup Control panel and menu navigation DMX address setting Onboard control menu DMX protocol Gobo overview Photometrics Circuit connection diagram Specifications WWW.CLF-LIGHTING.COM... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters 616,22 180,22 488,22 725,5 525,39 460,3 488,23 311,73 WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Refer any service operation not described in this manual to a qualified technician. • Socket outlets used to supply fixture fixtures with power or external power switches must be located near the fixtures and easily accessible so that the fixtures can easily be disconnected from power. WWW.CLF-LIGHTING.COM... - Page 5 Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. • Do not operate the fixture with missing or damaged covers, shields or any optical component. lamp life • Lamp life can vary, caused by many factors. For example external temperature, humidity, lamp strikes, dimming or power/voltage. WWW.CLF-LIGHTING.COM...
-
Page 6: Fixture Overview

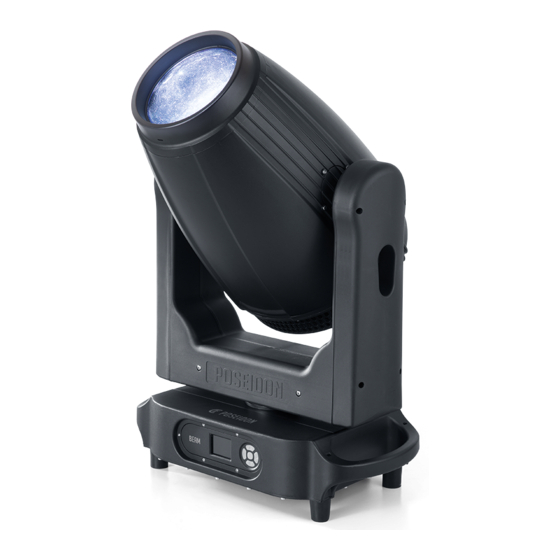

Fixture overview WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Warning! Check that the voltage range specified on the fixture serial number label matches the local AC mains power voltage before applying power to the fixture. The fixtures accepts AC mains power at 100-240V nominal, 50/60 Hz. Do not apply AC mains power to the fixture at any other voltage than specified. WWW.CLF-LIGHTING.COM... -
Page 8: Power Cables
1. Connect the DMX data output from the controller to the 5-pin XLR connector of the nearest fixture. 2. Connect the DMX output of the first fixture to the DMX input of the next fixture and continue connecting fixtures. WWW.CLF-LIGHTING.COM... -
Page 9: Physical Installation
Fasten the fixture securely. Do not place it on unstable surfaces. Always attach a securely anchored safety cable to the safety cable attachment point. Block access under the construction area. Work from a stable platform, hang the fixture on a truss with the arrow on the base towards the area to be illuminated. Tighten the rigging clamp. WWW.CLF-LIGHTING.COM... -
Page 10: Outdoor Ip-Rated Fixtures
Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance. -
Page 11: Setup
The DMX address can be configured by using the DMX ADDRESS menu in the control panel. • NO DMX: Display flashes and shows at ‘DMX: X‘. • DMX: Display backlight turns off and shows ‘DMX: V‘. • The fixture is fully RDM ready. For RDM functions please refer to the ANSI/ESTA E1.20-2006 standard. WWW.CLF-LIGHTING.COM... -
Page 12: Onboard Control Menu
Out fan 3. SP-Fan 2: **.*% Fan information 4. SP-Fan 1: ****R 5. SP-Fan 2: ****R 1. Power: **.*V 2. SP-Fan 1: **.*% In fan 3. SP-Fan 2: **.*% 4. SP-Fan 1: ****R 5. SP-Fan 2: ****R Return (ESC) WWW.CLF-LIGHTING.COM... - Page 13 12. Focus *** 13. Pan *** 14. Pan Fine*** 15. Tilt *** Information DMX Live 16. Tilt Fine *** 17. Functions *** XY Board: V*.** Color Board: V*.** Zoom Board: V*.** System version Prism Board: V*.** Display Board: V*.** Return (ESC) WWW.CLF-LIGHTING.COM...
- Page 14 Return (ESC) 1. Cyan *** 2. Magenta*** 3. Yellow *** 4. Color *** 5. Shutter *** Manual control Channel control 6. Dimmer *** 7. Gobo *** 8. Prism *** 9. Prism Rot *** 10. Prism Macro *** 11. Frost *** WWW.CLF-LIGHTING.COM...
- Page 15 3. Yellow *** 4. Color *** 5. Shutter *** 6. Dimmer *** Program editor Editor Scene edit 7. Gobo *** 8. Prism *** 9. Prism Rot *** 10. Prism Macro 11. Frost 12. Focus 13. Pan 14. Pan Fine 15. Tilt WWW.CLF-LIGHTING.COM...
- Page 16 : *** SEC Fade time Save the time Return (ESC) Static Scene *** Save the time Copy scene Return (ESC) Static Scene *** Paste Scene *** Paste scene Return (ESC) Static Scene *** Clear Scene Clear scene Return (ESC) Return (ESC) WWW.CLF-LIGHTING.COM...
- Page 17 Reset power hours Reset timers Reset lamp hours Reset lamp strikes Service Return (ESC) Pan 000-255 Tilt 000-255 Dimmer 1 000-255 Dimmer 2 000-255 Focus 000-255 Calibration Color 000-255 Gobo 000-255 Prism 1 000-255 Prism 2 000-255 Prism Rot 000-255 WWW.CLF-LIGHTING.COM...
- Page 18 Total lamp Str Return (ESC) Clear logged temeperature Password: 3255 Factory Firmware update Password: 7273 Return (ESC) Return (ESC) Lamp Test P/T STEP *** Test effect STEP *** Test Test all STEP *** Return (ESC) Normal Rotate Rotate 180 display WWW.CLF-LIGHTING.COM...
-
Page 19: Dmx Protocol
CTO 190/CTO1 107-110 CTO 190 + CTB 8000/CTO1 + CTB 111-115 CTB 8000/CTB 116-119 CTB 8000 + Blue/CTB 120-123 Blue 124-127 Blue + White 128-191 Forwards rainbow effect from fast to slow 192-255 Backwards rainbow effect from slow to fast WWW.CLF-LIGHTING.COM... - Page 20 Gobo11 48-51 Gobo12 52-55 Gobo13 56-59 Gobo14 60-69 Gobo1 70-79 Gobo2 80-89 Gobo3 90-99 Gobo4 100-109 Gobo5 110-119 Gobo6 Shaking gobos from slow to 120-129 Gobo7 fast 130-139 Gobo8 140-149 Gobo9 150-159 Gobo10 160-169 Gobo11 170-179 Gobo12 180-189 Gobo13 WWW.CLF-LIGHTING.COM...
- Page 21 Tilt movement by 265°(128=default) Tilt Fine 0-255 Fine control of tilt movement(0=default) 0-25 Unused range Cyan/Magenta/Yellow/Shutter/Strobe/Colour/Gobo/Prism/ 26-30 Frost/Focus reset (head motor reset) 31-35 Pan/Tilt reset 36-40 System reset Function 41-180 Unused range 181-200 Lamp Off 201-220 Unused range 221-255 Lamp On WWW.CLF-LIGHTING.COM...
-
Page 22: Gobo Overview
WWW.CLF-LIGHTING.COM... -
Page 23: Photometrics
2 2 . . 7 7 3 3 ( ( 8 8 ' ' 1 1 1 1 " " ) ) D D i i a a m m e e t t e e r r m m ( ( f f t t i i n n ) ) WWW.CLF-LIGHTING.COM... -
Page 24: Circuit Connection Diagram
WWW.CLF-LIGHTING.COM... -
Page 25: Specifications
Total power consumption 650W Typical current 2.83A Cos φ Power plug type Seetronic Powercon TRUE 1 Source Lamp Ushio 400W LL (CLF Poseidon Lamp Kit) Lamp life expectancy 6000 hours Color temperature 7300K Optical Beam angle 1.8° Photometric Output @10M... - Page 26 Safety attachment point Lock Tilt Physical Net product weight 35kg Dimensions 488 x 312 x 726mm (l x w x h) Accessories Included items Manual, Power cable, safety Approvals Approved certifications CE and RoHs Information Article number 160030 EAN CODE 8719189163995 WWW.CLF-LIGHTING.COM...
- Page 27 CLFLIGHTING WWW.CLF-LIGHTING.COM...
