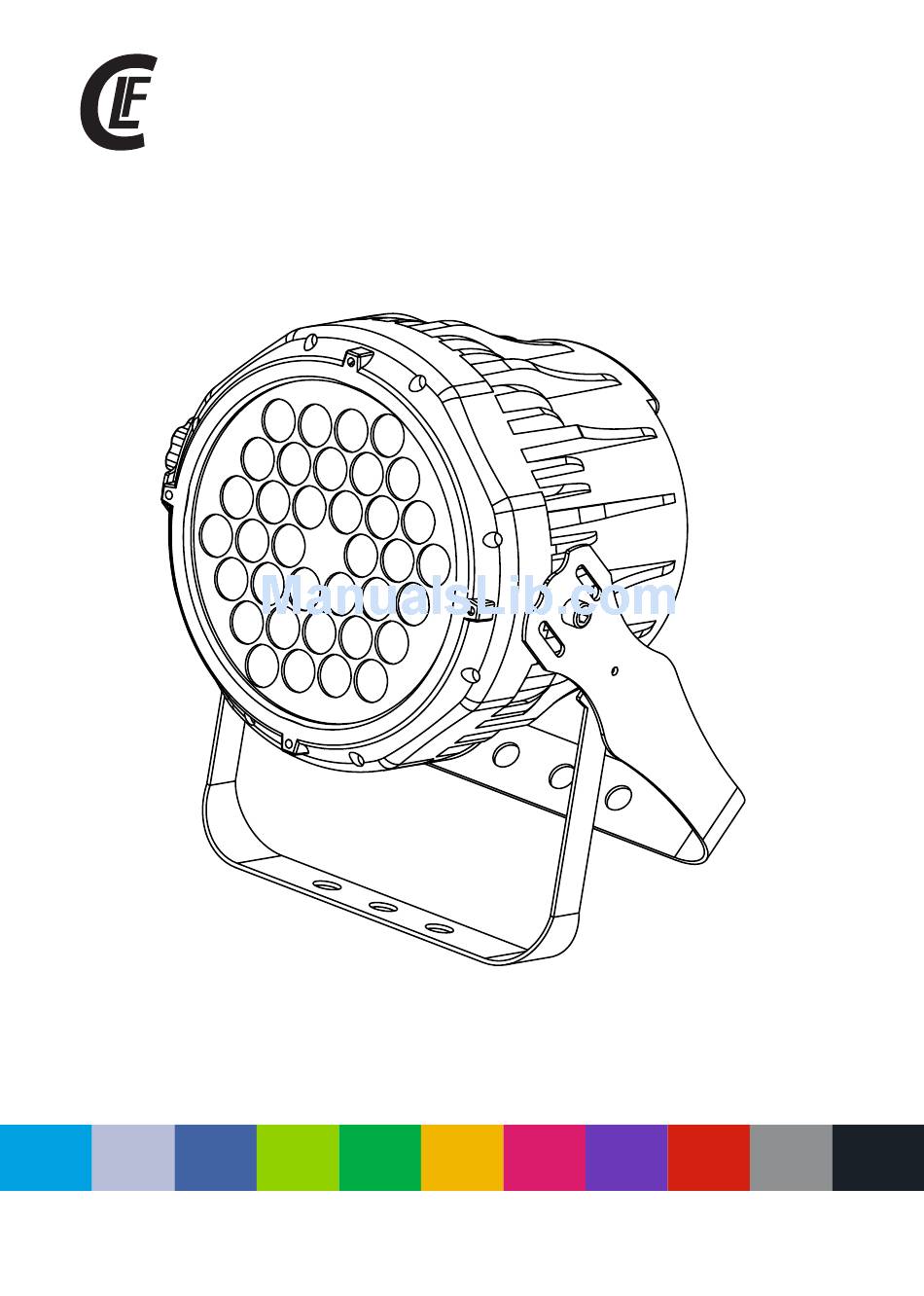

- Page 1 WWW.CLF-LIGHTING.COM V2.0 AUGUST 2017...
-
Page 2: Table Of Contents
Introduction AC power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Setup Control panel and menu navigation DMX address setting Control mode Menu navigation DMX protocols Specifications Blow-out diagram WWW.CLF-LIGHTING.COM... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters BRACKET ADJUSTMENT KNOB WWW.CLF-LIGHTING.COM... -
Page 4: Safety Information
Isolate the fixture from power immediately if the power plug or any seal, cover, cable, or other component is damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs have been completed. WWW.CLF-LIGHTING.COM... - Page 5 • Check that all external covers and rigging hardware are securely fastened. • Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. • Do not operate the fixture with missing or damaged covers, shields or any optical component. WWW.CLF-LIGHTING.COM...
-
Page 6: Fixture Overview
SAFETY POWER OUT POWER IN max 10.7A DMX OUT DMX IN CONTROL BOARD WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
The fixtures accepts AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to the fixture at any other voltage than specified on the fixture’s serial number label. WWW.CLF-LIGHTING.COM... -
Page 8: Power Cables
1. Connect the DMX data output from the controller to the closest fixture’s male 3-pin XLR DMX input connector. 2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and continue connecting fixtures output to input. WWW.CLF-LIGHTING.COM... -
Page 9: Physical Installation
(see “Fixture overview” on page 4). Do not use any other part of the fixture as a safety cable attachment point. WWW.CLF-LIGHTING.COM... -
Page 10: Setup
• If a DMX signal is presented to the fixture, a red dot is shown on the menu screen. Control mode DMX control mode is selected in the control mode [PERS] menu. The fixture has three DMX control modes: Cool white & warm white Dimming Strobe Dimmer Speed WWW.CLF-LIGHTING.COM... -
Page 11: Menu Navigation
DIM 1 / 2 / 3 / 4 dimming curve. Password RESET Reset factory defaults (UP, UP, DOWN, DOWN, ENTER) 1.31 Version number 2800 3000 C000 3200 3400 Preset custom whites, to choose different color temperatures. 4200 4900 W000 5600 5900 WWW.CLF-LIGHTING.COM... -
Page 12: Dmx Protocols
White 7: 5600K 221 - 255 White 8: 5900K 03 CHANNELS VALUE DESCRIPTION 0 - 100% 1. Dimming 000 - 255 2. Cool white 000 - 255 0 - 100% 3. Warm white 000 - 255 0 - 100% WWW.CLF-LIGHTING.COM 10.0... - Page 13 White 7: 5600K 221 - 255 White 8: 5900K 000 - 001 No function 5. Strobe 002 - 255 0 - 20Hz 6. Dimmer speed 000 - 255 Dimmer speed 7. ID 000 - 255 ID address selection WWW.CLF-LIGHTING.COM 11.0...
-
Page 14: Specifications
PF = power factor. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. Thermal Cooling Convection Maximum ambient temperature (Ta max.) 40° C Minimum ambient temperature (Ta min.) 5° C WWW.CLF-LIGHTING.COM 12.0... -
Page 15: Blow-Out Diagram
Blow-out Diagram. 11 12 9 10 Part Number Description CLF-02-019 Front cover ring CLF-02-021 Tempered front glass CLF-02-022 Lens holder CLF-02-039 LED Board CLF-02-037 LED Board radiator CLF-02-024 Power supply CLF-02-038 Power supply support bracket CLF-02-025 LED Driver board... - Page 16 DYNAMIC WHITE PAR CLFLIGHTING WWW.CLF-LIGHTING.COM...
