Summary of Contents for Peak Atlas ESR Series

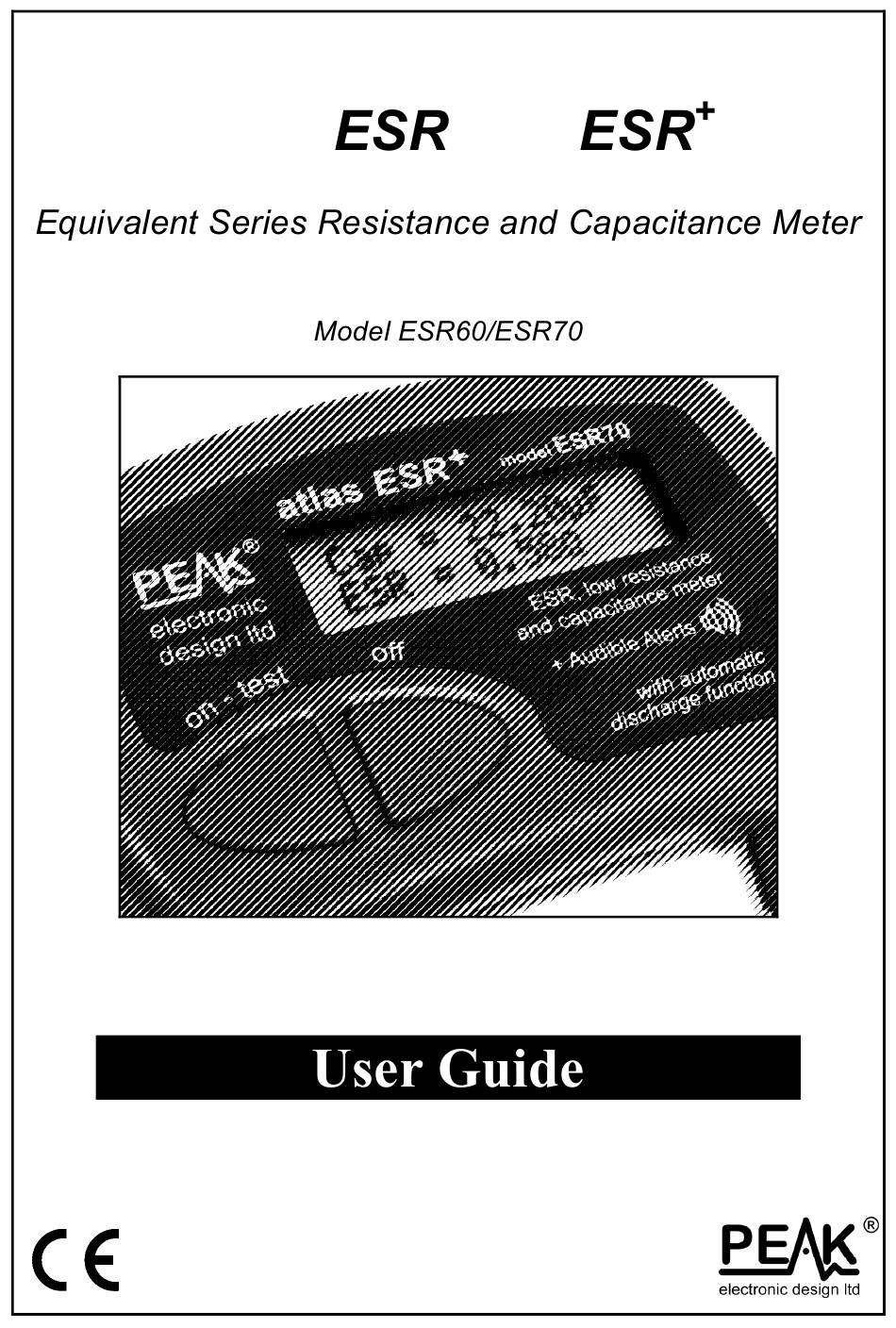

- Page 1 GB60/70'9 Atlas Designed and manufactured with pride in the UK © Peak Electronic Design Limited 2004/2016 In the interests of development, information in this guide is subject to change without notice ' E&OE...
-
Page 2: Table Of Contents
User Guide October 2016 – Rev 9 We understand that you want to use your right now. The unit is ready to go and you should have little need to refer to this user guide, but please make sure that you do at least take a look at the notices on page 4! Introduction .................3 Important Considerations.............4... -
Page 3: Introduction
User Guide October 2016 – Rev 9 Introduction is an advanced instrument designed specifically for the analysis of capacitor equivalent series resistance (in out of circuit). In addition it will, where possible, display the capacitance of the device under test. •... -
Page 4: Important Considerations
User Guide October 2016 – Rev 9 Important Considerations • This instrument must NEVER be connected to powered equipment/components. • It is the user’s responsibility to ensure that any dangerously charged capacitors are safely discharged before connection to the unit. •... -
Page 5: Notes On Esr
User Guide October 2016 – Rev 9 Notes on ESR ESR (Equivalent Series Resistance), as its acronym implies, is the value of resistance that is effectively in series with an ideal capacitor. No capacitor is ideal of course, the detailed equivalent circuit of a typical capacitor is very complex. -
Page 6: Analysing Capacitors
User Guide October 2016 – Rev 9 Analysing Capacitors is designed to analyse capacitor ESR in or out of circuit. The two test probes can be connected to the component any way around. Remember though that in'circuit testing can result in less accurate readings. : To minimise risk of damage to the unit, make sure that the has completed any previous analysis before attaching the test probes to the capacitor. - Page 7 User Guide October 2016 – Rev 9 Analysing Capacitors continued The ESR analysis typically takes under 2 seconds to complete, followed by up to around 10 seconds for the capacitance measurement (depending on the characteristics of the capacitor). As soon as a valid ESR reading has Measuring C...
- Page 8 User Guide October 2016 – Rev 9 Analysing Capacitors continued In the event that ESR exceeds the maximum that can be measured, the display may show: In) ) ) ) Circuit/Leaky Circuit/Leaky Cap = Cap = Cap = Cap = 476.6&F 476.6&F 476.6&F 476.6&F...
- Page 9 User Guide October 2016 – Rev 9 Page 9...
-
Page 10: Typical Values Of Esr
User Guide October 2016 – Rev 9 Typical Values of ESR continued It is not possible to provide a definitive rule for values of ESR that are acceptable for all situations. & The expected value of ESR largely depends on the capacitance value and the voltage rating of the capacitor but also depends on temperature ratings and other factors. -
Page 11: Audible Alerts
User Guide October 2016 – Rev 9 Audible Alerts (Model ESR70 only) The ESR70 unit can produce audible tones to assist the user. The various tones are summarised below: Start Analysis Short Blip End Analysis Short Blip Measured ESR > 40M High'Low “Beep Barp”... -
Page 12: Probe Compensation
User Guide October 2016 – Rev 9 Probe Compensation To ensure good repeatable readings, particularly for low values of ESR, it may be necessary to occasionally perform a simple Probe Compensation procedure. This procedure is easiest to perform with the gold plated croc clips fitted. 1. -
Page 13: Care Of Your
New batteries can be purchased from many retailers and directly from Peak Electronic Design Ltd or an authorised agent. Suitable battery types include 23A, V23A, GP23A, MN21 or a good quality 12V alkaline equivalent as used in many test instruments and automotive remote key fobs. -
Page 14: Appendix A Troubleshooting
Safely discharge discharge the capacitor manually. It is possible that a hardware failure has Display shows occurred, please contact Peak Electronic Self Test Fail Code 2 Design Limited for assistance. will display “In'Circuit/Leaky” if the charge curve is non'linear by more than Display shows 10%. -
Page 15: Appendix B Technical Specifications
October 2016 – Rev 9 Appendix B Technical Specifications All values are at 25°C unless otherwise specified. Peak test current into S/C ±20mA ±22mA Peak test voltage, full scale ESR ±40mV ±44mV Peak test voltage across O/C ±2.5V ±3.0V Capacitance measurement range... -
Page 16: Appendix C - Statutory Information
Please follow your national law when you want to dispose of any electrical or electronic products. , At Peak Electronic Design Ltd we are committed to continual product development and improvement. The specifications of our products are therefore subject to change without notice.
