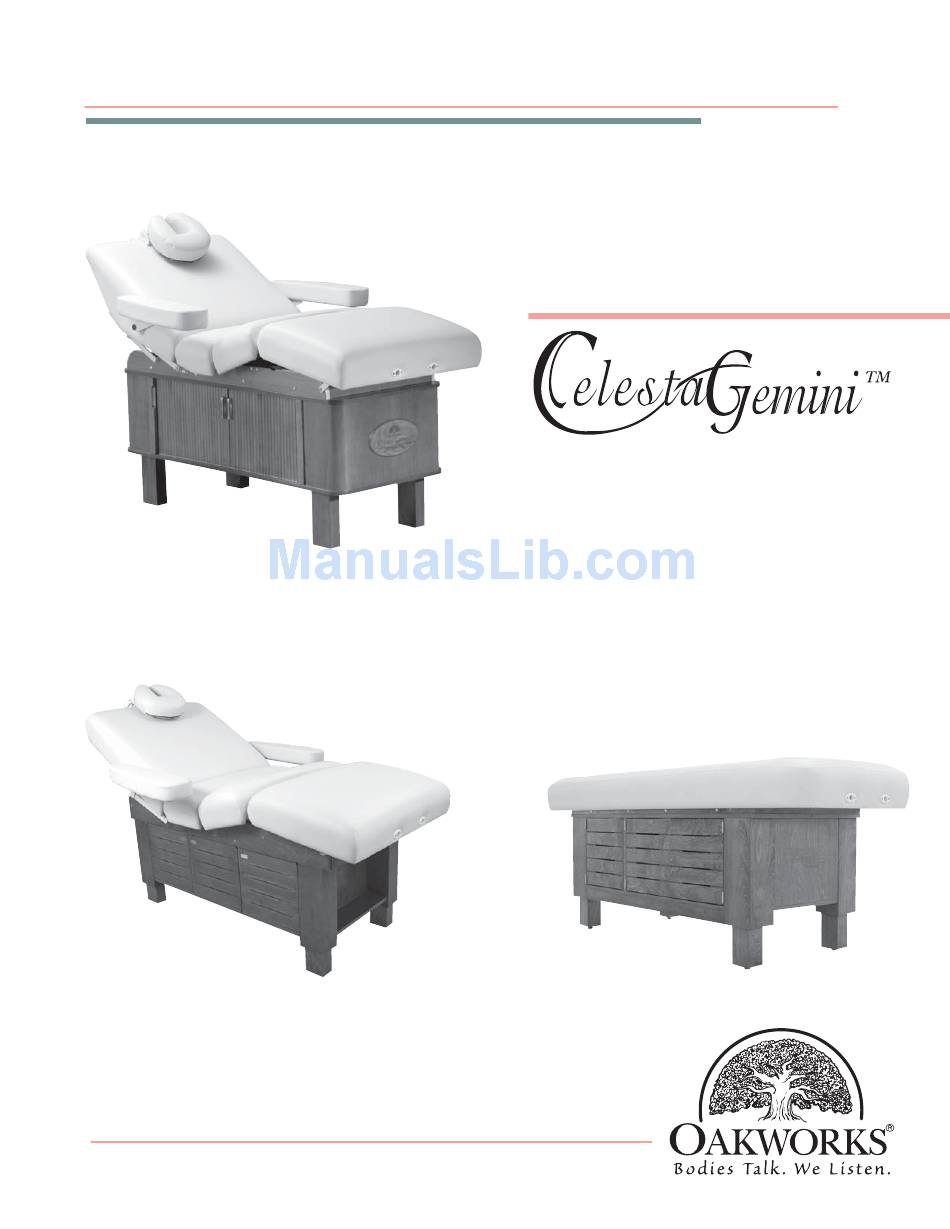

- Page 1 I N S T R U C T I O N M A N U A L ® Oakworks Celesta Gemini Celesta Gemini Clodagh Model WITH FLAT TOP Clodagh Model...
- Page 2 SYMBOL IDENTIFICATION © 2005 Oakworks ® , Inc. • How to Care for Your Upholstery SYMBOL IDENTIFICA- Notice The information contained in this document is subject to change Manual Part # MMMNST0002 without notice and should not Edition 3, English...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Symbol Identification ................pg iii Warnings ....................pg iv Grounding Instructions ................. pg vi Section I: Product Description & Photo pg 1 Celesta Gemini ™ ..............pg 2 Celesta Gemini ™ ..........LODAGH ODEL Section II: Installation ............ -
Page 4: Symbol Identification
SYMBOL IDENTIFICATION • How to Care for Your Upholstery SYMBOL IDENTIFICATION... - Page 5 SYMBOL IDENTIFICATION SYMBOL IDENTIFICATION This symbol, when used in documentation on this product, represents a cau- tion. Be sure to read and comply with all precautions and warnings. This symbol, when used in documentation on this product, indicates danger and warns against an electrical shock hazard. Be sure to observe and comply with all warnings and instructions.
- Page 6 SYMBOL IDENTIFICATION • How to Care for Your Upholstery WARNINGS & IMPORTANT SAFETY INSTRUCTIONS SYMBOL IMPORTANT SAFETY INSTRUCTIONS IDENTIFICATION When using an electrical furnishing, basic precautions should always be followed, including the following: Improper use of this device can cause injury. Be sure to read all operating instructions prior to use to prevent injury to operator or client.
- Page 7 WARNINGS & IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS (CONT.) This product is equipped with an interior accessory outlet. The total elec- trical load of equipment plugged into this set of outlets is not to exceed 840 watts. Close supervision is necessary when this furnishing is used by, or near, children, invalids or disabled persons.
-
Page 8: Warnings
SYMBOL IDENTIFICATION • How to Care for Your Upholstery WARNINGS & IMPORTANT SAFETY INSTRUCTIONS SYMBOL IDENTIFICATION IMPORTANT SAFETY INSTRUCTIONS (CONT.) • To remove the accessory from the cabinet: Turn the accessory controls to the ‘off’ position and then disconnect the unit from the interior WARNING power source by removing the plug from the outlet. -
Page 9: Product Description & Photo
PRODUCT DESCRIPTION PRODUCT DESCRIPTION elesta emini ™ QuickLock™ Self Adjusting Face Rest Upholstered Removable Arm Rests (2) (option) Access Design Top Leg Rest (option) Seat Cabinet doors (access both sides) Vertical Electronic Fully Enclosed Lift Columns (4) Cabinet Base optional Casters Tab l e S pe c s* : •... -
Page 10: Celesta Gemini
SYMBOL IDENTIFICATION • How to Care for Your Upholstery PRODUCT DESCRIPTION elesta emini ™ PRODUCT DESCRIPTION CLODAGH MODEL QuickLock™ Self Adjusting Upholstered Face Rest Removable Arm Rests (2) (option) Access Design Top Leg Rest (option) Seat Cabinet doors (6 - access both Exterior sides) Cabinet... -
Page 11: Section Ii: Installation
SYMBOL IDENTIFICATION INSTALLATION The table comes completely assembled and ready to use. Plug the cord • Leveling Feet into a functioning outlet that is rated for the table. Arrange the power cord and control cords so that they will not create a tripping hazard. -
Page 12: Section Iii: Directions For Use
SYMBOL IDENTIFICATION • How to Care for Your Upholstery DIRECTIONS FOR USE SYMBOL IDENTIFICATION ADJUSTING HEIGHT OF THE TABLE: The table comes complete with a multifunctional hand control that • Foot Control operates the backrest and leg rest positioning functions as well as a foot control that operates the height with electronic ease. -
Page 13: Adjusting The Top (Hand Control)
DIRECTIONS FOR USE H AN D C ONT R OL O PE R A T I O N S (FLEX TOP MODELS ONLY) • Hand Control When operating the controls, be sure to observe all cautions and warnings given in the manual to prevent injury to both operator and client. -
Page 14: Under-Table Cabinet
DIRECTIONS FOR USE IMPORTANT IMPORTANT SAFETY NOTE The cabinet hood area under the backrest top is not designed for stor- age or as an area to hold accessories while with a client. DO NOT use CAUTION this area for holding anything. Damage can occur to the table, especially when the pre-set position commands that are accessed by the hand control DO NOT store or place are activated. -
Page 15: Side Arm Rests
DIRECTIONS FOR USE • Side Arm Rests SIDE ARM RESTS Though the arm rests adjust automatically to remain parallel to the IMPORTANT floor in any position, there will still be times when you will need to move an arm rest out of the way or remove them altogether. We recommend that you raise the arm rest out of the way to allow a client to CAUTION get on or off the table. - Page 16 SYMBOL IDENTIFICATION • How to Care for Your Upholstery DIRECTIONS FOR USE SYMBOL SIDE ARM RESTS: C O N T IDENTIFICATION There will be times when removal of the arm rests will be needed. This feature is helpful when doing massage or helping someone get on or off the table. •...
-
Page 17: Quicklock Face Rest
SYMBOL IDENTIFICATION • How to Care for Your Upholstery DIRECTIONS FOR USE SYMBOL QuickLock FACE REST: ™ IDENTIFICATION • Accessory Option: QuickLock ™ Face Rest Double articulating action provides nearly limitless positioning options with the QuickLock ™ Face Rest.The adjustable pad takes pressure off sensitive facial areas while providing superb support. - Page 18 DIRECTIONS FOR USE Attaching the QuickLock Face Rest on on Flat Top models & Flex ™ • Accessory Option: Top Foot End Outlets: QuickLock ™ When attaching the QuickLock Face Rest to the foot end by using the ™ Face Rest (cont.) provided outlets, just slide the frame dowels into the outlets being sure to keep the 1 st cam lock within 3”...
-
Page 19: Accessory Option: Table Extender
SYMBOL IDENTIFICATION • How to Care for Your Upholstery DIRECTIONS FOR USE SYMBOL • Accessory Option: IDENTIFICATION Table Extender Be sure to read all cautions, warnings and instructions given in the manual to prevent injury to both operator Outlets and client. CAUTION The optional stationary Table Extender provides ultimate comfort for Do not put excessive weight... -
Page 20: Section Iv: Troubleshooting
TROUBLESHOOTING F THE TABLE NOT CHANGE HEIGHT OR POSITION • Check the outlet to be sure that it has power and that the IMPORTANT power cable is plugged in. Try each Foot Control and Hand Control to see if any work. If any work, then possibly there is a loose connection or a faulty controller. -
Page 21: Section V: Care & Cleaning
SYMBOL IDENTIFICATION • How to Care for Your Upholstery CARE & CLEANING SYMBOL IDENTIFICATION CARE & CLEANING In order to maintain the quality and ensure the life of the table , here are some preventative steps that can be taken to protect the upholstery on the chair and accessories. •... -
Page 22: Section Vi: Product Identification
PRODUCT IDENTIFICATION POWER LEAD PLUGS • Plugs Part #: Voltage (ACE) Power Cord Plug Oakworks ® 7791 120v 60 Hz 3 prong grounded These part numbers hospital grade; are for identification North America only; they are not field serviceable items. -
Page 23: Section Vii: Table Specifications
SYMBOL IDENTIFICATION • How to Care for Your Upholstery PRODUCT SPECS SYMBOL ELECTRICAL SPECIFICATIONS IDENTIFICATION North America Europe Japan/Korea Designed For: Electric Service 120VAC/15A 220VAC/10A 100VAC/20A Input Frequency 60 Hz 50 Hz 50/60 Hz Voltage Output 24 VDC 24 VDC 24 VDC Current Consumption 4.7 amps... -
Page 24: Contact Information
® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Toll Free (USA only): 800-916-4613 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com European Compliance for CE Information: Emergo Europe Molenstraat 15 The Hague, 2513 BH Netherlands info@emergogroup.com Manual Part # MMMNST0002 Revision date: 08.06.09 Edition 3, English Printed in U.S.A.
