Suction· T ube
Feeding Simulator
(Suction Training Model Type II + Tube Feeding Components)
LM-097B
Suction Training Model Type II
Tube Feeding Components
Instruction Manual
Thank you for purchasing the LM-097B Suction·Tube Feeding Simulator.
Please read this instruction manual carefully to ensure correct use of theproduct,
and store it in a safe place for easy access.
KOKEN CO., LTD.
1-4-14 Koraku, Bunkyo-ku, Tokyo 112-0004 JAPAN
URL:http://www.kokenmpc.co.jp
E-mail:customer@kokenmpc.co.jp
9999
LM-097
LM-097C
© 2012-2021 KOKEN CO., LTD. C-1-995-1-01-06
Advertisement
Related Manuals for KOKEN LM-097B
Summary of Contents for KOKEN LM-097B
- Page 1 Suction· T ube Feeding Simulator (Suction Training Model Type II + Tube Feeding Components) LM-097B Suction Training Model Type II LM-097 Tube Feeding Components LM-097C Instruction Manual Thank you for purchasing the LM-097B Suction·Tube Feeding Simulator. Please read this instruction manual carefully to ensure correct use of theproduct, and store it in a safe place for easy access. KOKEN CO., LTD. 1-4-14 Koraku, Bunkyo-ku, Tokyo 112-0004 JAPAN URL:http://www.kokenmpc.co.jp E-mail:customer@kokenmpc.co.jp 9999 © 2012-2021 KOKEN CO., LTD. C-1-995-1-01-06...
- Page 2 10000...
- Page 3 Handling and Safety Precautions These precautions should be strictly observed in order to ensure safe, long-term use of the product. The following precautions should be observed particularly strictly: 1. This model is manufactured to feel like a living human body to the touch. Forceful or careless handling may damage the model. 2. Any suction catheters, tracheostomy cannula, and feeding tubes used for training should be used only with the model. Never use these items with a living human body. 3. Never put the simulated sputum provided as an accessory into human body (eyes or mouth). (The simulated sputum is manufactured from a material used for cosmetics, and is manufactured using materials that meet The Japanese Standards of Cosmetic Ingredients, as well as Supplement to the Japanese Cosmetic Ingredients Codex.) 4. Liquid leakage may occur with improper use, and dirty the surroundings. Please read the instruction manual carefully before use. It is recommended that the model be used in a place that will not be damaged if leakage occurs, or on top of an absorptive sheet.
-
Page 4: Table Of Contents
Table of Contents 1. Outline and Features 2. Components 3. Handling the Model 4. Caring for the Model 5. Specifications... -
Page 5: Outline And Features
1. Outline and Features Outline This model can be used to practice the insertion of suction catheters into the nasal cavity, oral cavity and tracheostomy site, as well suction procedures, nasogastric tube feeding, and gastrostomy care procedures, routinely applied in the nursing and caregiving fields. The facial region can be divided into two halves along the midline, allowing confirmation of the actual insertion status of a suction catheter and feeding tubes. The tube feeding components come with an internal tank, allowing nasogastric tube feeding and gastrostomy management using actual liquids. The tank has a drainage function, so there is no need to worry about overflow when the tank becomes full. Insertion of suction catheters into the nasal cavity, oral cavity and tracheostomy site and suctioning practice, which are done with the Suction Training Model Type II, can also be performed with the tube feeding components attached. -
Page 6: Components

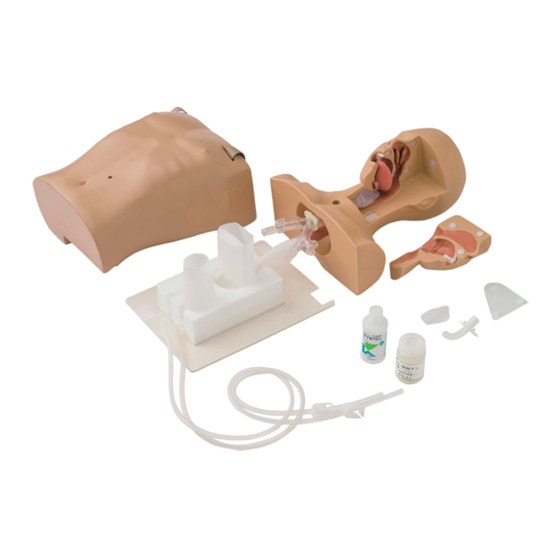

Acrylic board for the side of the face ⑦ Glycerin ⑧ Simulated sputum Bronchus Storage bag Instruction Manual (this document) Clasp for bronchus ※ The storage bag for the Suction Training Model Type II is not included in the Suction・Tube Feeding Simulator unit. ※ The tracheostomy cannula is for use with Life Simulation Models only. It is not to be used in humans. Tracheostomy cannula (KOKEN Tracheal Cannula PP Single-Tube Type, 13 mm) Glycerin Simulated sputum Storage bag... - Page 7 Tube feeding components Tube feeding components Names of the Components Quantity Names of the Components Quantity ① Body Body ② Back plate Back plate ③ Gastrostomy tank Gastrostomy tank ④ Tube feeding tank Tube feeding tank ⑤ Insertion support piece Storage bag Insertion support piece Instruction Manual (this document)
-
Page 8: Handling The Model
3. Handling the Model 3. Handling the Model 3. Handling the Model ・Suction Training Model Type II Suction Training Model Type II 3. Handling the Model 3-1. Connecting the bronchus and main body of the Suction Training Model Type II (when practicing 3-1. - Page 9 3-3. Place the simulated sputum into the nasal cavity, oral cavity, and bronchus. 3-3. Place the simulated sputum into the nasal cavity, oral cavity, and bronchus. 1) Before starting training, use a spoon to extract an amount of simulated sputum and place it 1) Before starting training, use a spoon to extract an amount of simulated sputum and place it in sections in sections where suctioning will be practiced. Set the side of the face in place as shown below, where suctioning will be practiced.
- Page 10 3-4. Set the tracheostomy cannula in place. 3-4. Set the tracheostomy cannula in place. 1) The tracheostomy cannula provided as an accessory can be set in place to practice suctioning in 3-4. Set the tracheostomy cannula in place. 3-4. Set the tracheostomy cannula in place. 1) The tracheostomy cannula provided as an accessory can be set in place to practice suctioning in the the bronchus.
- Page 11 3-6. Add water so that air bubbles can be heard when checking an insertion Pour 100 ml of water into the tube feeding tank set in the back plate. 3-6. Add water so that air bubbles can be heard when checking an insertion. Note: Be careful not to add too much water, as this may cause leakage or back flow. 3-6. Add water so that air bubbles can be heard when checking an insertion. Pour 100 ml of water into the tube feeding tank set in the back plate.
- Page 12 3) Wrap the belt on the shoulder of the body over the shoulder of the Suction Training Model Type 3) Wrap the belt on the shoulder of the body over the shoulder of the Suction Training Model Type II and 3) Wrap the belt on the shoulder of the body over the shoulder of the Suction Training Model Type II and II and tighten as shown below. Adjust the belt so that there is no slack between the Suction Training tighten as shown below.
-
Page 13: Caring For The Model
3-9. Practice. 3-9. Practice. 1) Put the model in the position in which practice will be done. 1) Put the model in the position in which practice will be done. Note: Please use this model in positions from 5° to <90° . If practice is carried out with the head of Note: It is recommended that this model be used in positions from 0° to <90°. Leakage may occur 3-9. Practice. the model placed lower than the body, or in an anteflexion or a lateral position, leakage will occur. - Page 14 2) Release the shoulder belt 2) Release the shoulder belt 2) Release the shoulder belt 2) Release the shoulder belt. Release the belt by pressing with the fingers in the directions of the arrows. Release the belt by pressing with the Release the belt by pressing with the Release the belt by pressing with the fingers in the directions of the arrows.
- Page 15 5) Wipe marks or smudges from the body and back plate with a towel or cloth moistened with water. 5) Wipe marks or smudges from the body and back plate with a towel or cloth moistened with water. 5) Wipe marks or smudges from the body and back plate with a towel or cloth moistened with water. 5) Wipe marks or smudges from the body and back plate with a towel or cloth moistened with water. 4-2.
-
Page 16: Specifications
When stored in bag 75 cm 32 cm 20 cm When stored in bag Approx. 75 cm Approx. 32 cm Approx. 20 cm Approx. 5 kg ● Optional items Optional items Product name Product No. Product mane Product No. Simulated sputum (100 g x 5pcs) LM-0701 Simulated sputum (100 g, 5 pcs) LM-0701 Koken Co., Ltd.
