Instruction Manual
Thank you for purchasing the Ascending/Descending Colon for Colonoscopy.
Please read this instruction manual carefully to ensure correct use of the product,
and store it in a safe place for easy access.
KOKEN CO., LTD.
1-4-14 Koraku, Bunkyo-ku, Tokyo 112-0004 JAPAN
URL:http://www.kokenmpc.co.jp
E-mail:customer@kokenmpc.co.jp
9999
C-1-1023-1-01-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-107C and is the answer not in the manual?

Questions and answers

Related Manuals for KOKEN LM-107C

Summary of Contents for KOKEN LM-107C

  • Page 1 Thank you for purchasing the Ascending/Descending Colon for Colonoscopy. Please read this instruction manual carefully to ensure correct use of the product, and store it in a safe place for easy access. KOKEN CO., LTD. 1-4-14 Koraku, Bunkyo-ku, Tokyo 112-0004 JAPAN URL:http://www.kokenmpc.co.jp E-mail:customer@kokenmpc.co.jp...
  • Page 2 30ºC, it may change in shape or degrade, rendering it unusable. 1-2. Please use the Simulated Polyp as early as possible after it has been unsealed. KOKEN is not responsible for quality of Simulated Polyps that have already been unsealed.
  • Page 3 1-6. Always store in the storage liquid. Storing it in other liquids will cause degeneration of the polyp. Be careful not to spill the storage liquid or throw it away before using all the Simulated Polyps (for polypectomy). 2. When resecting a Simulated Polyp (for polypectomy), always use a disposable electrode. 3.
  • Page 4 Handling and Safety Precautions These precautions should be strictly observed to ensure safe, long-term use of the product. Caring for the model after use 1. After using this product, thoroughly flush out the lubricant with cold or hot water. 2. To clean the storage case, wipe with gauze or similar material moistened with water or a watered- down,mild detergent.

  • Page 5: Table Of Contents

    Table of Contents 1. Components and Configuration 2. Handling Methods 2-1 Changing parts of the intestinal tract 2-1-1 How to change Ascending Colon for Colonoscopy 2-1-2 How to change Descending Colon for Colonoscopy 2-2 Attaching a simulated polyp (for observation) 2-2-1 How to attach a simulated polyp (for observation) to the ascending colon 2-2-2 How to attach a simulated polyp (for observation) to the descending colon 2-3 Applying lubricant jelly 2-3-1 How to apply lubricant jelly to the ascending colon 2-3-2 How to apply lubricant jelly to the descending colon 2-4 Attaching simulated polyps (for polypectomies) 2-4-1 How to attach a simulated polyp (for polypectomies) to the ascending colon 2-4-2 How to attach a simulated polyp (for polypectomies) to the descending colon 3. Optional Items...

  • Page 6: Components And Configuration

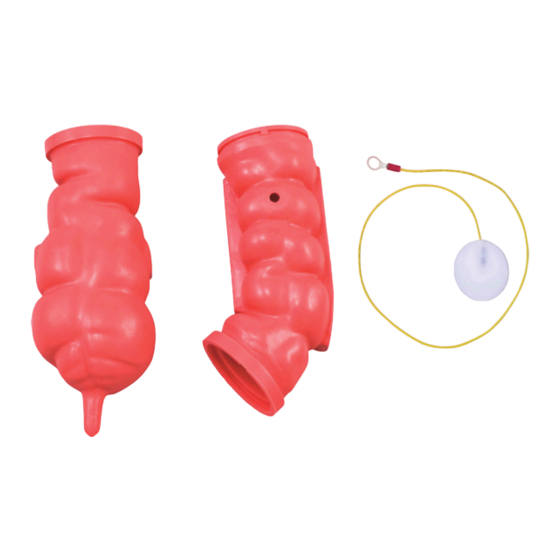

    1. Components and Confi guration Ascending Colon for Colonoscopy parts Descending Colon for Colonoscopy parts Common parts ⑥ Left ⑦ Right ♦ Descending Colon for Colonoscopy parts ♦ Common parts [6] Left; [7] Right Name Quantity ① Ascending Colon for Colonoscopy ②...

  • Page 7: Handling Methods

    2. Handling Methods 2-1 Changing parts of the intestinal tract 2-1-1 How to change Ascending Colon for Colonoscopy 1) Remove the round stoppers for the simulated peritoneal membrane sheet, small intestine, and intestinal sheet. 2) Remove screws from the transparent cover and lift off the cover. 3) Insert the small intestine through the opening in the intestinal sheet, and then turn over the sheet.
  • Page 8 4) Remove the two screws affi xing the ascending colon to the main unit, using a screwdriver. * A screwdriver is not included with the product. 5) Remove the ascending colon. Install the provided spacers for pins (16 mm) to the above two screws, and tighten the screws at the two points shown in the illustration, below.
  • Page 9 Transverse colon and Rectum/sigmoid colon descending colon and descending colon * Make sure to align notch marks on each connector. * Make sure to align marks on each connector Female Male - 9 - 7) As shown below, push holes in the ascending colon’s seat into the pins to attach the ascending colon to the main unit.

  • Page 10: How To Change Descending Colon For Colonoscopy

    2-1-2 How to change Descending Colon for Colonoscopy 1) Remove the round stoppers for the simulated peritoneal membrane sheet, small intestine, and intestinal sheet. 2) Remove the screws from the transparent cover and lift off the cover. 3) Insert the small intestine through the opening in the intestinal sheet, and turn over the sheet.
  • Page 11 4) Remove the two screws affi xing the descending colon to the main unit, using a screwdriver. *A screwdriver is not included with the product. 5) Remove the descending colon. Install the provided spacers for pins (10 mm) to the above two screws, and tighten the screws at the two points shown in the illustration, below.
  • Page 12 Ascending colon and transverse colon * Make sure to align notch on each connector * Make sure to align notch marks on each connector. Female Male 5. As shown below, push holes in the ascending colon's seat into the pins to attach the ascending colon to the main unit. 7) Connect the polyp attachment band to the pin on the upper right section of the main unit, then push holes in the descending colon’s seat into the pins to attach the descending colon to the main unit.

  • Page 13: Attaching A Simulated Polyp (For Observation)

    2-2 Attaching a simulated polyp (for observation) Select from the simulated polyps (for observation) below and attach one to a designated area. Protruding polyps Sessile Pedunculated Attach the two pieces of provided Velcro with double-faced adhesive tape to the central area (near the depressed area) of the back of the main unit, as shown in the illustration below.

  • Page 14: How To Attach A Simulated Polyp (For Observation) To The Ascending Colon

    2-2-1 How to attach a simulated polyp (for observation) to the ascending colon 1) Detach the ascending colon from the main unit, and insert a selected simulated polyp (for observation) into the polyp attachment opening located in the lower part of the ascending colon. Then, reattach the ascending colon to the main unit.

  • Page 15: How To Attach A Simulated Polyp (For Observation) To The Descending Colon

    2-2-2 How to attach a simulated polyp (for observation) to the descending colon Sessile Pedunculated 1) Unhook the polyp attachment band around the Descending Colon, and insert a selected simulated     Attaching a polyp to the descending colon polyp (for observation) into the polyp attachment opening.

  • Page 16: Applying Lubricant Jelly

    2-3 Applying lubricant jelly * Before using the model, be sure to apply a generous amount of lubricant jelly to the inside of the intestine. Insuffi cient application of lubricant may increase scope-to-intestine resistance and make the insertion of the scope diffi cult. * Use lubricant jelly that is specifi cally designed for endoscopes. Lubricant should be applied to the following openings The connection between the 上行結腸、横行結腸接続 ascending and transverse colons 部 The connection between the S 状結腸、下行結腸接続 sigmoid and descending colons The connection between the 下行結腸、横行結腸接続...

  • Page 17: How To Apply Lubricant Jelly To The Descending Colon

    3) Squeeze lubricant jelly into the intestine. Then, squeeze the intestine along its length to ensure even distribution. 2-3-2 How to apply lubricant jelly to the descending colon 1) Remove the simulated peritoneal membrane sheet, and detach the two colon connectors at the two points shown in the right illustration below.

  • Page 18: Attaching Simulated Polyps (For Polypectomies)

    2-4 Attaching simulated polyps (for polypectomies) [Caution] Be sure to disconnect the conduction cable from the model when not using (attaching) any simulated polyp (for polypectomies) in order to avoid any electrical hazards. 1) Attach the plate side of the conduction cable to the Velcro on the back of the main unit. When using simulated polyps (for polypectomies) in both the ascending and descending colons, you should attach the two plates side-by-side to the Velcro on the back of the main unit as shown in the lower right illustration below.

  • Page 19: How To Attach A Simulated Polyp (For Polypectomies) To The Ascending Colon

    2-4-1 How to attach a simulated polyp (for polypectomies) to the ascending colon 1) Remove the simulated peritoneal membrane sheet, and detach the ascending and transverse colons, while they are still connected, from the main unit. 2) Insert a simulated polyp (for polypectomies) through the ring of the conduction cable. 3) Insert the simulated polyp (for polypectomies) into the polyp attachment opening of the ascending colon, and reattach the ascending colon to the main unit.
  • Page 20 4 ) Position the conduction cable between two pieces of Velcro as shown in the left illustration below, and reattach the simulated peritoneal membrane sheet. Velcro tapes Intestine Conduction cable ring Main unit Simulated polyp (for polypectomies) installed 2-4-2 Attaching a simulated polyp (for polypectomies) to the descending colon 1) Remove the simulated peritoneal membrane sheet, then remove the polyp attachment band from the descending colon.
  • Page 21 3) Insert the simulated polyp (for polypectomies) into the descending colon’s polyp attachment hole, then re-attach the polyp attachment band to cover the fl ange. Polyp attachment band Conduction cable ring Intestine Simulated polyp (for polypectomies) in set 4) Position the conduction cable between the Velcro and re-attach the simulated peritoneal membrane sheet.

  • Page 22: Optional Items

    1 Small intestine for Colonoscopy (semi-difficult type) LM-107A 2 Small intestine for Colonoscopy (easy type) LM-107B 3 Ascending Colon for Colonoscopy LM-107C 4 Descending Colon for Colonoscopy LM-107D 5 Conduction cable LM-107E 6 Simulated Polyp (for polypectomy): 5 count 　　　　　...
