Neonatal
Vital Signs
Simulator II
LM-098
Instruction Manual
Thank you for purchasing the LM-098 Neonatal Vital Signs Simulator II.
Please read this instruction manual carefully to ensure correct use of the product,
and store it in a safe place for easy access.
KOKEN CO., LTD.
1-4-14 Koraku, Bunkyo-ku, Tokyo 112-0004 JAPAN
URL:http://www.kokenmpc.co.jp
E-mail:customer@kokenmpc.co.jp
©2012-2021 KOKEN CO., LTD. C-1-992-1-01-08
Advertisement
Related Manuals for KOKEN LM-098
Summary of Contents for KOKEN LM-098
- Page 1 Simulator II LM-098 Instruction Manual Thank you for purchasing the LM-098 Neonatal Vital Signs Simulator II. Please read this instruction manual carefully to ensure correct use of the product, and store it in a safe place for easy access. KOKEN CO., LTD.
- Page 3 Handling and Safety Precautions These precautions should be strictly observed in order to ensure safe, long-term use of the product. The following precautions should be observed particularly strictly: 1. The simulator is made with special silicone rubber to simulate the texture of human skin, so we recommend that it be handled carefully in the same manner as an actual infant.
- Page 4 Handling and Safety Precautions These precautions should be strictly observed in order to ensure safe, long-term use of the product. Caring for the simulator after use 1. To clean the simulator's skin, wipe with a clean piece of gauze soaked in water or a mild detergent diluted with water.
- Page 5 Table of Contents 1. Outline and Features 2. Components and Configuration 3. Handling the Simulator 4. Simulator Configuration Charts 5. Specifications...
- Page 6 1. Description & features Description With this LM-098 simulator, infant vital signs can be measured and the entire body can be monitored. A crying-sound function reproduces the clinical setting more realistically, while heart and breathing sounds can be checked, enabling hands-on training of measurement and monitoring close to those of the actual clinical site.
- Page 7 Visual inspection ・ Thoracoabdominal breathing synchronized to the set respiratory rate can be observed visually. Crying-sound function ・ The sound of crying can be heard coming from the mouth.

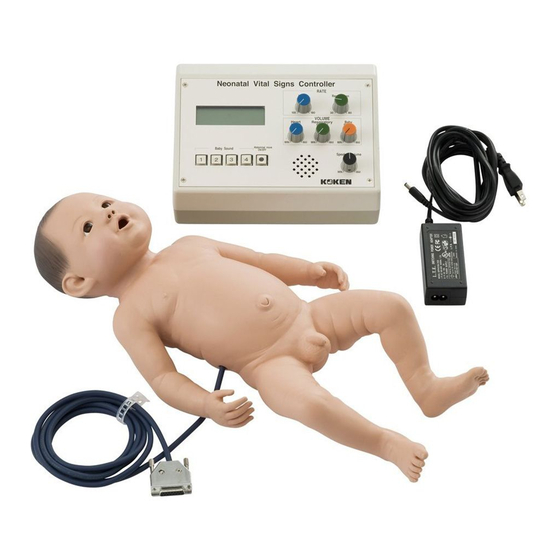

- Page 8 2. Components and Configuration View of simulator components 1. Neonatal Simulator (with connecting cord) 2. Control box 3. AC Adapter (with DC cord) 4. AC cord ※ If necessary, prepare an appropriate plug adapter according to the wall sockets in your country.
- Page 9 Control box front panel Monitor Crying sound buttons Thoracoabdominal movement On/Off button Heart rate adjustment dial Respiratory rate adjustment dial Heart sound volume dial Breathing sound volume dial Crying sound volume dial External speaker volume dial 10. External speaker...
- Page 10 ＜コントロールボックス リア＞ Control box rear view ２ ３ １ 1 . Cable connector 2 . Power switch １ 接続コネクタ 3 . Power inlet ２ 電源スイッチ ３ 電源コネクタ ＜モニター概要＞ Monitor １ ２ ３ ４ 1 . Heart rate display 2 . Respiratory rate display 3 .
- Page 11 Neonatal simulator ＜新生児人形＞ ２ ３ ４ １ 1 . Connecting cord １ 接続コード ※人形からは外れません *Cannot be disconnected from the simulator ２ 呼吸音スピーカー内蔵部 2 . Breathing sound internal speaker 心音スピーカー内蔵部 ３ 3 . Heart sound internal speaker ４ 胸腹部可動部 4 . Thoracoabdominal movable part...
- Page 12 ３ ３ ． ． モ モ デ デ ル ル の の 取 取 扱 扱 方 方 法 法 3. Handling the Simulator ＜３－１ モデル使用方法＞ 3-1 How to operate the simulator ① 人形についている接続コードをコントロールボックスの接続コネクタに接続します。 1. Connect the cable attached to the simulator to the cable connector on the control box. ②...
- Page 13 □ □ □ crying sound. * The LM-098's 4 crying sound buttons are designed to simulate the following meanings: 1) hungry; 2) sleepy; 3) "hold me"; and 4) comfortable. Crying sounds differ among infants and the crying sounds made by the LM-098 are intended solely as a reference.
- Page 14 3-3 After Use 1. Turn the power switch to the ‘OFF' position. 2. Unplug the AC cord from the power outlet. 3. Disconnect the DC cord from the control box. 4. Disconnect the connecting cord from the control box. 4. Simulator Configuration Chart Item Quantity Neonatal simulator (with connecting cord)
