Ryobi OSF1835BL Original Instructions Manual

Cordless scarifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

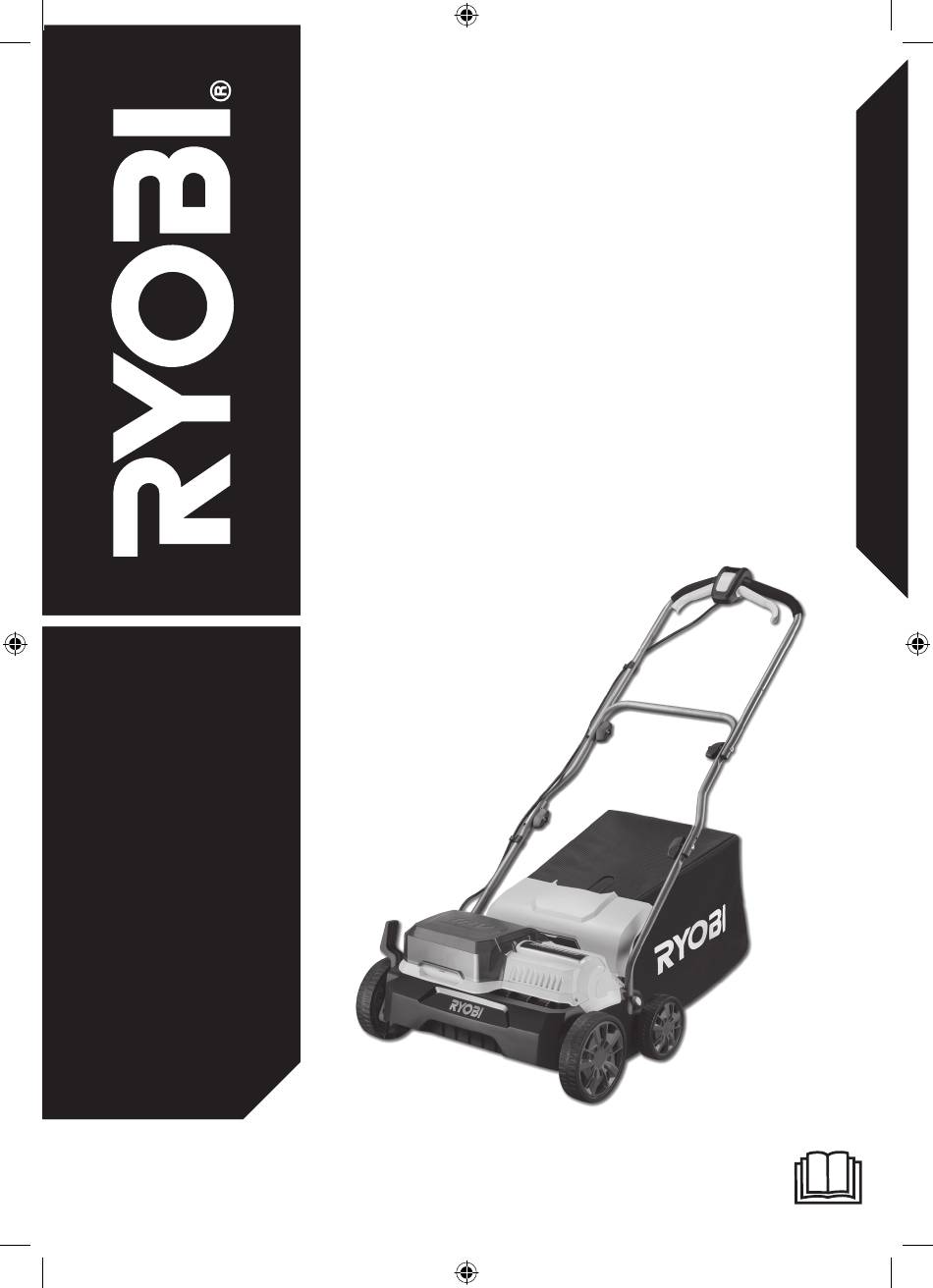

ORIGINAL INSTRUCTIONS
Cordless
Scarifier
OSF1835BL
xxxxxxxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSF1835BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi OSF1835BL

Summary of Contents for Ryobi OSF1835BL

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Scarifier OSF1835BL xxxxxxxxxx...

  • Page 2: Intended Use

    and down. Exercise extreme caution when changing IMPORTANT! direction on slopes. It is essential that you read the instructions in this ■ Do not use the product near drop-offs, ditches, manual before assembling, operating, and maintaining excessively steep slopes, or embankments. Poor the product.
  • Page 3 specified by the manufacturer. Using a charger with an safer at the speed for which it was designed. incompatible battery pack may create a risk of fire. Use ■ Stop the scarifier drum when crossing gravel surfaces. battery pack only with charger listed. ■...

  • Page 4: Maintenance

    ADDITIONAL BATTERY SAFETY WARNINGS MAINTENANCE To reduce the risk of fire, personal injury, and product ■ Use only original manufacturer’s replacement parts, damage due to a short circuit, never immerse your tool, accessories, and attachments. Failure to do so can battery pack or charger in fluid or allow fluid to flow inside cause injury, can contribute to poor performance, and them.

  • Page 5: What's In The Box

    Regulatory Compliance Mark (RCM). WHAT’S IN THE BOX Product meets applicable regulatory See page 5. requirements. ■ Scarifier x 1 ■ Lower handle x 1 Guaranteed sound power level ■ Middle tubes x 1 ■ Knobs x 4 ■ Screw x 4 SYMBOLS IN THIS MANUAL ■...
  • Page 6 WHAT’S IN THE BOX OSF1835BL...

  • Page 7: Know Your Product

    Know your product KNOW YOUR PRODUCT 1. On/off button 7. Scarifier drum 13. Rear door 2. Handle grips 8. Isolation key 14. Debris collector 3. Triggers 9. Rear wheels 15. Lower handle assembly 4. Upper handle assembly 10. Front wheels 16.

  • Page 8: Getting Started

    GETTING STARTED Always wear safety goggles and hearing protection. Attach the lower handle assembly to the scarifier housing. Raise the rear door. Install the debris catcher, ensuring that it is secure and aligned with the two hooks.
  • Page 9 GETTING STARTED GETTING STARTED GETTING STARTED Secure the middle tubes to the scarifier housing using the Insert the lower handle onto the middle tubes. Align the Insert the upper handle onto the lower handle assembly. Align the holes and insert the screws. Secure the upper handle Use zip ties to secure the wiring along one side of the NOTE: Make sure that the wiring is properly secured to one tightening knobs.
  • Page 11 OVERVIEW Replacing the scarifier drum Operating the product p.15 p.12 Adjusting the scarifying depth p.14...
  • Page 12 OVERVIEW Emptying the debris catcher Storing the product p.21 p.23 Cleaning the product p.19...

  • Page 13: Operation

    OPERATION OPERATING THE PRODUCT WARNING: Do not operate the product over big rocks and boulders. WARNING: Do not operate the product on excessively steep slopes. 1. Raise the rear door. 2. Install the debris catcher, ensuring that it is secure and aligned with the two hooks.
  • Page 14 OPERATION 3. Open the battery cover. Insert the battery packs until the latches snap in place. 4. Insert the isolation key. Close the battery cover. The cover should snap into place. 5. Press the on/off button then squeeze the triggers. Squeezing either trigger will activate the product.
  • Page 15 OPERATION ADJUSTING THE SCARIFYING DEPTH 1. Release the triggers to stop the product. 2. Pull the height adjustment lever to adjust the scarifying depth.
  • Page 16 MAINTENANCE REPLACING THE SCARIFIER DRUM WARNING: The scarifier blades are sharp. Wear gloves when replacing the scarifier drum. 1. Release the triggers to stop the product. 2. Open the battery cover. Remove the isolation key. 3. Press the battery latches, then remove the battery packs.
  • Page 17 MAINTENANCE cover. 4. Tilt the product on its side so the scarifier drum are exposed. WARNING: Scarifier drum is sharp. Keep hands away from the scarifier drum to avoid serious injury. NOTE: Replace damaged or worn out scarifier drums. WARNING: Do not use damaged or worn...
  • Page 18 MAINTENANCE out scarifier drums. Tines may break off and cause injury or contribute to poor performance. 5. Loosen the screws that hold the scarifier drum in place. 6. Remove the bar. 7. Remove the scarifier drum from the scarifer housing by pulling out the top, then pulling up.
  • Page 19 MAINTENANCE 9. Install the new scarifier drum into the scarifier housing, and secure it with the bar. 10. Tighten the screws. 11. Put the product back on four wheels.

  • Page 20: Cleaning The Product

    MAINTENANCE CLEANING THE PRODUCT 1. Release the triggers to stop the product. 2. Open the battery cover. Remove the isolation key. 3. Press the battery latches then remove the battery packs. Close the battery cover. 4. Remove any debris from the scarifier drum.
  • Page 21 MAINTENANCE WARNING: Do not spray the product with water.
  • Page 22 MAINTENANCE EMPTYING THE DEBRIS CATCHER 1. Release the triggers to stop the product. 2. Open the battery cover. Remove the isolation key. 3. Press the battery latches, then remove the battery packs. Close the battery cover. 4. Unhook the debris catcher, then remove it from the scarifier housing.
  • Page 23 MAINTENANCE 5. Empty the debris into a bin.

  • Page 24: Storing The Product

    STORAGE STORING THE PRODUCT 1. Release the triggers to stop the product. 2. Open the battery cover. Remove the isolation key. 3. Press the battery latches then remove the battery packs. Close the battery cover. 4. Unhook the debris catcher, then remove it from the scarifier housing.
  • Page 25 STORAGE 5. Loosen the tightening knobs on the handles. 6. Fold the handles. 7. Store the product in a cool, dry, and well-ventilated area that is inaccessible to children. Do not store the product outdoors.

  • Page 26: Product Specifications

    NOTE: Visit your local special orders desk or contact PRODUCT SPECIFICATIONS RYOBI Customer Service for replacement parts. WARNING! The declared vibration total values Cordless Scarifier and the declared noise emission values given in this Model OSF1835BL instruction manual have been measured in accordance...
  • Page 28 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2020 Techtronic Cordless GP 099251001001-01...
