Heat & Glo PIER-HVB-CE Installer's Manual

Hide thumbs Also See for PIER-HVB-CE:
Table of Contents

Advertisement

Quick Links

Download this manual
Models:
PIER-HVB-CE
ST-HVB-CE
LCOR-HVB-CE
RCOR-HVB-CE
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
This is a room sealed appliance and no other ventilation is
required than what is provided.
Printed in U.S.A. Copyright 2013
Heat & Glo, a brand of Hearth & Home Technologies
7571 215
Street West, Lakeville, MN 55044, USA
th
This product is covered by one or more of the following patents: (United States) 5601073, 5613487, 5647340, 5890485, 5941237, 6006743, 6019099, 6053165,
6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending.
Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
wARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
READ THIS MANUAL BEFORE INSTALLING OR OPERAT-
ING THIS APPLIANCE. THIS INSTALLERS GUIDE MUST
BE LEFT wITH APPLIANCE FOR FUTURE REFERENCE.
These instructions are only valid if the following country symbol is
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modification
of the appliance to the conditions of use for the country.
These instructions are valid for the following countries: GB, IE
Please contact your Heat & Glo dealer with any questions or
concerns. For the number of your nearest Heat & Glo dealer,
please visit www.heatnglo.com.
Installers Guide
0086
2000-945B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIER-HVB-CE and is the answer not in the manual?

Questions and answers

Related Manuals for Heat & Glo PIER-HVB-CE

Summary of Contents for Heat & Glo PIER-HVB-CE

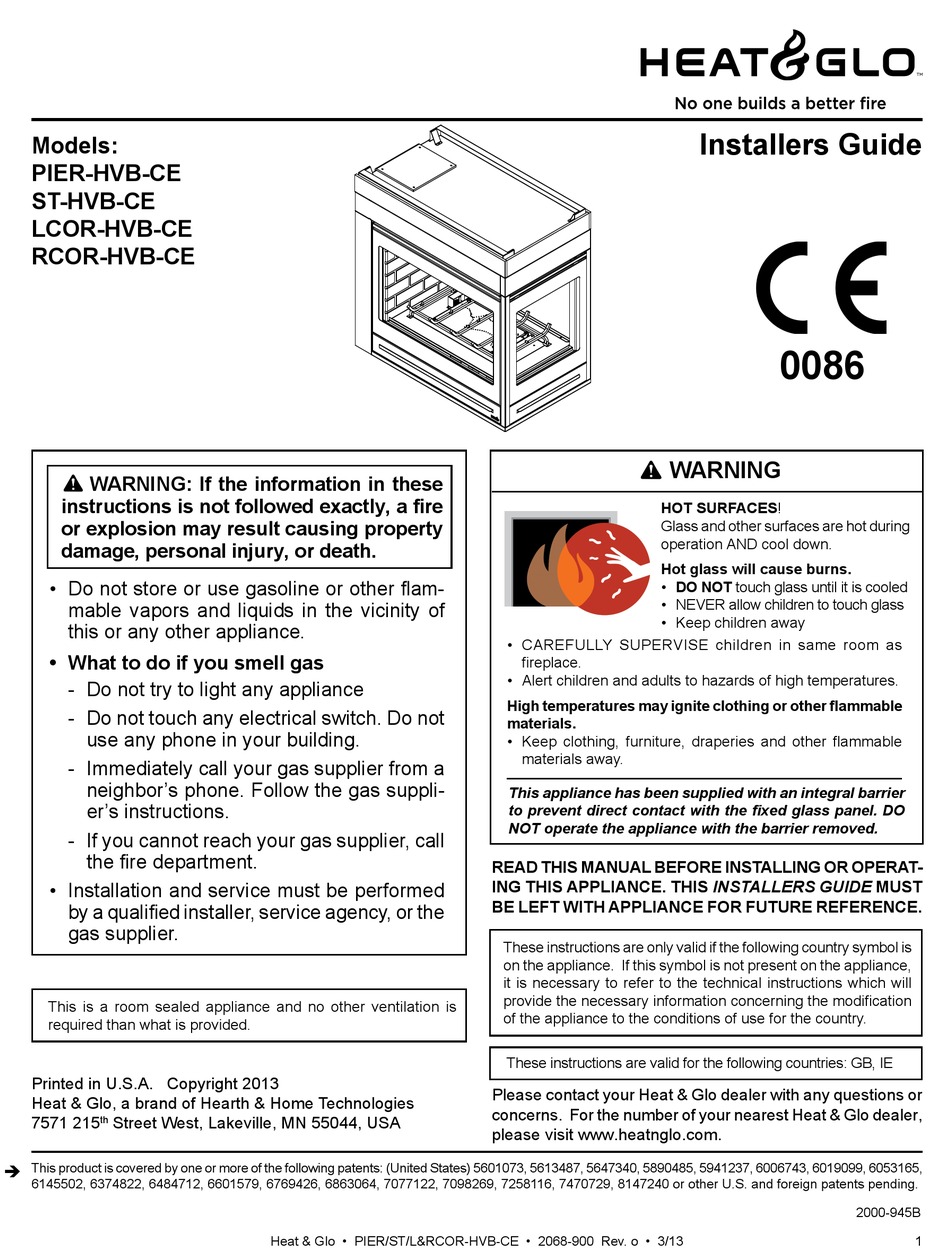

  • Page 1 Installers Guide Models: PIER-HVB-CE ST-HVB-CE LCOR-HVB-CE RCOR-HVB-CE 0086 wARNING WARNING: If the information in these instructions is not followed exactly, a fire HOT SURFACES! or explosion may result causing property Glass and other surfaces are hot during operation AND cool down.

  • Page 2: Safety And Warning Information

    Safety and Warning Information READ and UNDERSTAND all instructions carefully These units musT use one of the flue systems before starting the installation. failure TO fOllOw described in the Installing the Fireplace section of these installation instructions may result in a possible the Installers Guide.

  • Page 3: Table Of Contents

    Table of Contents Safety and Warning Information ..........2 Service Parts List ................4  Appliance Certification ................. 10 Introducing the Heat & Glo Gas Fireplaces ..........10 Pre-install Preparation ................. 10 Approvals and Regulations ............10 Getting Started ................10 Installation Regulations ..............10 Step 1.

  • Page 4: Service Parts List

    LCOR-HVB-CE Service Parts List Service Parts Beginning Manufacturing Date: June 2004 36” Left Corner Gas Fireplace - DV Ending Manufacturing Date: Active Log Set Assembly IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number.
  • Page 5 PIER-HVB-CE Service Parts 3-Sided Gas Fireplace - DV Beginning Manufacturing Date: June 2004 Ending Manufacturing Date: Active Log Set Assembly IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 6 RCOR-HVB-CE Service Parts Beginning Manufacturing Date: June 2004 36” Right Corner Gas Fireplace - DV Ending Manufacturing Date: Active Log Set Assembly IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. ITEM DESCRIPTION COMMENTS...
  • Page 7 ST-HVB-CE Service Parts Beginning Manufacturing Date: June 2004 See-Thru Gas Fireplace - DV Ending Manufacturing Date: Active Log Set Assembly IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. ITEM DESCRIPTION COMMENTS...
  • Page 8 LCOR, PIER, RCOR, & ST-HVB-CE Service Parts Beginning Manufacturing Date: June 2004 Ending Manufacturing Date: Active #8 Valve Assembly 8.11 8.10 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. ITEM DESCRIPTION COMMENTS...
  • Page 9 LCOR, PIER, RCOR, & ST-HVB-CE Service Parts Beginning Manufacturing Date: June 2004 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. ITEM DESCRIPTION COMMENTS...

  • Page 10: Appliance Certification

    This appliance must be installed with the rules in force, and used only in a sufficiently ventilated space. Consult Certification instructions before installation and use of this appliance. MODELS: PIER-HVB-CE, ST-HVB-CE, LCOR-HVB-CE, RCOR-HVB-CE LABORATORy: BSI TyPE: Gas Fireplace STANDARD: BS EN 613:2001 (Amd 1)
  • Page 11 114 mm 950 mm 121 mm TOP FLUE TOP STANDOFFS COLLARS REAR FLUE COLLARS GAS CONTROLS AND LABELS GAS LINE ACCESS ELECTRICAL ACCESS Figure 1. Diagram of the PIER-HVB-CE Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13...
  • Page 12 133 mm 13 mm 306 mm Ø 204 mm Ø 204 mm 1183 mm 305 mm 820 mm 1067 mm ELECTRICAL 114 mm ACCESS 882 mm 533 mm GAS LINE ACCESS 216 mm 58 mm 102 mm 919 mm 610 mm 64 mm 114 mm 121 mm...
  • Page 13 133 mm 13 mm Ø 204 mm 306 mm 305 mm 1082 mm 451 mm Ø 204 mm ELECTRICAL ACCESS GAS LINE ACCESS 1067 mm 456 mm 882 mm 64 mm 456 mm 245 mm 245 mm 254 mm 816 mm 612 mm 58 mm 184 mm...

  • Page 14: Step 1. Locating The Fireplace

    Installing the Fireplace Step 1. Locating the Fireplace Minimum Clearances The diagram below shows space and clearance require- from the Fireplace to Combustible Materials ments for locating a fireplace within a room. inches Glass Sides or Ends ..914 ..... 36 Floor ........0 ......
  • Page 15 The center of the hole is 25.4mm (one inch) above the center of the horizontal flue pipe. Framing should be constructed of 51 mm x 102 mm (2 in. x 4 in.) lumber or heavier. ST-HVB-CE PIER-HVB-CE L & R-COR-HVB-CE NOTE: DIMENSIONS SHOwN IN CENTIMETERS AND (INCHES). Model PIER-HVB-CE...
  • Page 16 102 mm 152 mm 305 mm DVP4 DVP6 DVP12 362 mm 310 mm MAX. 610 mm DVP12A 914 mm 51 mm MIN. 1219 mm 251 mm DVP24 º 261 mm DVP45 DVP36 286 mm 185 mm 32 mm DVP48 218 mm 18 mm 320 mm NOTE: PIPES OVERLAP 32 mm (1-1/4 in.) AT EACH JOINT.

  • Page 17: Step 3. Installing The Flue System

    Step 3. Installing the Flue System Identifying Flue Components The flue systems installed on this gas fireplace may include A. Flue System Approvals one, two, or three 90° elbow assemblies. The relationships These models are approved to use DVP series direct flue of vertical rise to horizontal run in flue configurations using pipe components and terminations (see Figures 6 and 7).
  • Page 18 STRAIGHT UP VERTICAL FLUEING V (FT.) 12.2M MAx. (40 FT.) TERMINATION CAP Figure 8 STRAIGHT OUT HORIZONTAL FLUEING Max. Run 610 mm (24 in.) Figure 9. Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13...
  • Page 19 NATURAL GAS - FLUEING wITH ONE 90° ELBOw V (FT.) H (FT.) 1’ MIN. (305 mm) 3’ MAX. (914 mm) 2’ MIN. (610 mm) 6’ MAX. (1.83 m) 3’ MIN. (914 mm) 9’ MAX. (2.7 m) 4’ MIN. (1.22 m) 12’...
  • Page 20 NATURAL GAS FLUEING wITH TwO 90° ELBOwS V (FT.) H + H (FT.) 1’ MIN. (305 mm) 3’ MAX. (914 mm) 2’ MIN. (610 mm) 6’ MAX. (1.83 m) 3’ MIN. (914 mm) 9’ MAX. (2.7 m) 4’ MIN. (1.22 m) 12’...
  • Page 21 NATURAL GAS PROPANE / BUTANE FLUEING wITH TwO 90° ELBOwS FLUEING wITH TwO 90° ELBOwS V (FT.) H + H (FT.) V (FT.) H + H (FT.) 1’ MIN. (305 mm) 3’ MAX. (914 mm) 1’ MIN. (305 mm) 2’ MAX. (610 mm) 2’...
  • Page 22 NATURAL GAS PROPANE / BUTANE FLUEING wITH THREE 90° ELBOwS FLUEING wITH THREE 90° ELBOwS V + V (FT.) H + H (FT.) V + V (FT.) H + H (FT.) 1’ MIN. (305 mm) 3’ MAX. (914 mm) 1’ MIN. (305 mm) 2’...
  • Page 23 NATURAL GAS PROPANE / BUTANE FLUEING wITH THREE 90° ELBOwS FLUEING wITH THREE 90° ELBOwS V + V (FT.) H + H (FT.) V + V (FT.) H + H (FT.) 1’ MIN. (305 mm) 3’ MAX. (914 mm) 1’ MIN. (305 mm) 2’...

  • Page 24: Installing Flue Components

    B. Installing Flue Components HEAT After determining which direction the 45 elbow will be ARROWS SHIELD used follow flueing instructions accordingly. • This fireplace comes ready to flue horizontally. Before attaching additional flue pipe, inspect 45 elbow connection to unit starting collar, if required, snap in place.
  • Page 25 2. Continue Adding Flue Components HEAT SHIELD Refer to Cinch Pipe and Termination Cap installation in- TRIM HEAT SHIELD IF TOO structions. LONG, ADD TO SHIELD IF TOO • Continue adding flue components, locking each succeed- SHORT ing component into place. •...

  • Page 26: Flue Termination

    If the area above the ceiling is NOT an attic, position C. Flue Termination and secure the ceiling firestop on the ceiling side of the For Horizontal Terminations - To attach and secure the previously cut and framed hole. termination to the last section of horizontal flue refer to the Cinch Pipe and Termination Cap installation instructions.
  • Page 27 For Vertical Terminations - To locate the flue and install To seal the roof hole, and to divert rain and snow from the the flue sections: flue system: • Locate and mark the flue centerpoint on the underside • Attach a flashing to the roof using nails, and use a non- of the roof, and drive a nail through the centerpoint.
  • Page 28 (See Note 2) See Notes 3 & 4 Electrical Service = VENT TERMINAL = AIR SUPPLy INLET = AREA wHERE TERMINAL IS NOT PERMITTED = 91.4 m .....clearance to a mechanical = 30.5 cm ....clearances above grade, veranda, (powered) air supply inlet porch, deck or balcony (See Note 1) = 2.1 m .......c l e a r a n c e a b o v e p a v e d...

  • Page 29: Step 4. Positioning, Leveling, And Securing The Fireplace

    Step 4. Positioning, Leveling, and Securing Step 5. The Gas Control System the Fireplace wARNING: THIS UNIT IS NOT FOR USE wITH The diagram below shows how to properly position, level, SOLID FUEL. and secure the fireplace. Standing Pilot Flame Sensor Rod NAILING TABS (BOTH SIDES) Figure 28.

  • Page 30: Step 6. The Gas Supply Line

    Step 6. The Gas Supply Line • Insert insulation from the outside of the fireplace and pack the insulation tightly to totally seal between the pipe and NOTE: Have the gas supply line installed in accordance the outer casing. with local building codes by a qualified installer •...

  • Page 31: Step 8. Wiring The Fireplace

    EDGE 153 mm 407 mm 127 mm 381 mm 0 mm GAG 102 mm 356 mm 77 mm 331 mm PIER-HVB-CE and L/RCOR-HVB-CE 305 mm 51 mm 280 mm 25.4 mm 254 mm EDGE 229 mm 204 mm 178 mm...

  • Page 32: Step 10. Installing Trim, Logs & Ember Material

    ROOM AS THE APPLIANCE. Log placement Log Set Assembly: LOGS-ST-CE Only for Models: ST-HVB-CE, PIER-HVB-CE and RCOR-HVB-CE TABS 1 2 3 CAUTION: Logs are fragile. Carefully remove the logs from the packaging. Logs #4 and #5 are the same log.
  • Page 33 LOG #1 (SRV2068-700): Place log #1 behind grate tabs on the second and third grate bars on the left rear corner. Position so that the bottom grooves fit over bars and the log is snug against the grate tabs. LOG #2 (SRV2068-701): Locate log #2 in left front corner of the log grate using bottom grooves for placement. Push log against grate tabs on first and second bars.
  • Page 34 LOG #4 (SRV2068-703): Place log #4 in the right rear corner of the log grate using bottom grooves for placement. Align log #4 by using the grate corner and rear cross bar as stops. LOG #5 (SRV2068-703): Place log #5 on top of flat spot on log #1 and against the inside of log #2. Be careful not to reposition log #2 when placing this log.
  • Page 35 Only for Model: LCOR-HVB-CE TABS CAUTION: Logs are fragile. Carefully remove the logs from the packaging. Logs #4 and #5 are the same log. See Service Parts pages for individual assembly photos. LOG #1 (SRV2068-700): Place log #1 in front of grate tabs on the third and fourth grate bars on the right front corner.
  • Page 36 LOG #3 (SRV2068-702): Position log #3 across the first, second and third grate bars and pull towards the front against the grate tabs on bars one and three. LOG #4 (SRV2068-703): Place log #4 in the left front corner of the log grate using bottom grooves for placement. Align log #4 by using the grate corner and front cross bar as stops.

  • Page 37: Placing The Ember Material

    LOG #6 (SRV582-705): Position log #6 on top of the groove in log #3 with the forked end resting on the grate assembly as shown. Placing the Ember Material Ember material is shipped with this gas fireplace. To place the ember material: LATCHES (BOTH TOP AND BOTTOM)

  • Page 38: Step 11. Before Lighting The Fireplace

    Step 11. Before Lighting the Fireplace During this break-in period it is recommended that some windows in the house be opened for air circulation. This will wARNING help avoid setting off smoke detectors, and help eliminate any odors associated with the fireplace’s initial burning. HOT SURFACES! Glass and other surfaces are hot during operation AND cool down.

  • Page 39: Maintaining And Servicing Your Fireplace

    Maintaining and Servicing your Fireplace Fireplace Maintenance Although the frequency of your appliance servicing and STANDING PILOT maintenance will depend on use and the type of installation, you should have a qualified service technician perform an appliance check-up at the beginning of each heating sea- son.
  • Page 40 Troubleshooting With proper installation, operation, and maintenance the gas fireplace will provide years of trouble-free service. If you do experience a problem, this trouble shooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken.
  • Page 41 Troubleshooting continued Symptom Possible Cause Corrective Action 4. Frequent pilot a. Pilot flame may be too outage problem. high or too low, or blowing Clean and adjust the pilot flame for maximum flame impingement on thermocouple. Follow lighting instructions carefully. (high), causing pilot safety to drop out 5.
  • Page 42 Limited Lifetime Warranty Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
  • Page 43 WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...
