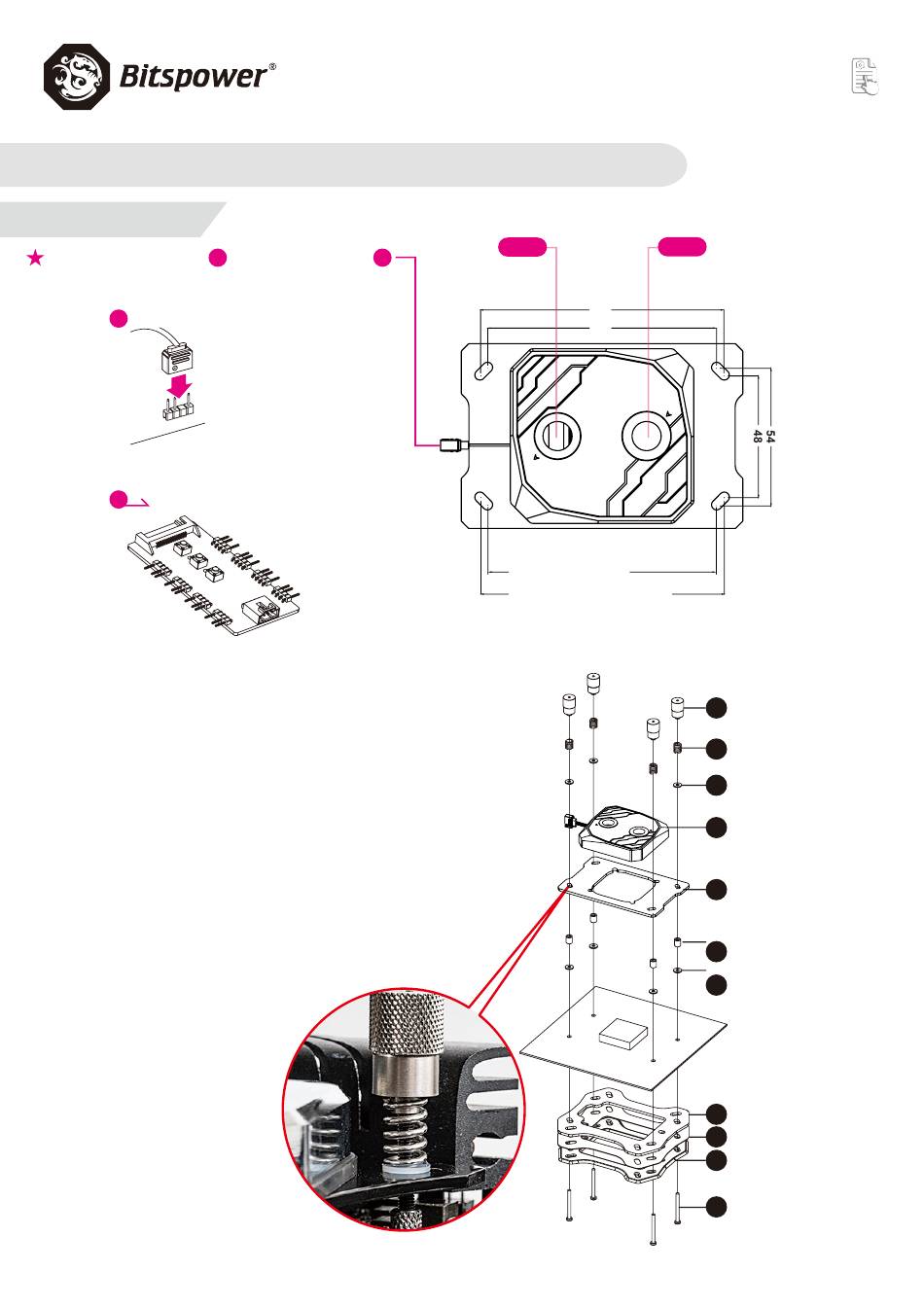

Bitspower BPTA-CPUMS-V2-SKA Instruction Manual

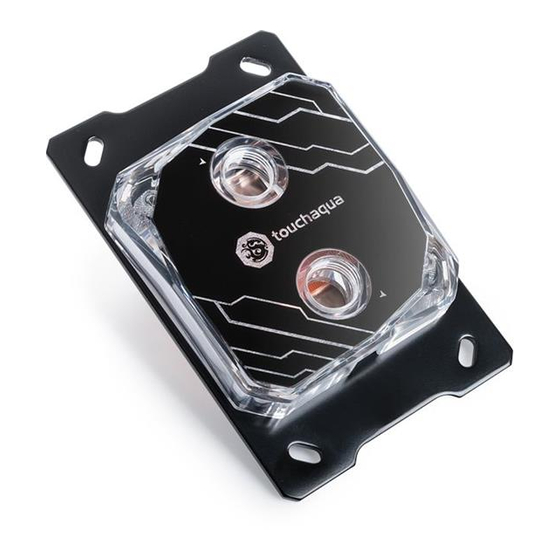

Bitspower CPU Block Summit MS ( AMD )

AM4
Digital RGB PIN on 1
other equipment.
1
motherboard
2 BPTA-DRGBMFC
DRGB Multi Function Controller(Not included)
Follow the right sequence to install.
The thumb screw cannot be locked too tightly, the spring is slightly
pressed and the gap is kept as shown below. The thumb screw cannot
be rotated to the end. When the spring screws too tight, the SCM3F6
screw will be driven and will be taken away from the motherboard,
which will cause the water block and CPU not to be closed well.
motherboard or 2
OUT
96
90
AMD SOCKET AM4
AMD SOCKET AM3 / AM3+
AMD SOCKET AM2 / AM2+
AMD SOCKET FM1 / FM2+
[ 1 ]
instruction manual
V2
IN
AMD SOCKET 939 / 754 / 940
AMD SOCKET AM4
AMD SOCKET AM3 / AM3+
AMD SOCKET AM2 / AM2+
AMD SOCKET FM1 / FM2+
1
Thumb screw
2
SPRING
3
1mm SPACER
4
CPU Block
5
CPU Block PLATE(AM4)
6
Thumb Nut
7
1mm SPACER
8
Back Pad
9
3M Paste Pad
10
Metal Backplane
11
M3x32mm screw
