Read these instructions completely and carefully.
Replace the Power Cord (Optional) Continued
Perform this step only if the power cord shipped on the range does not match your wall receptacle.
3-Wire Power Cord Installation Option
WARNING:
wire of the power cord must be connected to
the neutral terminal located in the center of
the terminal block. The power leads must be
connected to the lower left and the lower right
terminals of the terminal block.
Locate the copper ground strap on the
lower back of the range.
Loosen the upper center screw on the
terminal block.
Slide the open slotted end of the ground strap
under the upper center screw on the terminal
block. Make sure the ground strap is all the
way against the upper center screw and
tighten it in place.
Place the ground plate (removed earlier) over
the bottom of the ground strap, press them
against the range frame and attach them
with the ground screw (removed earlier).
Insert the new power cord through the strain
relief. Allow enough slack to easily attach the
wires to the terminal block.
Insert the 3 terminal screws (removed earlier)
through each power cord terminal ring and
into the lower terminals of the terminal block.
Be certain that the center wire (white/neutral)
is connected to the center lower position of
the terminal block. Tighten screws securely
(approximately 20 inch-lbs.) into the terminal
block.
Secure the strain relief in place in the bracket
by tightening the strain relief screws.

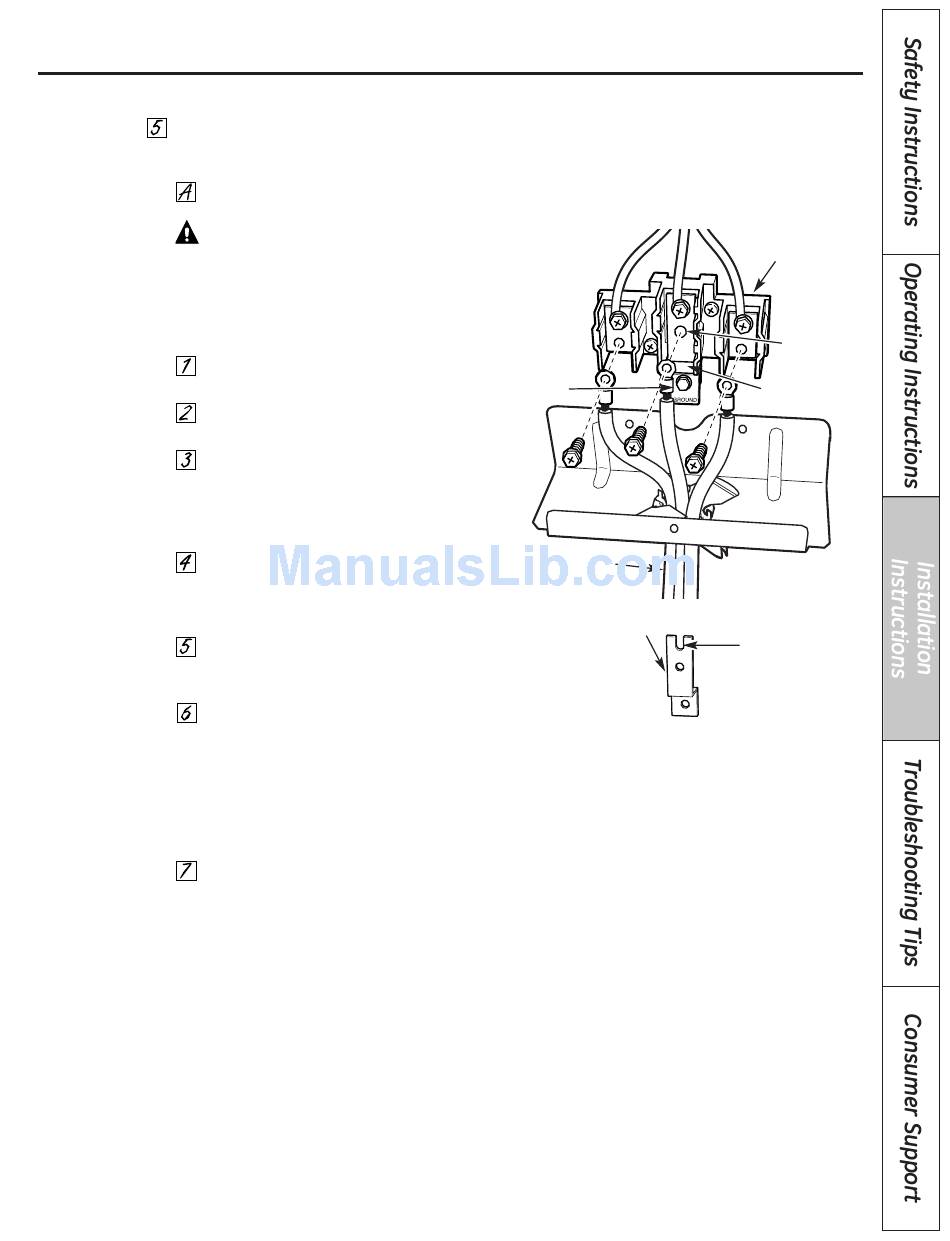

The neutral or ground
Ground
plate
Power cord
Ground strap
Terminal block
(appearance
may vary)
Neutral
terminal
Ground strap
Open slotted end
