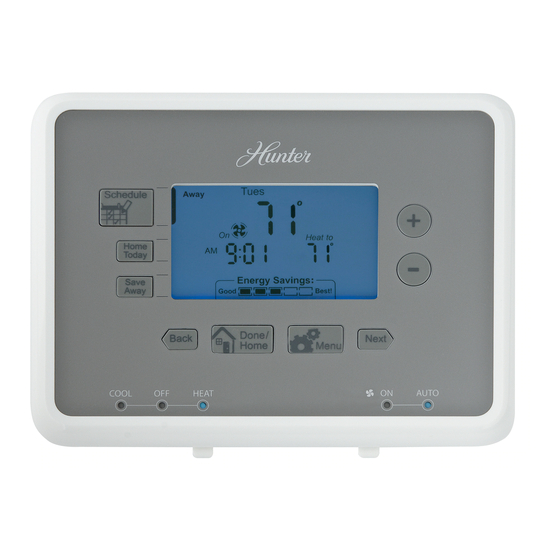

Hunter 44372 Owner's Manual
  1. Manuals
  2. Brands
  3. Hunter Manuals
  4. Thermostat
  5. 44372
  6. Owner's manual

Hunter 44372 Owner's Manual

Hide thumbs Also See for 44372:
Table of Contents

Advertisement

Quick Links

Owner's Manual
5 MINUTE
I N S T A L L A T I O N
M T W T F S S
All manuals and user guides at all-guides.com
7 Day Programmable
Model
44372
44377
Form# 44040-01
20100511
©2010 Hunter Fan Co.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 44372 and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter 44372

Summary of Contents for Hunter 44372

  • Page 1 All manuals and user guides at all-guides.com Owner’s Manual Model 44372 44377 5 MINUTE I N S T A L L A T I O N Form# 44040-01 7 Day Programmable 20100511 M T W T F S S ©2010 Hunter Fan Co.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table Of Contents At A Glance Know Your Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Setup Setting Day and Time .

  • Page 3: At A Glance

    The features section starting on page 32 of this manual will describe these settings. Most setting have been preset for optimal performance. If you need any assistance with installion or setup of your new Hunter Thermostat, please call us, our technical support staff are ready to help!
  • Page 4 All manuals and user guides at all-guides.com At A Glance Know Your Thermostat 1. Enters Schedule Setup for altering scheduled programs. 2. Sets the Home Today feature for when you are home during a regularly scheduled Away period. 3. Sets the Save Away feature for when you will not be home during a regularly programmed time.
  • Page 5 All manuals and user guides at all-guides.com At A Glance Know Your Thermostat Done/ Home ©2010 Hunter Fan Company...
  • Page 6 All manuals and user guides at all-guides.com At A Glance Know Your Thermostat 1. Holds 2 “AA” Batteries. 2. HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of system you have. 3.
  • Page 7 All manuals and user guides at all-guides.com At A Glance Know Your Thermostat ©2010 Hunter Fan Company...
  • Page 8 All manuals and user guides at all-guides.com At A Glance Know Your Thermostat 1. Shows the current day of the week or weekend. 2. Indicates the thermostat is running in schedule mode. 3. Flashes when the furnace filter should be checked for replacement. 4.
  • Page 9 All manuals and user guides at all-guides.com At A Glance Know Your Thermostat Filter Auto At Home Aux Em. Heat to Check H.P.! Hours Energy Savings: Lock Good Best! ©2010 Hunter Fan Company...

  • Page 10: Setup

    All manuals and user guides at all-guides.com Setup Setting Day and Time Once you install the batteries, the thermostat will prompt you to set the current day and time. 1. You will notice that “Mon” will be flashing at the top left of your screen. Use the buttons to move to your current day of the week and press the button to Next...
  • Page 11 Today Save Save Away Away Done/ Back Next Done/ Back Next Home Menu Home Menu Schedule Schedule Updated! Home Home Today Today Save Save Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...

  • Page 12: Scheduling

    All manuals and user guides at all-guides.com Scheduling Scheduling Introduction Read the scheduling section thoroughly to ensure you understand your scheduling options and which will best fit with your lifestyle. The following notes should help you with scheduling: * The schedule time can be set in 15 minute increments, and remains the same for both Heat and Cool programs.

  • Page 13: Personal Scheduling Charts

    Start Time: Start Time: Heat Temp: Sunday End Time: End Time: Heat Temp: Heat Temp: Cool Temp: Cool Temp: Cool Temp: Note: Use a pencil so these records may be changed at a later time if necessary. ©2010 Hunter Fan Company...

  • Page 14: Setting Your Schedule

    All manuals and user guides at all-guides.com Scheduling Setting Your Schedule 1. Press the Button to enter Scheduling mode. Schedule 2. Use the buttons to select “On” and then to move forward to Scheduling. Next Note: If you do not wish to use the scheduling option on your thermostat, refer to page 22, step 2. 3.
  • Page 15 Next Back Next Home Menu Home Menu Tues Schedule Schedule Away Asleep At Home Home Home Today Today Save Save Energy Savings: Away Away Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...
  • Page 16 All manuals and user guides at all-guides.com Scheduling Setting Your Schedule 6. Set the temperature for your heating cycle as indicated by the flashing ”Heat to” icon on your screen. Use the buttons to change the temperature and press . You will Next be asked to set your cooling cycle, indicated by the flashing “Cool to”.
  • Page 17 Home Menu Schedule Schedule Away Asleep At Home Schedule Updated! Home Home Heat to Today Today Cool to Save Save Energy Savings: Away Away Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...
  • Page 18 All manuals and user guides at all-guides.com Scheduling Setting Your Schedule 10. The day select screen will now show “Copy Day” and ask you if you wish to copy the day you just scheduled to any other days. Select “YES” and or see step 13 for selecting Next “NO”.
  • Page 19 Save Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu Tues Schedule Schedule Schedule Updated! Home Home Today Today Save Save Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...

  • Page 20: Temporary Temperature Change

    All manuals and user guides at all-guides.com Scheduling Temporary Temperature Change With Temporary Temperature Change you have the ability to alter the temperature for only the current running schedule for one day. 1. Press the button once to activate the screen, the backlight will come on. 2.
  • Page 21 Next Home Menu Home Menu Schedule Schedule At Home Auto Schedule On Home Home Heat to Today Today Save Save Energy Savings: Away Away Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...

  • Page 22: Turning Off Scheduling

    All manuals and user guides at all-guides.com Scheduling Turning Off Scheduling To turn off your schedule and have the thermostat permanently set to one temperature: 1. Press the button once. Schedule 2. Use the button to switch to Off and select Done/ Home 3.
  • Page 23 Schedule On Home Home Heat to Today Today Save Save Energy Savings: Away Away Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu Schedule Updated! Home Today Save Away Done/ Back Next Home Menu ©2010 Hunter Fan Company...

  • Page 24: Home Today

    All manuals and user guides at all-guides.com Scheduling Home Today The Home Today feature allows you to override your schedule for 1 day. It can be used for example if you are home on a day when you would normally have the thermostat‘s “Away”...
  • Page 25 Heat to Today Today Save Save Energy Savings: Energy Savings: Away Away Good Best! Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu Schedule Updated! Home Today Save Away Done/ Back Next Home Menu ©2010 Hunter Fan Company...

  • Page 26: Save Away

    All manuals and user guides at all-guides.com Scheduling Save Away The Save Away feature allows you to set a lower or higher temperature for the time you will be away from your home outside of your normal Away schedule. This can include days you will be away for vacation, or a few hours away from your home.
  • Page 27 Today Today Hours Save Save Energy Savings: Energy Savings: Away Away Good Best! Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu Schedule Updated! Home Today Save Away Done/ Back Next Home Menu ©2010 Hunter Fan Company...

  • Page 28: Features

    All manuals and user guides at all-guides.com Features Alerts This chapter will outline the various alerts the thermostat will report to you and how to respond to them. 1. Low Battery: This icon will appear when your batteries are starting to run low on power and should be changed to avoid system interruptions, (Figure 1) Change the batteries by gripping the sides of the thermostat firmly and pulling straight back, (Figure 1a).

  • Page 29: Alerts

    Best! Done/ Back Next Home Menu Schedule Schedule Filter At Home Auto Home Home Heat to Today Today Save Save Energy Savings: Away Away Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...
  • Page 30 All manuals and user guides at all-guides.com Features Alerts 3. Auxiliary Heat: On multi-stage heat pumps this alert indicates your second stage heat is running. 4. Check System: Some heat pump systems are equipped with the ability to check system performance, indicated by the presence of an “L” wire attached to the mounting plate.
  • Page 31 Auto Auto Aux Em. Home Home Heat to Heat to Today Today Check H.P.! Save Save Energy Savings: Energy Savings: Away Away Good Best! Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...
  • Page 32 All manuals and user guides at all-guides.com Features Menu Options Under your menu options you have the ability to reset your filter counter, change your day/time , span settings, temperature measurement, as well as locking the thermostat. After making changes to each menu option, the thermostat will show “Updated” and save your changes.

  • Page 33: Menu Options

    Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu Schedule Schedule Reset Filter Set Day/Time Home Home Today Today Save Save Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...
  • Page 34 All manuals and user guides at all-guides.com Features Menu Options 5. SPAN 1: The next menu option is to set your thermostats primary span. Use the buttons to adjust between 1, 2, or, 3 degrees. Press , the screen will flash Next “Updated”...
  • Page 35 Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu Schedule Schedule Home Home Span 3 Today Today Temp F/C Save Save Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...
  • Page 36 All manuals and user guides at all-guides.com Features Menu Options 1. LOCk/UNLOCk: Allows you to lock the thermostat so random keypress’ will not change your settings. Use the buttons to change between “YES” and “NO”. Choose “YES” to lock the thermostat or “NO” to keep the thermostat unlocked. Press , the screen will flash “Updated”...
  • Page 37 Home Menu Schedule Schedule Reset Filter Set Day/Time Span 1 Span 2 Home Home Span 3 Today Today Temp F/C Save Save Lock Lock Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...

  • Page 38: Energy Saver Bar

    All manuals and user guides at all-guides.com Features Energy Saver Bar The Energy Saver Bar indicates estimated energy savings. The preset schedules in the thermostat have been designed to give you optimal energy savings, five bars. Altering these schedules has a direct impact on the energy saver indicator. Altering the temperatures and/or times that the schedules run could decrease the estimated energy savings.
  • Page 39 At Home At Home Auto Auto Home Home Heat to Heat to Today Today Save Save Energy Savings: Energy Savings: Away Away Good Best! Good Best! Done/ Done/ Back Next Back Next Home Menu Home Menu ©2010 Hunter Fan Company...

  • Page 40: Additional Features

    All manuals and user guides at all-guides.com Features Additional Features Armchair Programming There is no need to stand at the wall where the thermostat is mounted while programming or changing settings. Simply remove the thermostat from the wall and make the necessary changes in the comfort of a chair.

  • Page 41: Thermostat Assistance

    3. Make sure the thermostat is set to the proper day. Problem: Auto / Fan does not turn on. Solution: 1. Move HG/HE switch to opposite position. 2. Check the fan setting and make sure that it is not set to off. ©2010 Hunter Fan Company...
  • Page 42 All manuals and user guides at all-guides.com Thermostat Assistance Troubleshooting and Support Problem: Fan runs continuously. Solution: 1. Check fan setting to see if it is set to on. 2. Move HG/HE switch to opposite position. Problem: Heating or cooling does not turn on or off. Solution: 1.

  • Page 43: Technical Support

    All manuals and user guides at all-guides.com Thermostat Assistance Troubleshooting and Support Technical Support If you need any assistance with installion or setup of your new Hunter Thermostat, please call us, our technical support staff is ready to help! USA: 1-888-830-1326 Canada: 1-866-268-1936 Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on Saturday, Central Time.

  • Page 44: Warranty

    IN RESPECT TO YOUR HUNTER THERMOSTAT IS LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. This warranty is voided if your Hunter Thermostat is not purchased and used in the USA. This warranty excludes and does not cover defects, malfunctions or failures or...
  • Page 45 1 Year Guarantee Suite 400, Memphis, TN 38016. You will be responsible for all insurance and freight or other transportation charges to our factory. We will return your Hunter Thermostat freight prepaid. Your Hunter Thermostat should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
