5.4

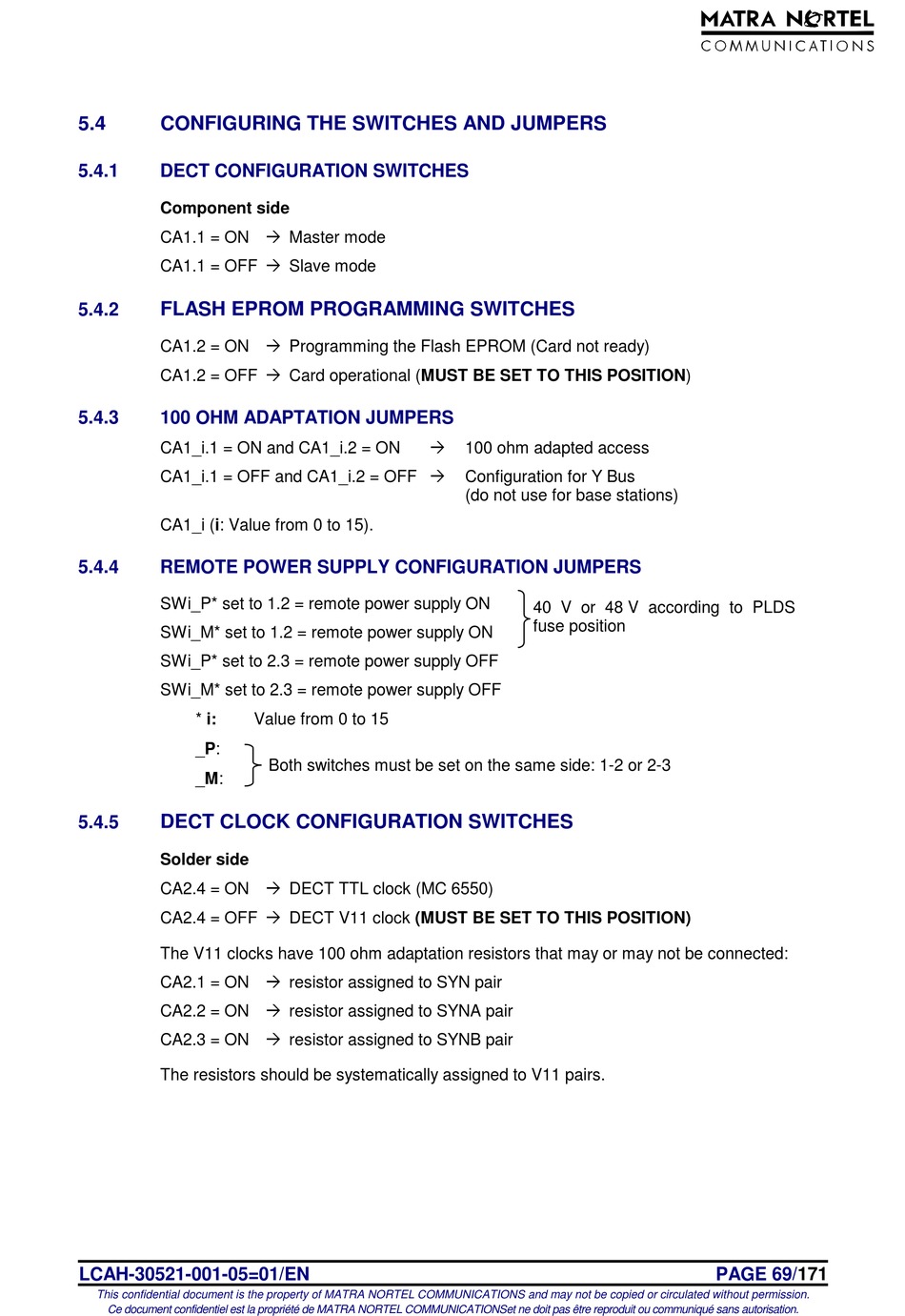

CONFIGURING THE SWITCHES AND JUMPERS

5.4.1

DECT CONFIGURATION SWITCHES

Component side
CA1.1 = ON " Master mode
CA1.1 = OFF " Slave mode

FLASH EPROM PROGRAMMING SWITCHES

5.4.2
CA1.2 = ON " Programming the Flash EPROM (Card not ready)
CA1.2 = OFF " Card operational (MUST BE SET TO THIS POSITION)
5.4.3

100 OHM ADAPTATION JUMPERS

CA1_i.1 = ON and CA1_i.2 = ON
CA1_i.1 = OFF and CA1_i.2 = OFF "
CA1_i (i: Value from 0 to 15).
5.4.4

REMOTE POWER SUPPLY CONFIGURATION JUMPERS

SWi_P* set to 1.2 = remote power supply ON
SWi_M* set to 1.2 = remote power supply ON
SWi_P* set to 2.3 = remote power supply OFF
SWi_M* set to 2.3 = remote power supply OFF
* i:
_P:
_M:

DECT CLOCK CONFIGURATION SWITCHES

5.4.5
Solder side
CA2.4 = ON " DECT TTL clock (MC 6550)
CA2.4 = OFF " DECT V11 clock (MUST BE SET TO THIS POSITION)
The V11 clocks have 100 ohm adaptation resistors that may or may not be connected:
CA2.1 = ON " resistor assigned to SYN pair
CA2.2 = ON " resistor assigned to SYNA pair
CA2.3 = ON " resistor assigned to SYNB pair
The resistors should be systematically assigned to V11 pairs.
LCAH-30521-001-05=01/EN
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONSet ne doit pas être reproduit ou communiqué sans autorisation.
Value from 0 to 15
Both switches must be set on the same side: 1-2 or 2-3
"
100 ohm adapted access
Configuration for Y Bus
(do not use for base stations)
40 V or 48 V according to PLDS
fuse position
PAGE
69/171
