LinkAYL LK-CP63X Series Quick Start Manual

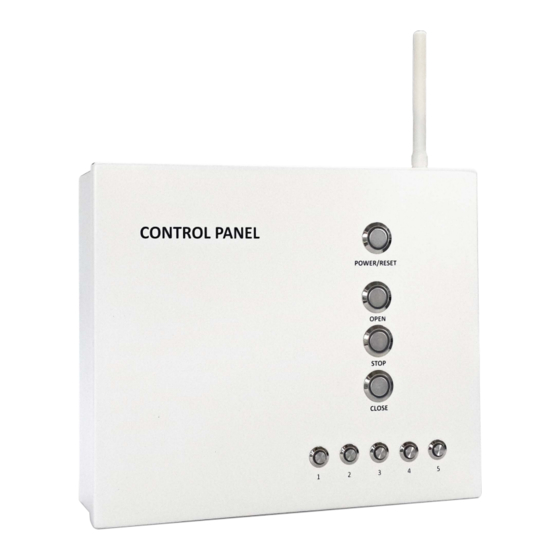

LK-CP63X SERIES CONTROL PANEL

Feature

 The controller consists of a built-in switching power supply, a main control board,
a driver board and a connecting board
 Single Channel, dual Channel, 5 Channel and cascade controls
 Power indicator/reset, Open/Stop/Close & channel selection buttons with backlight
 Can handle external input signals of Manual Switch, Remote Control, Timer
Smoke/Gas/Wind & Rain /Temperature & Humidity Sensors
 Output fire feedback signal to fire centre
 Switching power supply 10A/15A/20A/25A optional

Specification

Input Output Output Working
Voltage Voltage Current Frequency
AC120V DC12V
10-25A 433.92 MHz
AC230V DC24V
Receiving Working
Dimension
Sensitivity Temperature
-100 dBm -20～ +65℃ 272*228*73mm

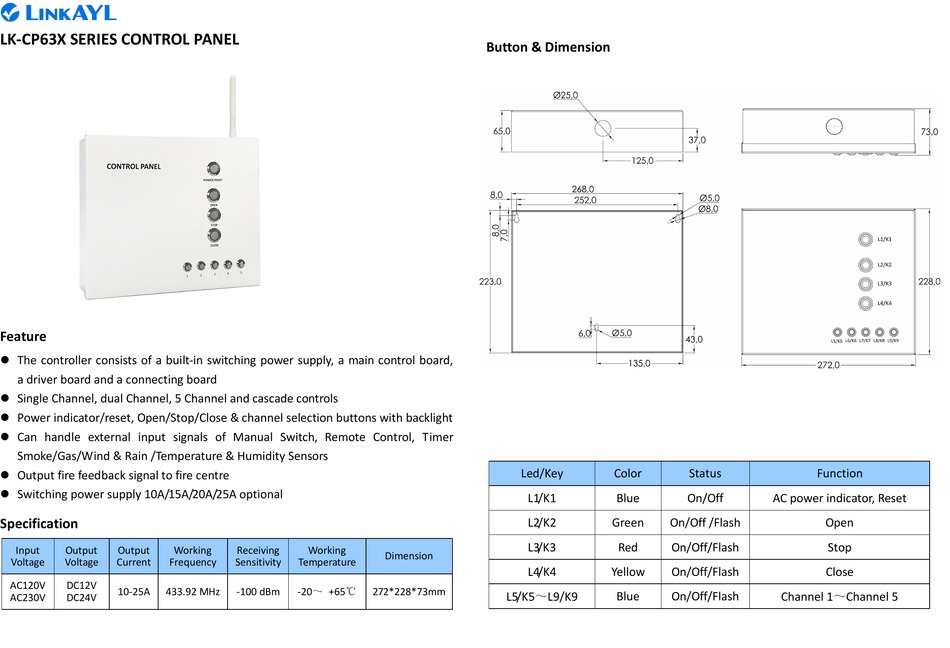

Button & Dimension
Led/Key Color
L1/K1 Blue
L2/K2 Green
L3/K3 Red
L4/K4 Yellow
L5/K5～L9/K9 Blue
Status Function
On/Off AC power indicator, Reset
On/Off /Flash Open
On/Off/Flash Stop
On/Off/Flash Close
On/Off/Flash Channel 1～Channel 5
