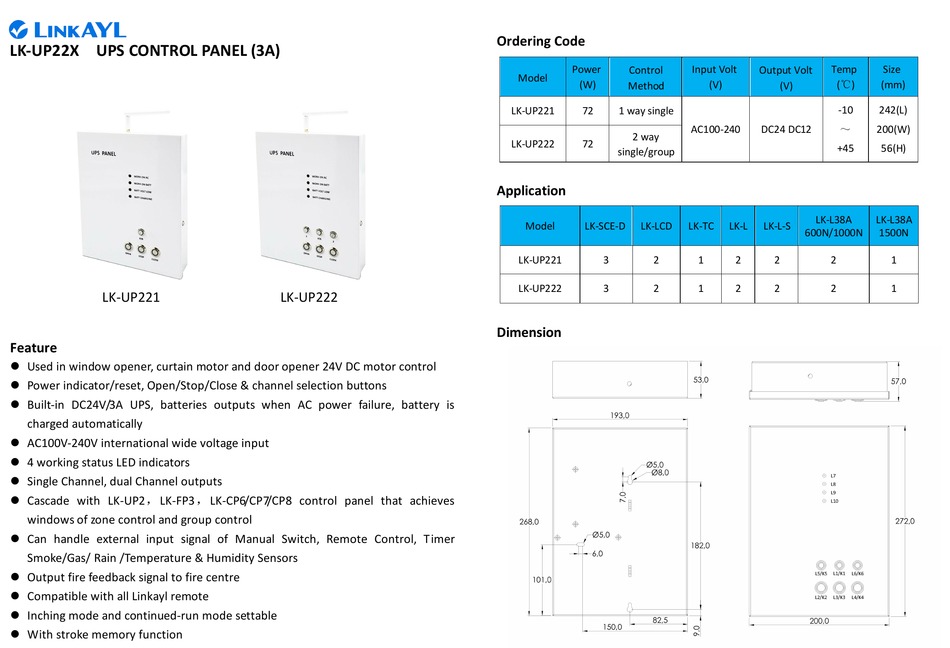

LinkAYL LK-UP22 Series Manual

LK-UP22X UPS CONTROL PANEL (3A)
LK-UP221

Feature

 Used in window opener, curtain motor and door opener 24V DC motor control
 Power indicator/reset, Open/Stop/Close & channel selection buttons
 Built-in DC24V/3A UPS, batteries outputs when AC power failure, battery is
charged automatically
 AC100V-240V international wide voltage input
 4 working status LED indicators
 Single Channel, dual Channel outputs
 Cascade with LK-UP2，LK-FP3 ，LK-CP6/CP7/CP8 control panel that achieves
windows of zone control and group control
 Can handle external input signal of Manual Switch, Remote Control, Timer
Smoke/Gas/ Rain /Temperature & Humidity Sensors
 Output fire feedback signal to fire centre
 Compatible with all Linkayl remote
 Inching mode and continued-run mode settable
 With stroke memory function
LK-UP222

Ordering Code

Power
Control
Model
(W)
Method
LK-UP221 72 1 way single
2 way
LK-UP222 72
single/group

Application

Model LK-SCE-D LK-LCD
LK-UP221 3 2
LK-UP222 3 2

Dimension

Input Volt Temp
Output Volt
(V) (℃)
(V)
-10
AC100-240 DC24 DC12
～
+45
LK-L38A
LK-TC LK-L LK-L-S
600N/1000N
1 2 2 2
1 2 2 2
Size
(mm)
242(L)
200(W)
56(H)
LK-L38A
1500N
1
1
