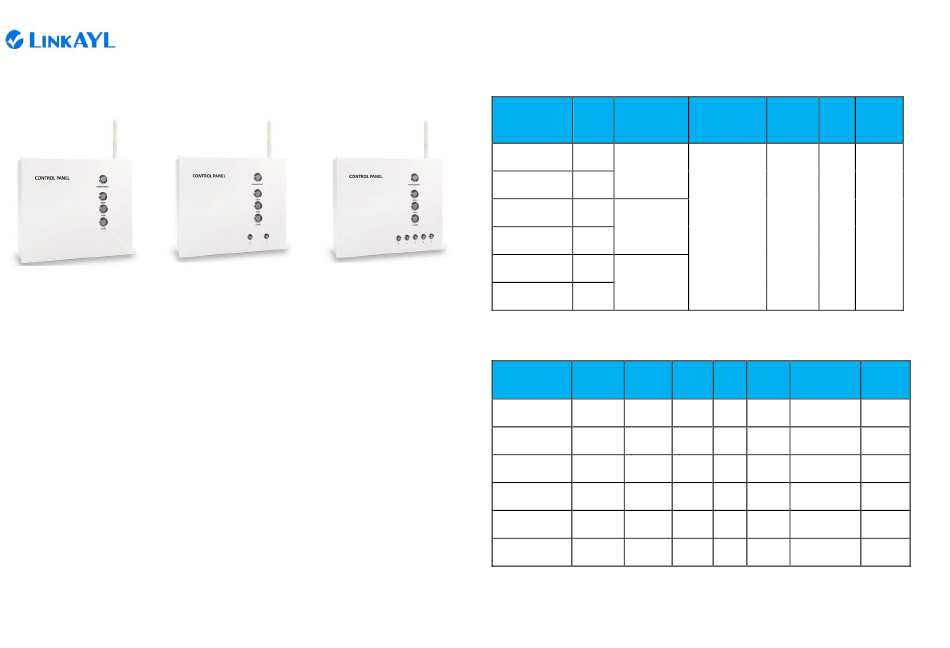

LinkAYL LK-CP62 Series Quick Start Manual

LK‐CP62X SERIES CONTROL PANEL
LK‐CP621 LK‐CP622 LK‐CP625
Feature
 Controller is used in window opener, curtain motor and door opener 24V DC motor
control
 Power indicator/reset, Open/Stop/Close & channel selection buttons with backlight
 Single Channel, dual Channel, 5 Channel and cascade controls
 Cascade control can be cascaded with LK‐UP2, LK‐FP3, LK‐CP6/CP7/CP8 that
achieves windows of zone control and group control
 Can handle external input signal of Manual Switch, Remote Control, Timer
Smoke/Gas/ Rain /Temperature & Humidity Sensors
 Output fire feedback signal to fire centre
 Compatible with all Linkayl remote
 Inching mode and continued‐run mode settable
 With stroke memory function
 Built‐in switching power supply 30A /40A
Model List
Power
Model
(W)
LK‐CP621‐30A 720
1 way single
LK‐CP621‐40A 960
LK‐CP622‐30A 720
single/group
LK‐CP622‐40A 960
LK‐CP625‐30A 720
single/group
LK‐CP625‐40A 960
Application
Model LK‐SCE‐D
LK‐CP621‐30A 25
LK‐CP621‐40A 33
LK‐CP622‐30A 25
LK‐CP622‐40A 33
LK‐CP625‐30A 25
LK‐CP625‐40A 33
Control Input Volt Output
Method (V) Volt (V)
DC24
2 way
AC110/AC230
DC12
5 way
LK‐L38A
LK‐LCD LK‐TC LK‐L LK‐L‐S
600N/1000N
15 7 15 15
20 10 20 20
15 7 15 15
20 10 20 20
15 7 15 15
20 10 20 20
Temp Size
(℃) (mm)
‐20 292(L)
～
258(W)
+65 87(H)
LK‐L38A
1500N
15 10
20 13
15 10
20 13
15 10
20 13
