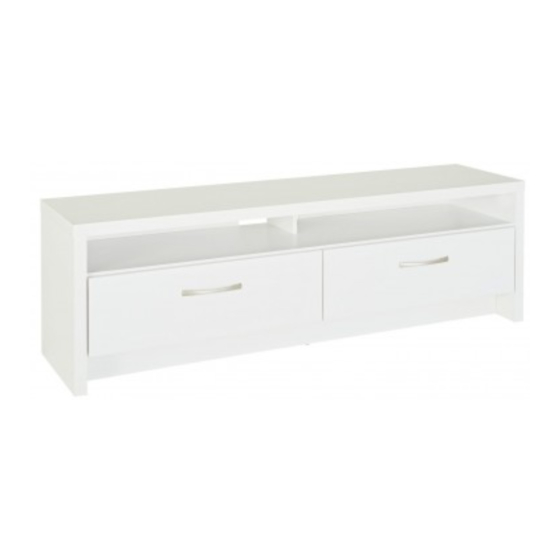

Venice - 1500 Wide TV Unit

Assembly Instructions - Important:Retain these instructions

In order to prevent overturning, this product must be

used with the wall attachment device provided

Dimensions

Width - 152.3cm

Depth - 39.1cm

Height - 47.1cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, please visit www.argos-support.co.uk

or email: Help@ClickSpares.co.uk (quoting your original order number)

Alternatively, call the Spares Helpline on: 0330 016 1114

For any other queries please contact the Customer Helpline on: 0345 640 2020

for future reference

WARNING!

More help is available throughout this

booklet by scanning in the QR codes

or typing in the links

C R

806/9627

804/8411

803/8304

C R

MADE IN

BRITAIN

Issue 6 - 20/11/19

Need help?

Do you have a question about the Home Venice 806/9627 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Home Venice 806/9627

Page 1 Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0330 016 1114...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Parts of the assembly will be • We do not approximately 36kgs. easier with 2 people. recommend the Please lift with care. use of power •...
Page 3 Components - Panels Please check you have all the panels listed below Left Side Right Side Divider Small Divider (DF-00012879) (DF-00012880) (DF-00012884) (DF-00017805) (43.6 x 38.9cm) (43.6 x 38.9cm) (20.4 x 36.7cm) (10.6 x 19.3cm) Back (DF-00012878) (X624-346) (152.3 x 39.1cm) (62.4 x 34.6cm) Fixed Shelf (DF-00012883)
Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Bag 2 Small locking cam Metal dowel (F901) Knock-in Peg...
Page 5 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Individual Fittings Bags 336mm long Drawer Brace (F420) 350mm long...
Page 6 Assembly Instructions Step 1 Step 1 Use the Bag 2 for Steps 1 - 8 Standard Drawer Box Assembly Prepare the left and https://www.youtube.com/watch?v=HclfJdkm-Lg right drawer front Screw 2 metal dowels into each of the 2 drawer fronts Note: Tighten the metal dowels up fully against the panels.
Page 7 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
Page 8 Assembly Instructions Step 7 Fit the drawer braces Turn the 2 drawer assemblies over and hook a drawer brace onto the bottom edge of the drawer back Fix it to the drawer front . and drawer back using 2 screws Fixing Bottom Mounted Runners Step 8 https://www.youtube.com/watch?v=Z6lGMy19h7Q...
Page 9 Assembly Instructions Step 9 Use the Bag 1 for Steps 9 - end Fixing Bottom Mounted Runners Prepare the right side https://www.youtube.com/watch?v=Z6lGMy19h7Q Fit a CR runner to the right side screw The 1st screw uses the 1st hole in from the front of the runner.
Page 10 Assembly Instructions Step 10 Prepare the top Screw 6 small metal dowels into the holes in the top Fit the bracket from the overbalance protector kit to the shallow mark-hole drilled into the using 1 of its screws. Note: Only fit 1 of the screws, the other 1 will Finished be fitted later.
Page 11 Assembly Instructions Step 12 Prepare the fixed shelf Tap 4 wooden dowels into the fixed shelf Insert 4 large locking cam nuts into the fixed shelf Finished front edge Screw 2 metal dowels into the fixed shelf Step 13 Turn the fixed shelf Turn the fixed shelf over over Finished...
Page 12 Assembly Instructions Step 15 Finished screw Prepare the divider front edge Fit a CL runner to the divider The 1st screw uses the 1st hole in from the front of the runner. Bradawl Finished The 2nd and 3rd screws front edge use the holes that line up with the other panel holes.
Page 13 Assembly Instructions Step 16 Fit the divider to the fixed shelf Fit the divider onto the fixed shelf Use a screwdriver to tighten the 2 large locking cam nuts fitted to the divider Finished Note: Turn the large front edge locking cam nuts far as they will go - more than 1/2 a turn.
Page 14 Assembly Instructions Step 19 Prepare the back rail Tap 2 wooden dowels into the back rail Insert 2 large locking cam nuts into the back rail Step 20 Fit the back rail Push the back rail onto the right side Use a screwdriver to tighten the large locking cam nut...
Page 15 Assembly Instructions Step 22 screw Prepare the left side Finished front edge Fit a CL runner to the left side The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
Page 16 Assembly Instructions Step 23 Fit the 2 plinth rails Push the 2 plinth rails onto the right side Use a screwdriver to tighten the large locking cam nut fitted to each plinth rail Note: Support the 2 plinth rails until the left side has been fitted in the next step.
Page 17 Assembly Instructions Step 25 Prepare the small divider Press 4 wedge fixes into the small divider Finished front edge Step 26 Fit the small divider Place the small divider between the top the fixed shelf gently push it onto the Finished small metal dowels until front edge...
Page 18 Assembly Instructions Squaring up a Chest and fitting the Back Panel Step 27 www.youtube.com/watch?v=FeaI6541z7o Fit the back panels Square up the unit by The measurement from top corner X to bottom corner X must be making sure that equal to the measurement from top corner Y to bottom corner Y measurement x:x equals y:y.
Page 19 Assembly Instructions Step 28 WARNING! Secure the unit to a In order to prevent overturning wall this product must be used with the Before fitting the unit wall attachment device provided to a wall, use a spirit level to check the top of the unit is level, front-to-back and side-to-side in the 3...
Page 20 A Guide to Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
Page 21 Assembly Instructions Fixing Bottom Mounted Runners Step 29 https://www.youtube.com/watch?v=Z6lGMy19h7Q Fit the drawers Slide the wheels of the runners fitted to the drawers, over the wheels of the runners fitted to the side panels and push the drawers into position Panel Drawer Assembly is complete Please remove any blue protective film from panel...
Page 24 ALR3427...
