Synthesizers and Samplers

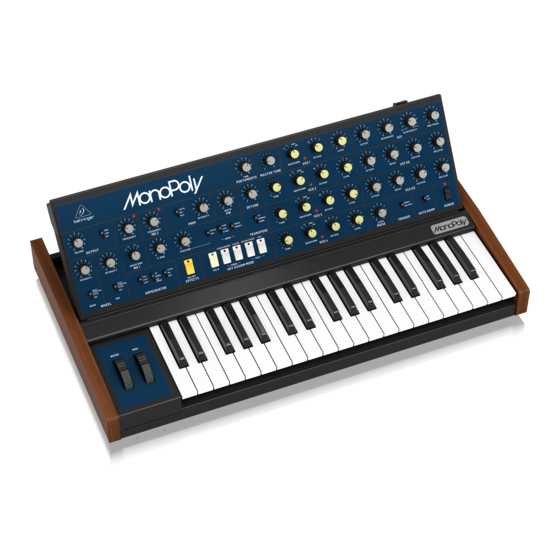

MONOPOLY
Analog 4-Voice Polyphonic Synthesizer with
37 Full-Size Keys, 4 VCOs, VCF,
2 LFOs, 2 Envelopes, Sync and Cross
Modulation and Arpeggiator
User Support Bulletin
Introduction
The MONOPOLY has a built-in auto calibration function.
If the MONOPOLY is played through the keyboard or through MIDI, and you notice that the VCO is out of tune, it can be
calibrated by running the auto calibration procedure shown on this page.
If you are using external CV to control the MONOPOLY, and you notice that the VCO is out of tune, it can be calibrated using the
procedures shown on the following pages. If you do not feel comfortable doing these calibrations, then we recommend they
are done by an experienced audio service technician.
CAUTION: Incorrect calibration or damage to the delicate adjustment trimmers may lead to the unit becoming inoperable.
Note: Although re-calibration will not invalidate the warranty, any damage caused during re-calibration may invalidate
the warranty.
Auto Calibration Procedure
To enter the automatic calibration mode, hold the EFFECTS button while powering on the unit. The VCOs will be calibrated in
sequence. If successful, each related VCO LED will flash; if not successful, they will not light up.
To return to the factory calibration, hold the HOLD and EFFECTS buttons while you power on the unit.
As mentioned above, if you are using the keyboard or MIDI to play, then this auto calibration is all that is required. If you are
using CV to control the MONOPOLY, and you think it may require tuning, then follow the procedures below.
985-40000-01175 Rev.A
page 1 of 5
2021-02-16
Confidential, for internal use only. Not to be reproduced.
Advertisement
Table of Contents
Related Manuals for Behringer MONOPOLY
Summary of Contents for Behringer MONOPOLY
- Page 1 If you are using external CV to control the MONOPOLY, and you notice that the VCO is out of tune, it can be calibrated using the procedures shown on the following pages. If you do not feel comfortable doing these calibrations, then we recommend they are done by an experienced audio service technician.
- Page 2 Equipment required 1. Small insulated trimmer screwdriver. 2. Guitar tuner Preparation Set the MONOPOLY controls as follows: • Set MASTER TUNE, TUNE of VCO2, 3, 4 to the middle position • PORTAMENTO to 0 • DETUNE to 0 • All OCTAVE to 8’...
- Page 3 Synthesizers and Samplers MONOPOLY Calibration Procedure VCO1 OFFSET and SCALE Calibration Follow all steps in the order in which they are presented. Turn the front panel VCO1 LEVEL to 10. Turn TRANSPOSE to DOWN, press and hold A2 key (Figure 1) and adjust the VCO1 OFFSET trimmer on the bottom panel (Figure 2) while observing the guitar tuner display.
- Page 4 Synthesizers and Samplers MONOPOLY Turn TRANSPOSE to NORMAL, press and hold A5 key (Figure 1) and adjust the VCO1 SCALE trimmer on the bottom panel while observing the tuner display. Repeat the above two steps until both notes are correct in the guitar tuner display. Please note that a pitch within 2 to 3 cents of the target frequency should be fine.
- Page 5 Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd.
