Synthesizers and Samplers

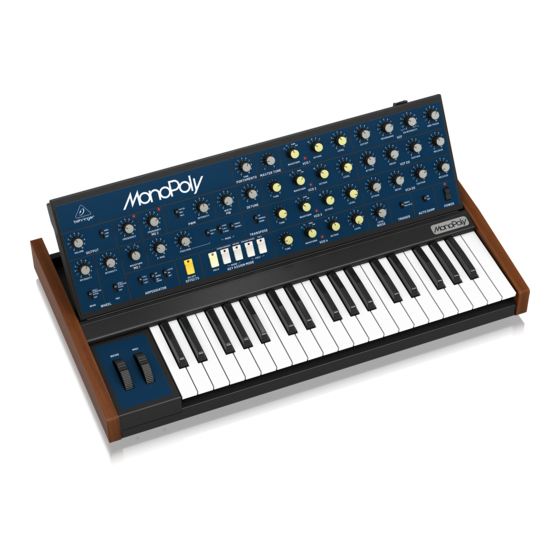

MONOPOLY
Analog 4-Voice Polyphonic Synthesizer with
37 Full-Size Keys, 4 VCOs, VCF,
2 LFOs, 2 Envelopes, Sync and Cross
Modulation and Arpeggiator
Service Support Bulletin
History
Date
2021-03-03
Requirement
This calibration function is only available on 1.0.5 or later version firmware.
How to start calibration
Power off MONOPOLY first.
Long press and hold button HOLD and POLY simultaneously.
985-40000-01200 Rev.A
2022-04-21
Confidential, for internal use only. Not to be reproduced.
Version
Note
Rev0
Initial version
page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Behringer MONOPOLY
Summary of Contents for Behringer MONOPOLY
- Page 1 Rev0 Initial version Requirement This calibration function is only available on 1.0.5 or later version firmware. How to start calibration Power off MONOPOLY first. Long press and hold button HOLD and POLY simultaneously. 985-40000-01200 Rev.A page 1 of 6 2022-04-21...
- Page 2 Synthesizers and Samplers MONOPOLY Cycle power on MONOPOLY. Wait approximately 2 seconds until power LED blinking slowly. Release all buttons. Sub Calibration Menu There are 3 sub calibration menus. Press the corresponding button to enter the sub menu. Menu Buttons...
- Page 3 Synthesizers and Samplers MONOPOLY Calibration Procedure Follow all steps in the order they are presented. Start BEND WHEEL Calibration Press button MONO UNISON, then VCO1 LED will illuminate. Calibrate BEND WHEEL maximum position Move the BEND WHEEL to its maximum position.
- Page 4 Synthesizers and Samplers MONOPOLY Calibrate BEND WHEEL minimum position Move the BEND WHEEL to its minimum position. Start BEND WHEEL dead zone calibration This step is to ensure that no bend information is sent while bend wheel is not being touched.
- Page 5 Synthesizers and Samplers MONOPOLY Calibrate BEND WHEEL dead zone Move the BEND WHEEL within the dead zone where you don't feel the tension of the spring. Start MG1 WHEEL Calibration Press button POLY POLY, then VCO3 LED will illuminate. Calibrate MG1 WHEEL maximum position Move the MG1 WHEEL to its maximum position.
- Page 6 Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Aston Microphones and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd.
