NSA TFDC-60RC User Manual

NSA TFDC-60RC User Manual

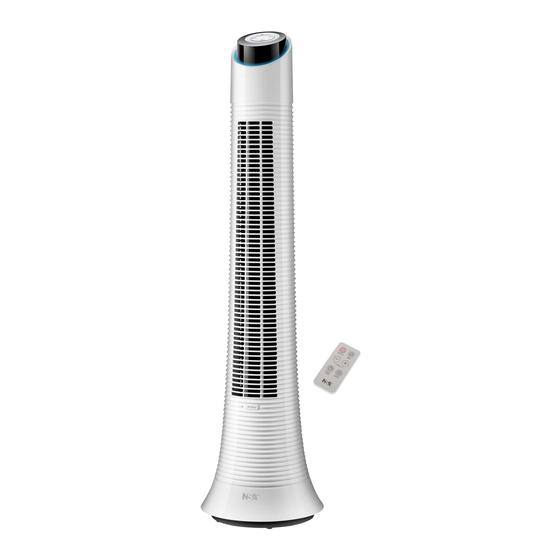

Ultra cool column fan with dc motor

Advertisement

Quick Links

Ultra Cool
Column Fan
with DC Motor
User manual
www.nsauk.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFDC-60RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NSA TFDC-60RC

  • Page 1 Ultra Cool Column Fan with DC Motor User manual www.nsauk.com...
  • Page 2 Welcome With a clear focus on new technologies, innovation and design, NSA played a leading role in the Air Improvement industry for over 20 years. uses the latest technologies to maximise consumer benefits with energy saving DC motors and cordless rechargeability at the forefront.
  • Page 3: Introduction

    Introduction Thank you for purchasing this Mains Powered Column Fan w. DC Motor & Remote Control TFDC-60RC. This elegant column fan is ideal for any location ~ home or office. It combines stylish good looks with exceptional cooling performance and quiet operation.
  • Page 4: Table Of Contents

    Contents Introduction Box Contents Parts Description Controls Operation Guide Aroma Tray Remote Operation Cleaning & Care Recycling & Disposal Safety Technical Data Please read this instruction manual before using your Column Fan for the first time Keep safe for future reference.
  • Page 5: Box Contents

    What’s included Fig.1 Included in the box you will find: 1. Column Fan with DC Motor 2. Remote Control 3. CR2032 cell battery (for remote control) 4. User guide Unpack all items from the box – as detailed above. The plug and power cord are packed into the base of the fan.
  • Page 6: Parts Description

    Parts Description 1. Dial/Touch Control Panel for Manual Operation (see Fig 4) 2. Digital Display Panel (see Fig 5) 3. Remote Control Receiver 4. Front Grille 5. Air Outlet 6. Aroma Tray / Scent Box 7. Fan Base (Oscillation Base) 8.
  • Page 7: Controls

    Controls Manual controls 1. Mode Selection – Breeze / Sleep / Eco-AI 2. Oscillation 3. Speed / Timer Adjustment 4. On / Off 5. Timer / Pre-Set timer Digital Display Nature Sleep Eco Fig.4 Timer Speed Preset Fig.5 Remote control 6.
  • Page 8: Operation Guide

    Operation guide The fan can be operated either manually using the control panel on the top of the fan or by using the remote control supplied with the product. On/Off Connect the fan to the power supply and using the manual controls on the top of the fan or on the remote control press ON/OFF once to switch on the fan and press again to stop the fan from running.
  • Page 9 Speed SPEED: When the fan is first plugged into the electrical supply, the fan speed will be set at 12 – medium speed. Subsequent uses will remember the previous setting. To increase the speed using the manual controls rotate the dial clockwise or use the “+”...
  • Page 10 Timer With the fan powered ON, press the PRESET/TIMER button on the manual controls and then rotate the dial clockwise to increase or anticlockwise to decrease the timer to set the required length of operation between 0.5hr & 15hrs. 0.5h 1.5h 2.5h TIMER OFF (Continuous)
  • Page 11 Preset timer To use PRESET timer for delayed start – the unit must be OFF and plugged into the mains. Press the PRESET/TIMER button on the manual controls and then rotate the dial clockwise to increase or anticlockwise to decrease the timer to set the required delayed start 0.5hr and 15hrs.
  • Page 12 Mode Settings MODE settings have five levels of fan speed (instead of 24) which vary according to the set fan speed. These are summarised as follows: Level 1 = speed 1 – 5 Level 2 = speed 6 – 10 Level 3 = speed 11 –...
  • Page 13 NATURE NATURE Mode simulates natural breezes and rhythms and varies according to the fan speed set - press the MODE button once and use the “+”or “-” buttons on the remote control or rotate the dial on the manual controls clockwise to increase or anticlockwise to decrease to the required setting •...
  • Page 14: Aroma Tray

    Aroma Tray Take out the Aroma Tray from the front of the fan (Fig 7). Add one or two drops of Aromatherapy Oils or perfume , as desired, onto the † † absorbent cotton pad (do not over fill). Replace tray and turn on the fan. A little scent will go a long way - follow scent package instructions where appropriate –...
  • Page 15: Remote Operation

    Remote Operation The fan can be operated either manually by the control panel on the fan unit itself or by the remote control supplied with the product. • Be sure to direct the remote control toward the receiver on the control panel. •...
  • Page 16 Replacing the Remote Control Battery (1pc x Lithium 3V CR2032) Lock Fig.11 Fig.9 Fig.10 Turn over the remote Install the battery into the Close the battery cover. control. Open the cover battery compartment. Ensure it clicks closed. of battery compartment Take care of the polarity ~ squeeze lock towards of the battery, which...
  • Page 17: Cleaning & Care

    Cleaning & Care • Unplug the appliance before cleaning. • Do not use any chemical-based solutions for cleaning fan surfaces. • In order to remove the dust from the protective fan grilles use a vacuum cleaner upholstery attachment. • Slightly moisten a cloth and then wipe off the surfaces of the fan. •...
  • Page 18: Recycling & Disposal

    Recycling & Disposal The packaging of your new fan has a recycle mark on it. Please dispose of it as recycled paper or by using the “Dual System”. Please recycle The symbol on the product or on its packaging indicates that this product may not be treated as general household waste.
  • Page 19: Safety

    Safety Keep safe for future reference. Check the household voltage to ensure it matches 13. Always place your fan on a firm, dry, level surface, the fan’s rated specification before using. away from curtains & blinds. Always use this device in accordance with the 14.
  • Page 20: Technical Data

    Technical Data Model No: TFDC-60RC EAN No: 5 060301 911684(BK) 5 060301 911691(W) Rated Power: Voltage: 220-240V ~ 50Hz Ref: IM/TFDC60/2102/GU86AA Product Dims: 1060 x 270 x 270 mm (H*W*D) Giftbox Dims: 1110 x 330 x 320 mm (H*W*D) N.W. 5.5kg G.W.
