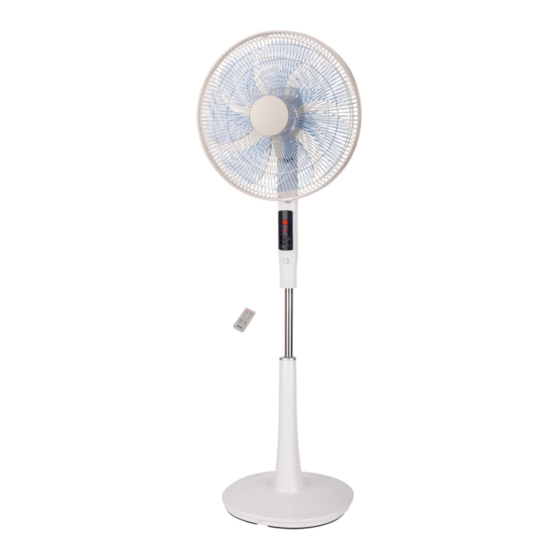

16in / 40cm Eco Pedestal Fan
with 30W DC motor, Digital Display
Instruction manual
New Ultra Quiet 7 Blade Pedestal Fan
Illuminated Digital Display Panel w. Button Controls
Manual option to turn off digital display
Remote Control w. 3V battery (CR2032)
24 Speeds
Horizontal Oscillation
0.5hr to 15hr Timer (Off)
0.5hr to 15hr Pre-Set Timer (On)
2 Modes w. 5 Speed Levels
Height Adjustable to 1.395m
Carry Handle
Please keep safe for future reference
www.nsauk.com
& Remote Control
Model: SFDC-4091RC
WARNING:
Keep Batteries Out of Reach of Children
1.
Swallowing may lead to serious injury in as little as 2 hours or death,
due to chemical burns and potential perforation of the oesophagus.
2.
If you suspect your child has swallowed or inserted a button battery,
immediately seek urgent medical assistance.
3.
Examine the devices and make sure the battery compartment is
correctly secured – eg: that the screw or other mechanical fastener
is tightened or locked. Do not use if the compartment is not secure.
4.
Dispose of button batteries immediately and safely. Flat/dead
batteries can still be dangerous.
5.
Tell others about the risk associated with button batteries and how
to keep their children safe.

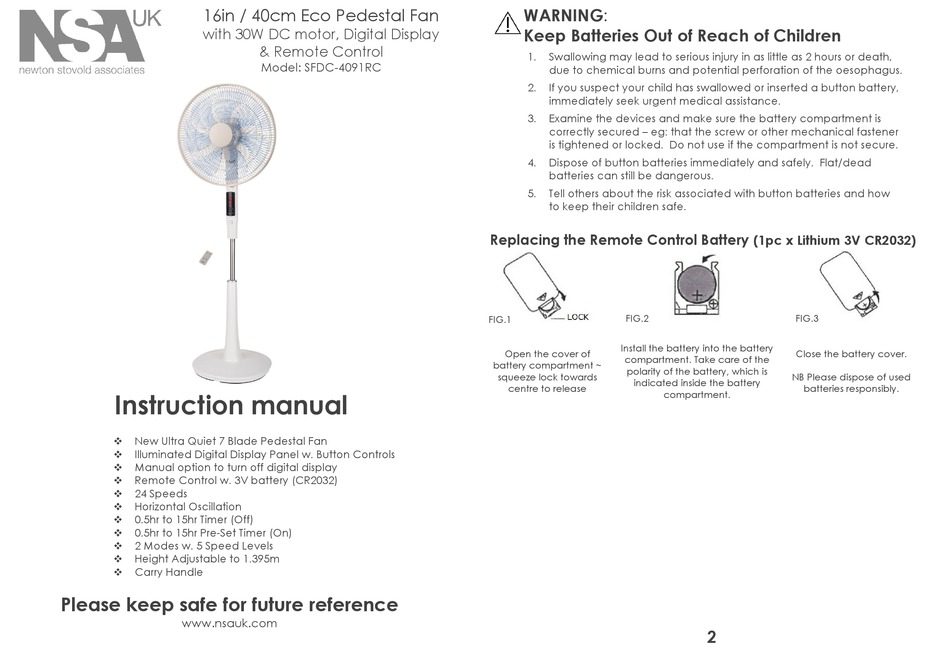

Replacing the Remote Control Battery
FIG.2
FIG.1
Install the battery into the battery
Open the cover of
compartment. Take care of the
battery compartment ~
polarity of the battery, which is
squeeze lock towards
indicated inside the battery
centre to release
compartment.
(1pc x Lithium 3V CR2032)
FIG.3
Close the battery cover.
NB Please dispose of used
batteries responsibly.
