Instruction manual
Touch-Safe, Auto-Stop Grille
Energy Saving DC Motor
Ultra-Quiet 7-Blade Tabletop/Pedestal Fan
Child Lock & Motion Sensor
Remote Control w. 3V battery (CR2032)
Multi position tilt – Vertical to Horizontal
Oscillation - 30° / 70° / 110°
24 Speeds w. Turbo/Laundry Setting
3 Modes w. 4 Speed Levels
Room Temperature w. Intelligent Breeze
1 / 2 / 4 / 6 hr Timer (Off)
1 / 2 / 4 / 6 hr Timer (On)
Height Adjustable to 1.110m
Carry Handle
Please keep safe for future reference
E: sales@nsauk.com * www.nsauk.com
Intelligent, Touch-Safe, Tabletop /
Pedestal Fan w. Remote Control
Energy Saving DC motor, Multi Tilt
Positioning incl. Horizontal
12in / 30cm Model: SFDC-30213RC
Eligible for Quiet Mark
accreditation as
"...one of the quietest
Pedestal Propeller fans we
have tested"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NSA SFDC-30213RC
Summary of Contents for NSA SFDC-30213RC

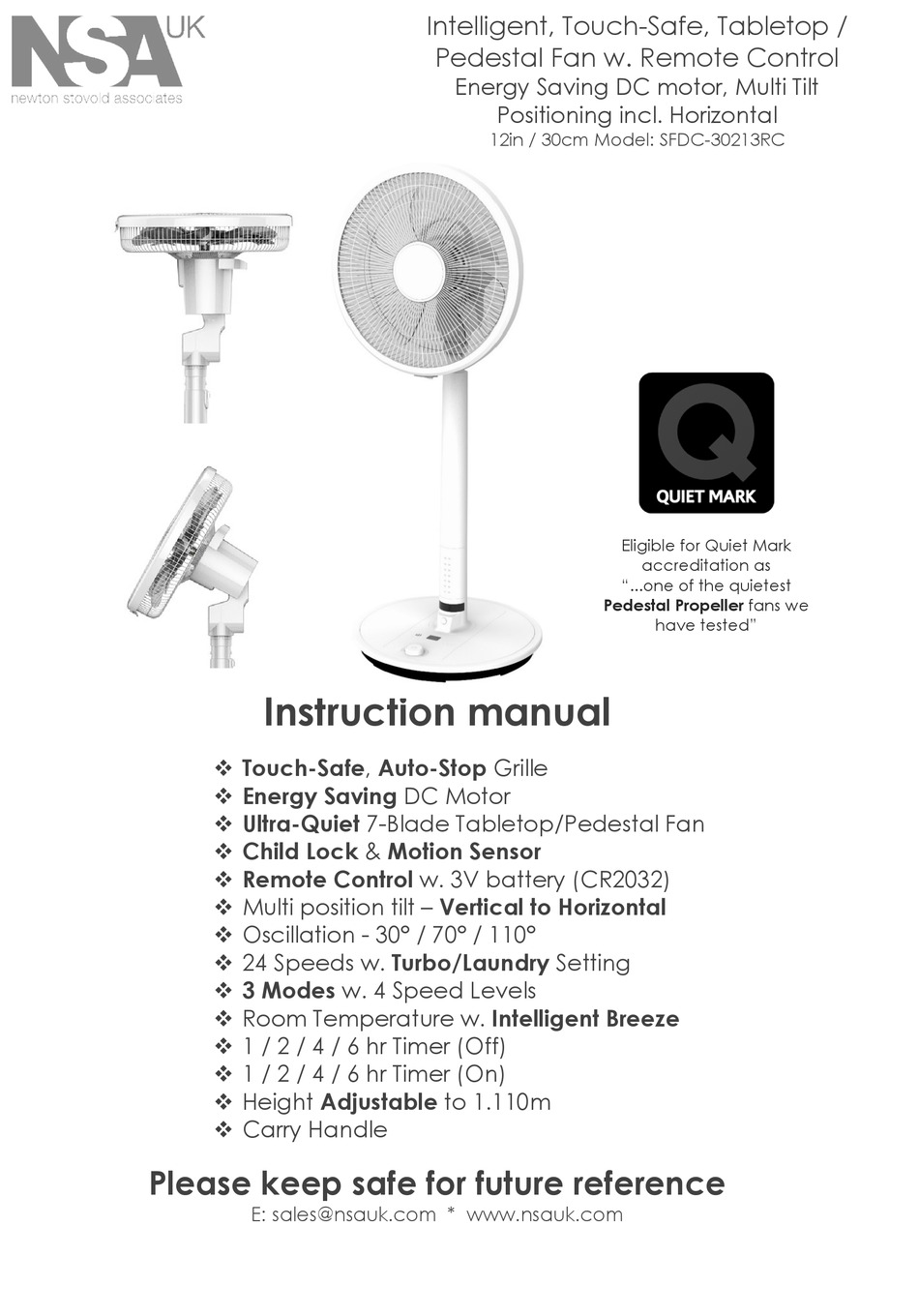

- Page 1 Intelligent, Touch-Safe, Tabletop / Pedestal Fan w. Remote Control Energy Saving DC motor, Multi Tilt Positioning incl. Horizontal 12in / 30cm Model: SFDC-30213RC Eligible for Quiet Mark accreditation as “...one of the quietest Pedestal Propeller fans we have tested” Instruction manual ...
-
Page 2: Warning - Cell Battery For Remote Control
WARNING: Keep Batteries Out of Reach of Children 1. Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. 2. If you suspect your child has swallowed or inserted a button battery, immediately seek urgent medical assistance. -
Page 3: Table Of Contents
CONTENTS Warning – Cell Battery for Remote Control Contents Top Tips & Quick Reference Introduction & Safety Instructions Parts Description / Control Panel Display / Pedestal Display Remote Control Description Assembly Method 8 – 11 Fixing Baseplate Unpacking Motor & Assembling Rear Grille Attaching Fan Blade &... -
Page 4: Top Tips & Quick Reference
Top Tips & Quick Reference If the fan is turned off while the Child Lock is activated – no buttons will operate until the Child Lock mechanism is deactivated by pressing & holding the OSC key on the manual control panel for 2-3 secs – then normal functions can resume. If blue light shows on the pedestal display beside symbol –... -
Page 5: Introduction & Safety Instructions
Introduction Thank you for purchasing this Touch-Safe, Energy Efficient Fan with lots of new features and new technologies. This elegant, height adjustable tabletop / pedestal fan is ideal for any location ~ home or office. Combining design, quality, performance and safety with significantly reduced running costs*. -
Page 6: Parts Description / Control Panel Display / Pedestal Display
Parts Description FIG.4 FIG.6 FIG.5 Manual Control Panel Pedestal Display Panel... -
Page 7: Remote Control Description
Parts Description (Cont’d) FIG.8 Remote Control Remote Control Cradle – FIG.7 clips onto Pedestal Pole Accessory: Remote Control Be sure to direct the remote control toward the ♦ receiver on the control panel. Use the remote control within 3 metres from the ♦... -
Page 8: Assembly Method
Assembly Method Please assemble correctly according to the following sequence. ♦ Refer to parts description on page 6-8 (Figs.4 & 10). Please keep the original packaging for future storage. ♦ FIG.10 Fixing Base Plate: Remove the base plate securing nut from the stand base at the bottom of the pedestal pole (turning anti-clockwise). -
Page 9: Unpacking Motor & Assembling Rear Grille
Assembly Method (Cont’d) Unpack Motor: Before installing the rear grille – remove the blade cap turning clockwise (as indicated). Remove the protective plastic tube from the motor shaft. This tube is to prevent motor shaft from rusting during storage – so retain for future use or winter storage. -
Page 10: Attaching Fan Blade & Front Grille
Assembly Method (cont’d) Attaching Fan Blade: Place fan blade on the motor shaft and align the axle pin with the recess on the reverse side of the fan blade. Turn the spinner to the left, so that there is no looseness and the axle pin fits comfortably into the fan blade recess. -
Page 11: Remote Control Cradle
Assembly Method (cont’d) / Adjustment Remote Control Cradle Clip the Remote Control Cradle onto the Pedestal Pole. FIG.20 Tilt Adjustment Gently tilt the fan head up or down to the desired angle – there are six tilt positions from vertical to horizontal. -
Page 12: Operating Instructions
Operating Instructions The fan can be operated manually by the control panel on the fan base or by the remote control. NB: Certain features (eg: Timer ON or Timer OFF, Silent & Breeze Mode functions) can only be operated via the remote control supplied with the product. ON/OFF: Once the unit is connected to the power supply, press the “On/Off”... -
Page 13: Timer Off & Timer On
Operating Instructions (cont’d) Timer OFF The OFF timer can only be set using the Remote Control and only when the fan is powered ON. Press the ON / OFF button to start operation. ♦ Press the Timer OFF Button on the remote control once for 1hr duration, twice for ♦... -
Page 14: Twin Timer & Oscillation
Operating Instructions (cont’d) Twin Timer – OFF & ON To set both OFF and ON twin timers, the fan needs to be ON. ♦ You can only use this function via the Remote Control. ♦ Once you have chosen the desired run time 1 – 2 – 4 – 6 hrs by pressing the Timer ♦... -
Page 15: Osc/Child Lock ~ Eco Mode ~ Breeze Mode
Operating Instructions (cont’d) Press and hold the OSC key on the manual controls for 2-3 secs to activate the ♦ CHILD LOCK function – to prevent any accidental or unwanted changes to the programme. The blue light will show on the pedestal display beside symbol. -
Page 16: Night Mode ~ Auto Mode/Heatwave Setting ~ Motion/Body Sensor
Operating Instructions (cont’d) Night Mode Press MODE button three times on the remote control for Night setting. The green ♦ LED light will be lit beside the Night mode icon on the pedestal display. NIGHT SETTING Night mode operates for 8hrs stepping down one level after 30mins operation, ♦... -
Page 17: Temperature Sensor ~ Laundry/Turbo Setting
Operating Instructions (cont’d) Temperature Sensor Key / Button Select TEMP setting on the manual controls or via remote control. ♦ The room temperature is displayed on the manual control panel. ♦ TEMP If you press the “On / Off Button” and stop while the temperature sensor mode is ♦... -
Page 18: Silent/Mute
Operating Instructions (cont’d) Silent Mode: Press the key on the remote control to turn off the beep indicators. The green ♦ MUTE lamp will be lit beside the Silent icon on the pedestal display. Press the Silent key again to reactivate beep indicators; the fan will beep twice. ♦... -
Page 19: Maintenance & Storage
Maintenance & Storage Before cleaning or carrying out routine maintenance on your fan please always ensure the product is removed from the power supply. Clean the fan body and fan blade to avoid colour change or damage. ♦ For details on how to remove the front grille for cleaning purposes – reverse the assembly process ♦... -
Page 20: Technical Data
Technical Data Model No: SFDC-30213RC (12in/30cm DC fan) Ref: IM/SFDC30213/2003/GU86AA Voltage: 220-240V ~ 50Hz Power: RPM: Speed 1 = 160rpm Speed 24 = 950rpm Turbo/Drying = 1,100rpm Operating Temp: –10°C to 60°C Prod. Dimensions: 900 - 1110 (H) x 360 (W) x 360 (D) mm Ctn.
