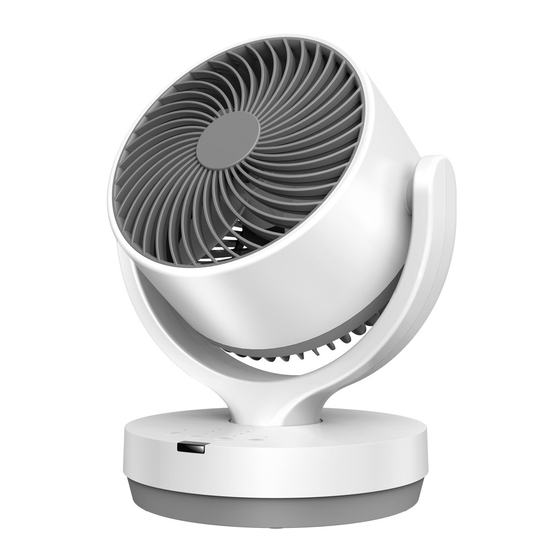

Compact cool table top air circulator

Advertisement

Quick Links

Compact Cool
Table Top
Air Circulator
User manual
www.nsauk.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF15-R31-AC and is the answer not in the manual?

Questions and answers

Summary of Contents for NSA DF15-R31-AC

  • Page 1 Compact Cool Table Top Air Circulator User manual www.nsauk.com...
  • Page 2 Welcome With a clear focus on new technologies, innovation and design, NSA played a leading role in the Air Improvement industry for over 20 years. uses the latest technologies to maximise consumer benefits with energy saving DC motors and cordless rechargeability at the forefront.
  • Page 3: Table Of Contents

    Contents Thank you for purchasing this Table Top / Personal Air Circulator with Remote Control. Please read this instruction manual before using your Table Top Fan for the first time. Box Contents Parts Description Controls Operation Guide Circulating Air Remote Operation Cleaning &...
  • Page 4: Box Contents

    What’s included Fig.1 Included in the box you will find: 1. Table Top Air Circulator 2. Remote Control 3. CR2032 cell battery (for remote control) 4. User guide...
  • Page 5: Parts Description

    Parts Description 1. Front Grille (Air Outflow) 2. Centre Disk 3. Fan Blades (Internal) 4. Control Panel w. LED Lights 5. Remote Control Receiver 6. Oscillation Base Fig.2 7. Base Plate 8. Fan Casing 9. Back Grille (Air Intake) 10. Tilt Point...
  • Page 6: Controls

    Controls Manual controls 1. Oscillation 2. 1, 2, 4hr timer (Totalling 7hrs) 3. 3 Speeds (Low / Med / High) 4. On / Off Fig.3 Remote control 5. On / Off 6. Oscillation 7. Speed 8. Timer Fig.4 NB: before disposal of packaging check thoroughly for the remote control.
  • Page 7: Operation Guide

    Operation guide On/Off Press ON/OFF button on the manual controls or the remote control to turn on the fan. Press again to stop the fan from operating. Speed Press SPEED button on the manual controls or the remote control to select the desired speed level.
  • Page 8 Timer You can set the run time for 1 to 7 hours duration. Press the Timer button to move through the timer options. The LED light will indicate the time selected. If there is no LED light showing then the timer is off and operation will be continuous until the fan is manually powered off.
  • Page 9 TIlt Adjustment 0-90° • Gently tilt the fan head up or down to the desired angle. • NB: Only adjust tilt when the fan is turned off. Adjusting tilt when the fan is operating may damage the tilt mechanism. Fig.5...
  • Page 10: Circulating Air

    Circulating Air Suitable uses for circulating air around the home include: Distributing Air Conditioned & cooled air throughout the room Distributing Heated air throughout the room Circulating air upstairs & around the house Evenly distribute Air Conditioned & cooled air between rooms Circulate warm air from inside to outside Fig.6...
  • Page 11: Remote Operation

    Remote Operation The fan can be operated either manually by the control panel on the fan unit itself or by the remote control supplied with the product. • Be sure to direct the remote control toward the receiver on the control panel. •...
  • Page 12 Replacing the Remote Control Battery (1pc x Lithium 3V CR2032) Lock Fig.8 Turn over the remote Install the battery into the Close the battery cover. control. Open the cover battery compartment. Ensure it clicks closed. of battery compartment Take care of the polarity ~ squeeze lock towards of the battery, which NB Please dispose of used...
  • Page 13: Cleaning & Care

    Cleaning & Care • Unplug the appliance before cleaning. • Do not use any chemical-based solutions for cleaning surfaces. • Slightly moisten a cloth and then wipe off the surfaces of the fan. • In order to remove the dust from the protective fan grille use a vacuum cleaner upholstery attachment.
  • Page 14: Recycling & Disposal

    Recycling & Disposal The packaging of your new fan has a recycle mark on it. Please dispose of it as recycled paper or by using the “Dual System”. Please recycle The symbol on the product or on its packaging indicates that this product may not be treated as general household waste.
  • Page 15: Safety

    Safety Keep safe for future reference. Check the household voltage to ensure it matches 13. Always place your fan on a firm, dry, level surface, the fan’s rated specification before using. away from curtains & blinds. Always use this device in accordance with the 14.
  • Page 16: Technical Data

    Technical Data Model No: DF15-R31-AC EAN No: 5 060301 911455 Rated Power: Voltage: 220-240V ~ 50Hz Ref: IM/DF15R31AC/2102/GU86AA Product Dims: 295 x 245 x 205 mm (H*W*D) Carton Dims: 325 x 265 x 225 mm N.W. 1.50kg G.W. 2.00kg © 2021 Newton Stovold Assocs Ltd GU8 6AA...
