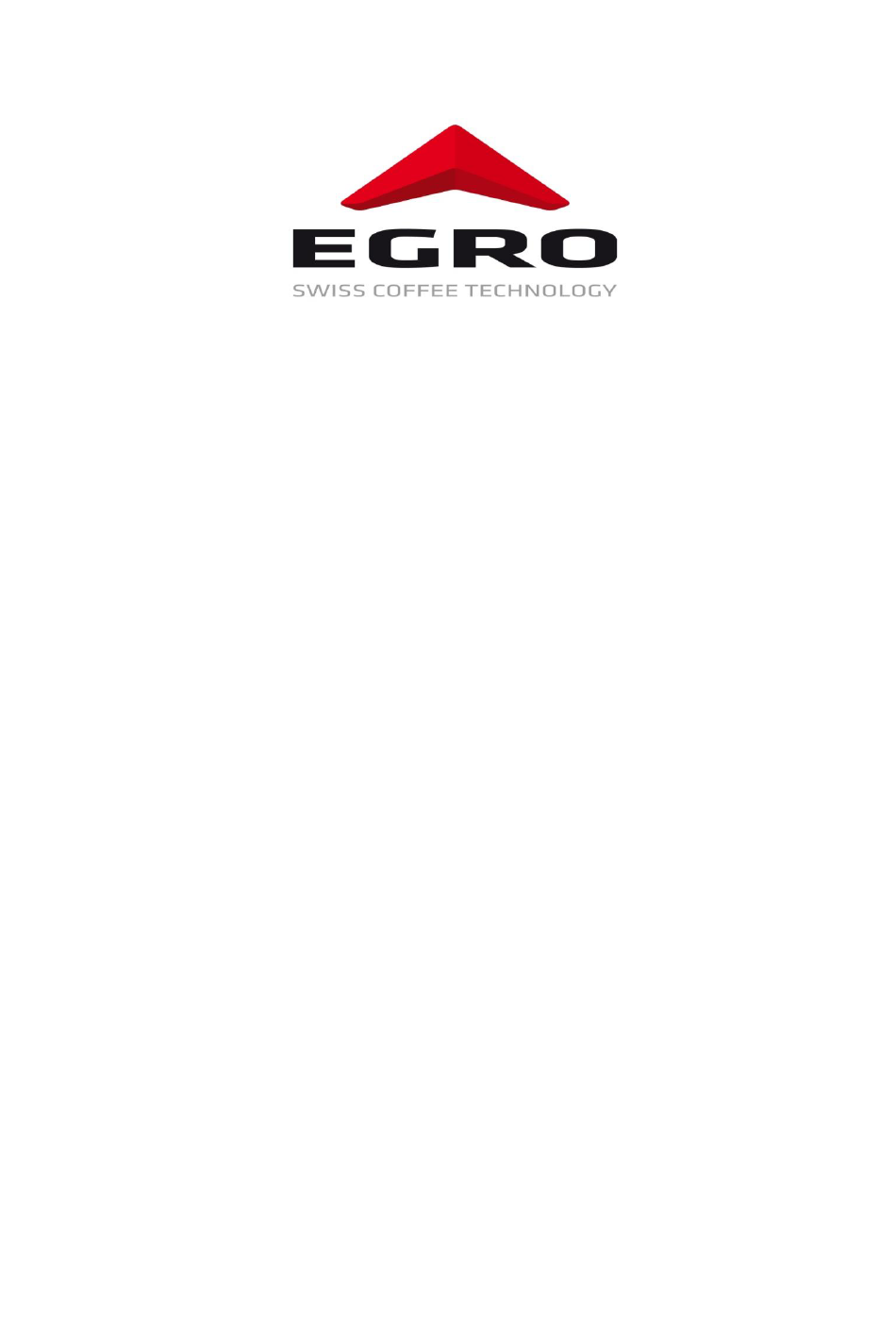

- Page 1 NEXT Technical Manual ENGLISH...
-
Page 2: Table Of Contents
Fridge FUM ............................18 4.9.1. Temperature adjustment ......................18 4.9.2. Remove milk pumps ........................18 4.10. Powder Module ..........................19 4.10.1. Powder hopper ......................... 19 4.11. Diagrams, Fuses and Print Boards ....................20 Egro NEXT Technical Manual Rev: AA / 09/2018... - Page 3 5.4. Software update ..........................21 5.4.1. Control Board ........................... 21 5.4.2. Display /Android OS ........................21 5.4.3. EgroTech and Egro UI ........................ 21 5.4.4. Recovery ........................... 22 5.4.5. Exchange of Touchscreen ......................22 5.5. Pictures and videos .......................... 22 5.5.1.
-
Page 4: Introduction
This manual will be updated on a regularly base. Please check yourself on www.ranciliogroup.com/Support The manuals of Egro NEXT are available on the display and for download on our homepage www.ranciliogroup.com Further documentation, like document set (electric and hydraulic diagrams), software tree et al. can be found in the restricted area of our download area. -
Page 5: Outlet
Outlet 2.2. Coffee Hot Water Milk/Milk foam Powder product Cold Milk Foam (CMF) Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 6: Installation
When connecting the machine to 220-240V 1N~ 50/60Hz with 16A fuse the parameter “Machine setup/Boiler/Reduced Power” in the EgroTech App has to be set to “ON”. Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 7: Service
059247 -45 -+160°C NBR, EPDM, Viton lubricant SIHAF 2 Not applicable for Silicon O-Ring! Synth. Assembly Klübersynth Piston O-Rings 054567 -30 - +140°C Grease UH1 64-2403 Do not use with EPDM rubbers! Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 8: Service Kits
The grinder setting will be managed according the brewing time of the coffee. This is done with a motor with worm gear mounted to the grinder. All machines of Egro NEXT have SAG by default SAG is working with a reference product for each grinder. Most time it is Espresso for the left grinder and coffee for the right one. -
Page 9: Brewing Unit
4.4.3. Brewing units Egro NEXT can be equipped with two different brewing chambers – BC18 or BC22. BC18 is the default brewing unit. It has the smaller diameter of the brewing chamber and can work with up to 18 gram of grind coffee. -
Page 10: Outlet
The Automatic Spout (AS) is driven by a motor and offer the possibility to define five different cup heights in the EgroTech app, which will be assigned to the products in the Egro UI. The parameter cup height is also used for hot water products if the machine has a central outlet and should be set up according to the cup used. -
Page 11: Milk System
First, the milk temperature has to be adjusted. This is done in percentage of the power of the milk pump on the Egro NEXT TopMilk and with restrictors on the Egro NEXT QuickMilk. Please take care, that foam products always have a higher temperature than milk products with the same settings. -
Page 12: Change To Pressure Sensor
Perform the auto calibration for both machines independently (not together). Egro NEXT Technical Manual Rev: AA / 09/2018... - Page 13 At least one milk product is not possible. Milk qty. Product > Milk qty. in container Products with a higher milk quantity than in the container are disabled. Zero Level Message ► Action Egro NEXT Technical Manual Rev: AA / 09/2018...
-
Page 14: Configurations Milk System
1 milk – 1 machine 2 milk – 1 machine 1L – 2M 2L – 2M 1 milk – 2 machines 2 milk – 2 machines Milk pump unit: Milk pumps Milk valves Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 15: Cold Milk Foam Cmf
Cold Milk Foam (CMF) is an option of the milk system, which should be ordered with the machine/fridge. CMF is only available for Egro NEXT TopMilk with one milk and one machine! All other versions cannot be equipped with it. -
Page 16: Fridge Next
<dF1> Press once; <CP> appears again on the display Press until display shows <di 5> Press once and on the display appears <LOC> Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 17: Remove Milk Pumps
Remove the two screws (a) on the front of the plastic cover inside the fridge! Take out milk pump unit. Under counter installation 4.8. When installing the refrigerator under the counter, some parameters must be adjusted. Please note chapter 4.6.4. Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 18: Fridge Fum
4.9.2. Remove milk pumps Switch off the fridge! Remove the two screws (a) on the upper end of the milk pump unit inside the fridge. Take out milk pump unit. Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 19: Powder Module
Make sure to make the water calibration, in the <Product Setup/Powder/Water test> of the EgroTech app! Parameters of the EgroTech app are makred with “ET”. All other parameters are configured in the Egro UI Preparation Start... -
Page 20: Diagrams, Fuses And Print Boards
The diagram set with the electric and hydraulic diagrams and their legend are delivered with the coffee machine. For the detailed description of the print boards with the values of the fuses and the description of the LEDs we offer a separate document in our download area. Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 21: Software
Software Use of USB 5.1. Egro NEXT offers the possibility to use a USB-drive for updates and backups. Data to upload must be saved on the root directory of the USB-drive. Software components and versions 5.2. The software of Egro NEXT consists out of four components: Egro UI: the user interface, the version can be seen on the Cleaning Page in the Menu. -
Page 22: Recovery
We recommend to use pictures with the right size and resolution. 5.5.2. Video Videos can be played on the screen of Egro NEXT. The best resolution is 1900*1280 pixel in the format mp4. As the screen has no speakers, Audio is not supported. Egro NEXT... -
Page 23: Display
The use of a pen or any other sharp item reduce lifetime of the display. Please do not use! Backup 5.7. Attention! These parameters are stored in the backup-file of the Egro NEXT but they will not be overwritten when loading a backup to another machine: REDUCED POWER MILK MODULE TYPE... -
Page 24: Technician Menu
A new, separate App – EgroTech – opens and provide the configuration of the coffee machine. Depending on the configuration different settings are available Enter EgroTech App Leave EgroTech App Open Technician menu in the Egro UI Press <EXIT> to leave EgroTech App Select in the “General settings” the menu point “Start machine Settings”... -
Page 25: Product Setup
Steam Module type Steam wand – Not installed / iSteam / Steam wand Foamed milk Shut-off Shut-off temperature of the foamed milk temperature Egro NEXT Technical Manual Rev: AA / 09/2018... - Page 26 Follow-up time of the mixer after the powder delivery Auto rinse time Time for the automatic rinse after the last delivered powder product *for special application the motor speed can be reduced Egro NEXT Technical Manual Rev: AA / 09/2018...
-
Page 27: Machine Setup
Brewing chamber Definition of the brewing unit with 18 or 22 grams. The option of 15 gr is not available for Egro NEXT and should not be selected. Lower Offset These parameters are set with the «Auto calibration» of the brewing unit. - Page 28 Module Type Activation of the automatic spout (AS) – Not installed – AS – AS Plus For Egro NEXT the option AS is not available. Crash behavior „Continue“- the spout tries if it can move on even there is a resistance „Stop“- the spout does not move on...
-
Page 29: Date + Time
Date + Time Do not use these parameters! The time master of the machine (Screen or telemetry) overwrites the time of the machine. The Auto Power ON is managed by the Egro UI. Clock Date mode Defines date mode Set date... -
Page 30: Counters
Number of brewing cycles during coffee machine lifetime Water Shows the liters of water used during coffee machine lifetime Cleaning counters Coffee cleanings Total amount of coffee cleanings Milk cleanings Total amount of milk cleanings Egro NEXT Technical Manual Rev: AA / 09/2018... - Page 31 Number of prepared reference products for the right grinder Last reset made (right) Shows date and time of the last reset for the right grinder Reset right Resets the counter of the right grinder Egro NEXT Technical Manual Rev: AA / 09/2018...
-
Page 32: Diagnostic
Moves the upper piston and displays the current position of the piston Lower Piston Moves the lower piston and displays the current position of the piston Air Pump Switch the air pump M6 AUX output Switch the auxiliary output Egro NEXT Technical Manual Rev: AA / 09/2018... - Page 33 Shows the status of the door switch of the powder module S32 Ultrasonic Infrared 1 Infrared 2 Button & LED iSteam foamed button Shows the status of the iSteam foamed button iSteam steamed button Shows the status of the iSteam steamed button Egro NEXT Technical Manual Rev: AA / 09/2018...
- Page 34 Switch the foamed iSteam LED LED Milk steamed Switch the steamed iSteam LED Illumination White Switch the white light Switch the red light Green Switch the green light Blue Switch the blue light Egro NEXT Technical Manual Rev: AA / 09/2018...
-
Page 35: Fault Finding
Check lower piston shaft Clean lower piston/sieve if dirty (blockage can cause error) Perform brewing group calibration Link payment system interrupted Check cables and interface Check connection to control board Egro NEXT Technical Manual Rev: AA / 09/2018... -
Page 36: List Of Warnings
Short circuit iSteam air valve [Y14A] Check valve with diagnostic Check cable from valve to control board Short circuit iSteam steam valve [Y14] Check valve with diagnostic Check cable from valve to control board Egro NEXT Technical Manual Rev: AA / 09/2018... - Page 37 Check if something blocks the mixer PM: Over temperature left screw drive motor Check left screw drive with diagnostic Check cable from motor to control board Check if something blocks the left screw drive Egro NEXT Technical Manual Rev: AA / 09/2018...
- Page 38 Check left SAG motor with diagnostic Check cable from the motor to the board SAG error grinder right Check right SAG motor with diagnostic Check cable from the motor to the board Egro NEXT Technical Manual Rev: AA / 09/2018...
- Page 39 Check cable from the valve to the board Short circuit CCO heat exchanger valve [Y45] Check CCO heat exchanger valve with diagnostic Check cable from the valve to the board Egro NEXT Technical Manual Rev: AA / 09/2018...
- Page 40 Contacts Headquarters, Production Plant and R&D Centers Ansprechpartner Contacts Egro Suisse AG Rancilio Group S.p.A. Bahnhofstrasse 66 Viale della Repubblica 40 5605 Dottikon – Switzerland 20015 Villastanza di Parabiago (MI) – Italy Ph. +41 (0)56 616 95 95 Ph. +39 0331 408200...
