Technical Information
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the one and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Egro one

Summary of Contents for Egro one

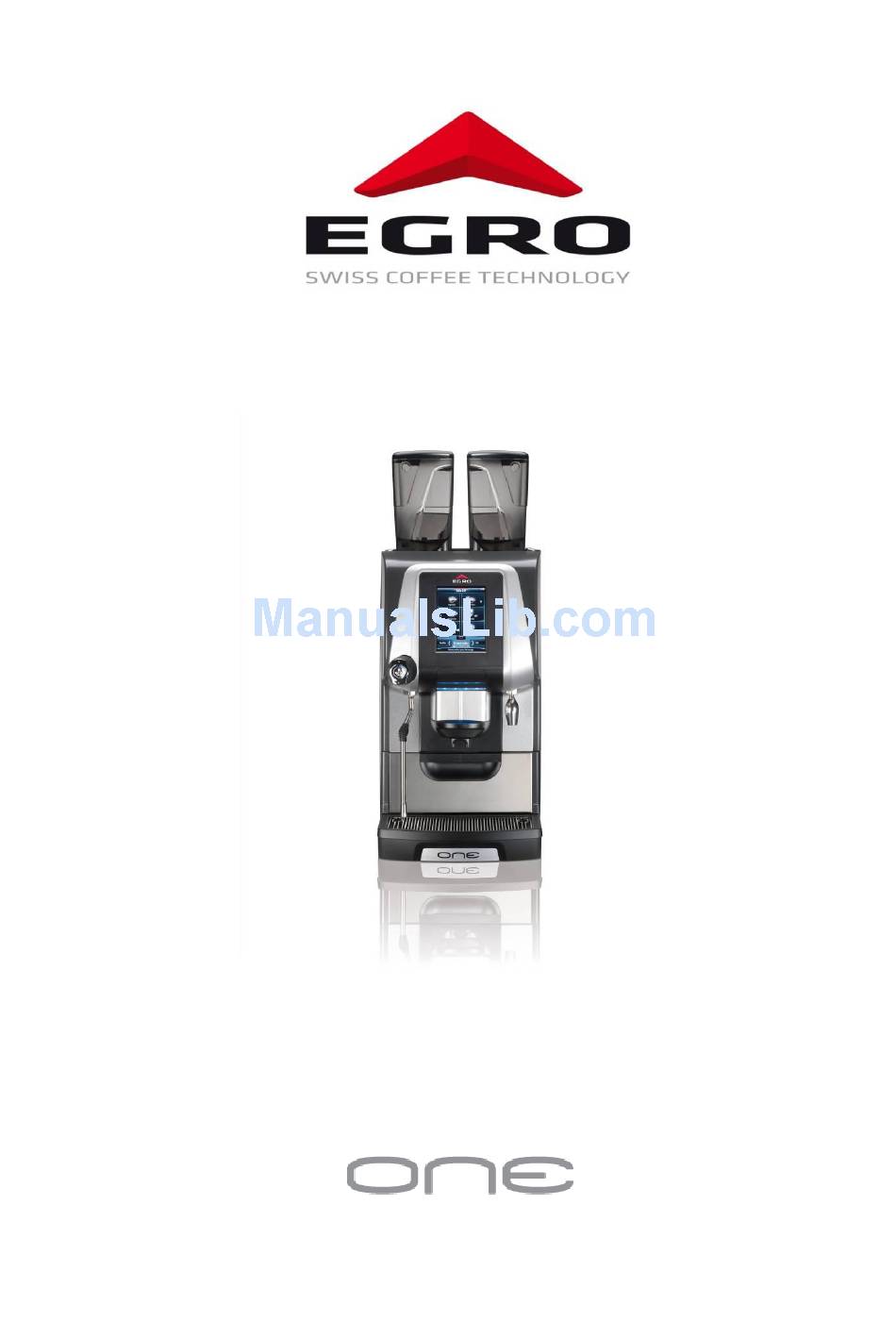

  • Page 1 Technical Information ENGLISH...

  • Page 2: Table Of Contents

    Third way drain cup ..........................6 Retrofit ............................... 6 Spring for Grinder ..........................6 TI 003 from 23.07.2010 ..............................8 Software Release V1.02 for Egro ONE and other items ....................8 Egro ONE SW Update .......................... 8 Retrofit ............................... 9 Compatibility .............................. 9 Service booklet ...........................
  • Page 3 Cleaning products with unified packing ....................17 TI 011 from 16.03.2012 ............................... 18 Software Release V2.02 for Egro ONE Touch + Key Pad ................ 18 Introduction modified connector on the brewing valve from the coffee boiler ........18 Introduction new piston shaft on the upper piston from the brewing group .......... 19 Introduction bean slider for bean hoppers ..................

  • Page 4: Ti 001 From 12.03.2010

    TI 001 from 12.03.2010 Software Release V1.01 for Egro ONE Touch Due to a problem that occurs when using the software version 1.00 of the Egro ONE Touch we provide as of now the new software version 1.01. The bug discovered in the software version 1.00 of the Egro ONE Touch could create a communication timeout error between the “control board”...

  • Page 5: Ti 002 From 30.06.2010

    There is no update of the software necessary. An update is only requested in configurations working with a payment system. Safety valve In the Egro ONE we started to use a new combined valve, which works as a safety valve and as the vacuum valve. Unfortunately we had some valves, which are leaking.

  • Page 6: Retrofit

    Spring for Grinder The grinders of the Egro ONE are adjustable from outside from the customer. But not everywhere it should be possible for the user to adjust the grinder in a wide range e.g. in self service zones.
  • Page 7 To block the grinder there is a screw to block the adjustment wheel with it. The springs have to be mounted as shown in the picture below to limit the grinder adjustment. Egro Coffee Systems AG Page 7 / 30...

  • Page 8: Ti 003 From 23.07.2010

    Egro ONE SW Update For both types of machine, the Egro ONE Touch and the Egro ONE Keypad a new software version 1.02 with the release date of 24.6.2010 is available. The following bugs are fixed: - Counters: brewing cycles, water, lifetime/brewings, lifetime/type, lifetime/products working now properly.

  • Page 9: Retrofit

    - LEVEL: 3 Educational Video A video that shows how to set up a new video with the right settings is available on the Egro home page. This video is not edited for the display of the ONE Touch! Egro Coffee Systems AG...

  • Page 10: Use Of Video

    TI 005 from 28.09.2010 OS updated for Egro ONE Touch The touch screen of the Egro ONE Touch has its own operating system. The OS is responsible for the functions of the touch screen and is working in the background.

  • Page 11: What's In The Parameter File

    The software can be installed under Windows XP, Windows Vista and Windows 7 Software Version 2.00 A new software version for the Egro ONE is available, which can be downloaded from the Web shop of the Egro homepage. The software includes modifications and bug fixes, which are listed below: SW modifications Upgraded coffee boiler management –...

  • Page 12: Update Of Sw

    SW Version V2.00 15/10/2010 Vacuum valve A new vacuum valve will be used in the Egro ONE from October on. The new vacuum valve is used for Rancilio machines quite a long time with a very good experience. This allows us to reduce the number of parts and to focus on the use of common items, wherever it makes sense.

  • Page 13: Software Version 2.01

    Egro ONE TECH-INFO Software Version 2.01 A new software version for the Egro ONE is available, which can be downloaded from the Web shop of the Egro homepage. The software includes modifications and bug fixes, which are listed below: Attention: The new software release can only be installed on machines running with software V2.00.

  • Page 14: Ti 008 From 30.03.2011

    TI 008 from 30.03.2011 New T22 and T30 valve We like to inform you that since this month the T22 and the T 30 are modified in the Egro ONE. The T 22 valves The advantage of the new valve is its coating that will prevent from corrosion even under unfavourable water condition.

  • Page 15: Ti 009 From 26.04.2011

    The bracket from the coffee spout can get loose and breaks out of this. To avoid breaking, the fixing of the screws has been strengthened. In case that the bracket gets is loose, you can replace it with the new one ID Nr. 10705711 From SN: 12001631 PIN 46055 all machines of Egro ONE will be equipped with the new bracket The hose guide for the steam pipe was optimized The hose guide of the steam pipes was optimized to avoid the pipes getting jammed or damaged.

  • Page 16: Safety Valve And The Vacuum Valve Reversed

    Unifying the side panels The side panels for the coffee machine ONE, the fridge and the cup wormer have been unified. In future only 2 different side panels with and without holes will be available. The openings for the grinder adjustment are always present, if not used they will be closed with a plastic cover.

  • Page 17: Cleaning Products With Unified Packing

    Egro ONE TECH-INFO Cleaning products with unified packing Egro and Rancilio will use in the future the same cleaning products; therefore the packaging has now both company logos. The spare part numbers and quantities have been changed as follows: Coffee cleaner:...

  • Page 18: Ti 011 From 16.03.2012

    TI 011 from 16.03.2012 Software Release V2.02 for Egro ONE Touch + Key Pad A new software version 2.02 for the Egro ONE is available, which can be downloaded from the Web shop of the Egro homepage. From SN: 12003624 PIN 63100 the Egro ONE will be equipped with the new software.

  • Page 19: Introduction New Piston Shaft On The Upper Piston From The Brewing Group

    The Introduction of the new silent blocks on the water pump -with reduced shore hardness 30- will reduce the vibration and noise behaviour from the coffee machine in function. From SN: 12004136 PIN 67648 the Egro ONE will be equipped with the new silent blocks. The new silent blocks can be retrofitted ID Nr. 36322006...

  • Page 20: Ti 013 From 22.06.2012

    TI 013 from 22.06.2012 Software Release V3.02/01 for Egro ONE Touch + Key Pad A new software version 3.02/01 for the Egro ONE is available, which can be downloaded from the Web shop of the Egro homepage. The new software contains modification and some bugs have been solved. Details are listed below: From SN: 12004320 PIN the Egro ONE Touch will be equipped with the new software V3.02...
  • Page 21 TECH-INFO b. SW modification only on Touch version If you inserted the USB pen after Installation of the new software on the Egro ONE Touch the manager or technician password is requested. The following information are added in the maintenance message (perform Maintenance) “Please Call”...
  • Page 22 The new software contains modification and some bugs have been solved. Details are listed below: From SN: 12004320 PIN the Egro ONE Touch will be equipped with the new software V3.02 and the Egro ONE Key Pad from SN: 12004321 with the new software V3.01 d.
  • Page 23 TECH-INFO e. SW modification only on Touch version If you inserted the USB pen after Installation of the new software on the Egro ONE Touch the manager or technician password is requested. The following information are added in the maintenance message (perform Maintenance) “Please Call”...

  • Page 24: Ti 014 From 31.07.2012

    New software ONE Layout for Touch and Keypad Egro ONE Layout is a software which gives the possibility to create a parameter file on the PC, for the Egro ONE Touch and Keypad. This file can be uploaded onto the machine. At the same time it is possible to create a product-label as PDF for Egro ONE Keypad which can be printed on every color printer.

  • Page 25: Ti 015 From 04.03.2013

    If you retrofit the new valve, take attention that the draining pipe (00004475) can be too short. ID Code 10060605 expansion valve - replace ID Code 00055757 New version ID 10060605 Old version ID 00055757 Egro Coffee Systems AG Page 25 / 30 08/11/2013 CH-5605 Dottikon...

  • Page 26: Ti 016 From 06.05.2013

    TECH-INFO TI 016 from 06.05.2013 New software We inform you about the software modification on the Egro ONE New Control board Software ONE V 3.03 (Basic Software) Following software bugs were fixed: W55 Connection problem between fridge and control board solved.

  • Page 27: Information About A Additional Milk Cleaner

    The Acid cleaner can be used in combination with the traditional Alkalin cleaner. For the daily cleaning 6 times the Alkalin milk cleaner and once a week the Acid cleaner ID code 69000383 New cleaner ID code 69000400 Egro Coffee Systems AG Page 27 / 30 08/11/2013 CH-5605 Dottikon...

  • Page 28: Ti 017 From 30.07.2013

    It’s not possible to upgrade an old coffee machine with the new boiler because the frame has been modified. New Software ONE V3.05 for (Touch + Key pad) Software Modification: New parameter added for the heating management of the new coffee boiler The backup-file contains now the software version of the coffee machine.

  • Page 29: New One With 13A

    V3.01 CB: SW Version: V3.05 30/05/2013 New ONE with 13A From September on ONE will be available as a 13A version. Dies version will have a coffee boiler and steam boiler with a 2.5kW heating element. New ONE Viewer 3.02 From September on a new version from the ONE Viewer 3.02 is available and can be downloaded in the...
  • Page 30 5,5 mm 1,6 mm 5,0 mm 0,9 mm 5,8 mm 1,7 mm 5,2 mm 1,0 mm 6,0 mm 1,8mm 5,4 mm 1,9 mm 5,6 mm 2,0 mm 6,0 mm Egro Coffee Systems AG Page 30 / 30 08/11/2013 CH-5605 Dottikon...
