Biamp NPX Convenience Paging Stations
NPX H1040/G1040/H1100/G1100
Installation & Operation Guide
Connecting people through extraordinary audiovisual experiences
NPX H1040/G1040
Paging Stations

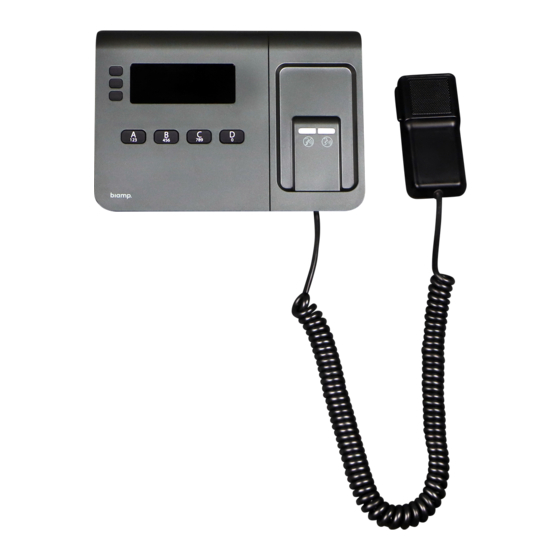

The NPX H1040/G1040 are 4-button convenience paging stations with a
handheld or gooseneck microphone for use in Tesira
features embedded DSP and on-board memory to support stored message
playback and customized preambles. NPX paging stations can be set up to
utilize AVB or Dante
paths for paging content. The NPX H1040/G1040 store
®
up to four user-configurable page codes and up to 10 prerecorded messages.
NPX H1100/G1100
Paging Stations
The NPX H1100/G1100 are 10-button convenience paging stations with a
handheld or gooseneck microphone for use in Tesira and Qt X systems.
The H1100/G1100 feature embedded DSP and on-board memory to support
standard and advanced public address functionalities. NPX paging stations can
be set up to utilize AVB or Dante
G1100 store up to 999 user-configurable page codes and up to 10 prerecorded
messages.
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
NPX H1040/G1040
and Qt
X systems. Each
®
®
paths for paging content. The NPX H1100/
®
TM
Setup and Use
The Tesira software provides an intuitive interface for setup and programming
of the NPX paging stations. The information supplied by this manual relates to
physical connections and device setup. For more details on software, please
consult the
Tesira Help
NPX may be integrated into a Qt X sound masking system as an audio source
via the
Con iguration Tab
information on the web-based device and system management for the Qt X.
Installation
Each model supports both tabletop and wall mounting with a removable "foot"
that allows the paging station to be mounted flat against any surface. Click
here
for installation details.
NPX H1100/G1100
File.
in the Qt X design software. Click
here
for
W:
www.biamp.com
DEC 2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Biamp NPX H1040
Summary of Contents for Biamp NPX H1040
- Page 1 NPX H1040/G1040 NPX H1040/G1040 Paging Stations Setup and Use The NPX H1040/G1040 are 4-button convenience paging stations with a The Tesira software provides an intuitive interface for setup and programming handheld or gooseneck microphone for use in Tesira and Qt X systems.
- Page 2 NPX HANDHELD/GOOSENECK FRONT & BACK Front 1. LCD Menu Navigation Buttons Up, Down and Select buttons allow the user to navigate the LCD menu. 2. LCD Allows the user to view menus and functions. See Operation for more details. 3. Page Code Selection Buttons Defines a voice-paging operation including its Figure 3: NPX Back Panel type, destination and priority.
-
Page 3: Product Installation
PRODUCT INSTALLATION Install away from heat sources such as vents, radiators, heat registers and 4. Secure the foot to a flat surface. Cut a hole into the surface, below or stoves or near water or steam. Do not exceed the maximum ambient operating just beyond, where the RJ-45 port at the back of the NPX will be located. -
Page 4: Wall Mount Installation
PRODUCT INSTALLATION (CONTINUED) Wall-Mount Installation An optional wall-mounting bracket is clipped to the back of the NPX but must 5. Attach the bracket to a single or double gang box with flat-head screws as be removed and flipped for installation. shown in Figure 13. -
Page 5: Operation
OPERATION LCD Button Navigation Up, Down and Select navigation buttons adjacent to the LCD allow the user to navigate the system of menus for the NPX device. Down Select The table below shows the screens and navigation during and after powering up the NPX device: Function Navigation Description... - Page 6 OPERATION (CONTINUED) Playback a recorded message Paging and Message Playback Instructions 3. At the Page Code screen press the top or middle LCD buttons next to to navigate to and highlight a specific page code. The user may also type the appropriate page code number on the keypad (10-key only). 4.
- Page 7 OPERATION (CONTINUED) Paging and Message Playback LCD Button Navigation Function Navigation Description Select a Page Code Displays the current page code and allows • Press to navigate to appropriate page the user to scroll to select a page code. code or type the page code number on the keypad (10-key only).
- Page 8 OPERATION (CONTINUED) Paging and Message Playback LCD Button Navigation Function Navigation Description Playback Failed • Displays briefly when the user tries to play back a message with a non-existent recording. Destination Busy Displays when at least two paging stations • Press to go to previous page code.
- Page 9 OPERATION (CONTINUED) Record a Message LCD Button Navigation Function Navigation Description Recordings Screen Displays the list of assigned and unassigned • Press to go to previous recording slot. message slots. • Press to go to next recording slot. • Press to go to Page Code screen if slot is not selected.
- Page 10 OPERATION (CONTINUED) LCD Icons and Fault Codes System Alerts displays a list of current faults on the NPX device: The icons below represent the LCD functions on the NPX device to help the user to navigate the function menus: Fault Code Description Icon Function...
- Page 11 OPERATION (CONTINUED) Keypad NPX H1040/G1040 4-Key Keypad NPX H1100/G1100 10-Key Keypad Keypad Functionality 4-Button 10-Button The 10-button station allows up to 999 page codes to be assigned. Users can The 4-button station allows up to four page codes to be assigned (one for each of the four buttons A,B,C,D).
- Page 12 page 12 Installation and Operation Guide...
- Page 13 Installation and Operation Guide page 13...
- Page 14 page 14 Installation and Operation Guide...
- Page 15 CONTACT US Email support@biamp.com support.biamp.com Warranty www.biamp.com/legal/warranty-information Safety and Compliance www.biamp.com/compliance Dante is a registered trademark of Audinate ® 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com DEC 2021...
