Biamp Parlé TTM-X Installation & Operation Manual

Parlé TTM-X Microphone
™
Installation & Operation Guide
Installation & Operation Guide
Parlé TTM-X Microphone and Network Box

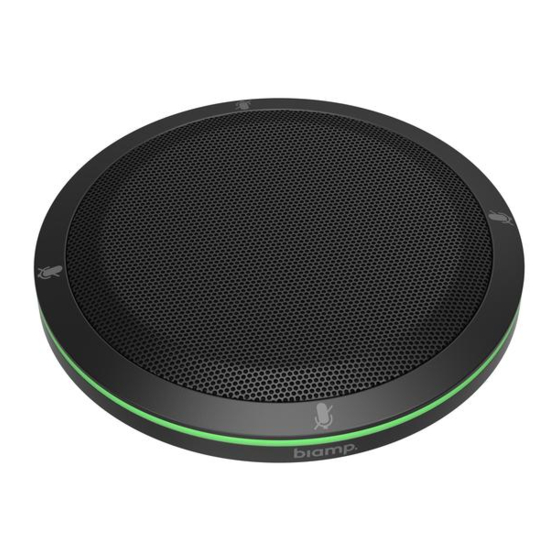

Parlé TTM-X - Table Microphone
The Parlé TTM-X is an AVB low-profile table microphone for use in Tersira
systems. Comprising a network box and a table microphone, each microphone
includes Beamtracking™ technology with four 90-degree zones, providing full
360-degree coverage of the meeting space. Each network box has its own
digital signal processing module and is equipped with an additional RJ-45
connector to add an optional TTM-XEX. A maximum of two microphones are
permitted per network box (one TTM-X with a TTM-XEX).
Parlé TTM-XEX - Expansion Table Microphone
The Parlé TTM-XEX is identical to the TTM-X microphone and is intended to be
used as a second microphone in conjunction with the TTM-X. The TTM-XEX is
not a standalone device.
A: 9300 Gemini Drive, Beaverton, OR 97008

Setup and Use

The Tesira software provides an intuitive interface for setup and programming
of the Parlé TTM-X and TTM-XEX. The information provided by this manual
relates to physical connections and device setup. For more details on software
setup, please consult the

Installation

Install the unit away from heat sources, such as vents and radiators, and in
rooms with adequate ventilation. Ensure the air can circulate freely around the
unit. Do not exceed the maximum ambient operating temperature of 32°-104°F
(0-40°C) for the microphones and 32°-113°F (0°-45°C) for the network box.

Features

• Low-profile circular tabletop microphone that measures 4.7 inches (120
mm) in diameter
• Beamtracking technology actively tracks and intelligently mixes
conversations
• Beamtracking works out-of-box without any lobe aiming or room mapping
• LED mute status
• Network box includes DSP for Beamtracking
• Uses only one channel of AEC per microphone
T: +1 877.242.6796
Tesira Help File.
W: www.biamp.com
