Adjusting The Vinyl Coated Cables - SunSetter EasyShade Instructions Manual

STEP 13. Place the Cable Guide Bracket over the pre-drilled holes and secure in place with the #8 x
1-1/2 Flat Head screws.

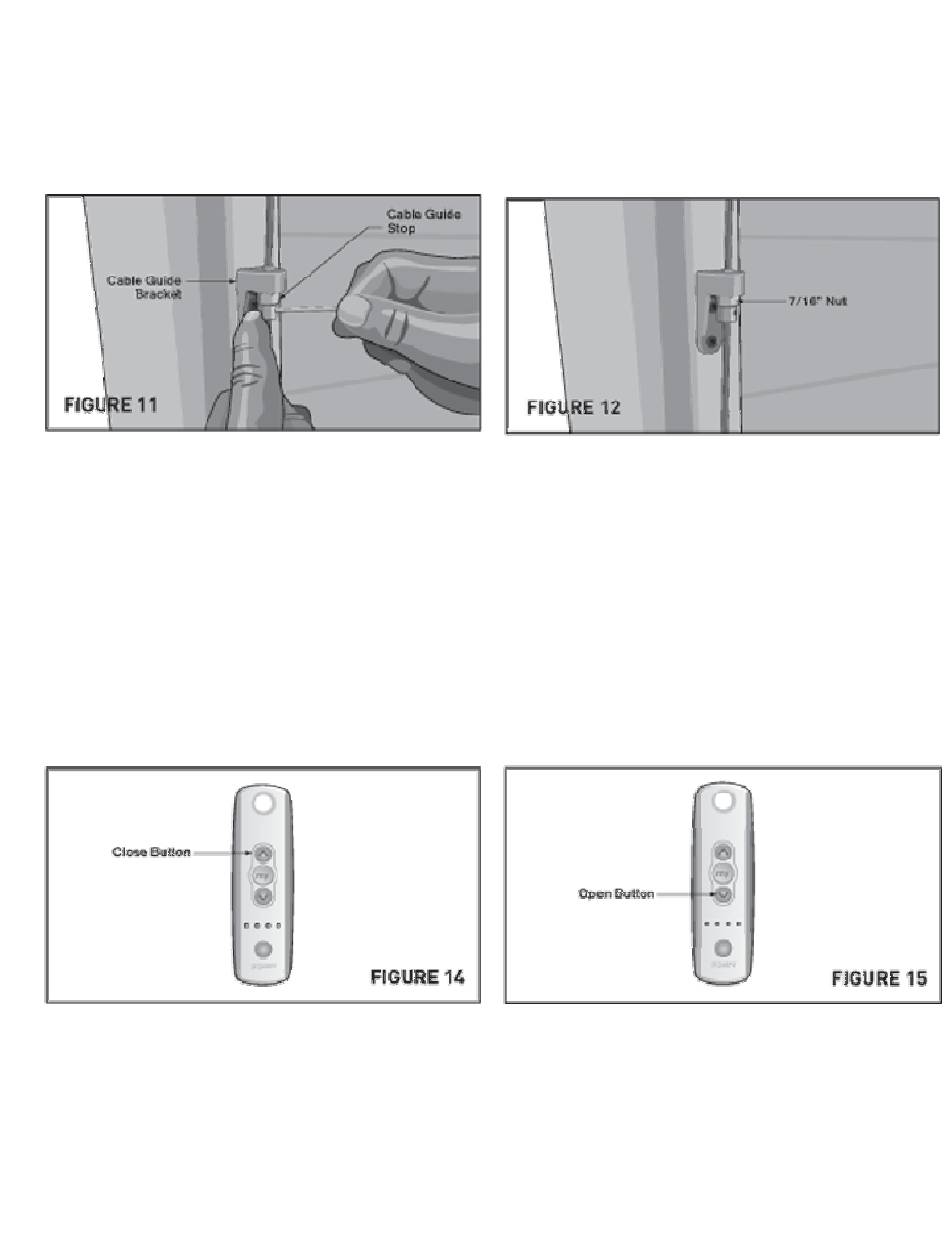

STEP 14. Place the lower end of one of the Vinyl Coated cables through the hole in the Cable Guide
Bracket you just installed and from the bottom slide one of the Cable Guide Stops onto the vinyl
cable and secure in place with the supplied 5/64" Allen wrench. Repeat for the other side of the
EasyShade. (See Figure 11)
STEP 15. You should check to ensure that the Vinyl Coated Cables are tight, if they seem to be loose you can
adjust the tension using a 7/16" open end wrench as follows. On each of the Cable Guide Stops you will find
7/16" nut, by turning the nut Counter Clockwise you can tighten the cable. (See Figure 12) NOTE: DO NOT
OVER TIGHTEN THE CABLE.
STEP 16. If you have excess Vinyl Coated Cable extending from the bottom of the Cable Guide Stops, trim it
off using wire cutters. (See Figure 13)
STEP 17. Plug the power cord back into the electrical outlet.
NOTE: THE FOLLOWING PROCEDURE WILL ALLOW YOU TO SET THE OPEN LIMIT TO YOUR SPECIFIC
INSTALLATION POSITION.
STEP 18. Use the close button on your remote to Close the EasyShade. (See Figure 14)
STEP 19. Use the open button on your remote to Open the EasyShade to the current open limit position and let
it stop. (See Figure 15)
STEP 20. Press the Open and Close buttons simultaneously until the EasyShade jogs, then release. (A "jog" is a
small back and forth movement of the motor.) (See Figure 16)
