STEP 1. Determine the desired location for the mounting brackets, making sure that they are plumb
and level. Using a pencil, mark the 2 hole locations in the bracket. Using a 1/8" bit, drill holes
approximately 1-½" deep at both hole locations. Repeat for the mounting bracket on the other side,
and the center mounting location on 10' to 12' models.

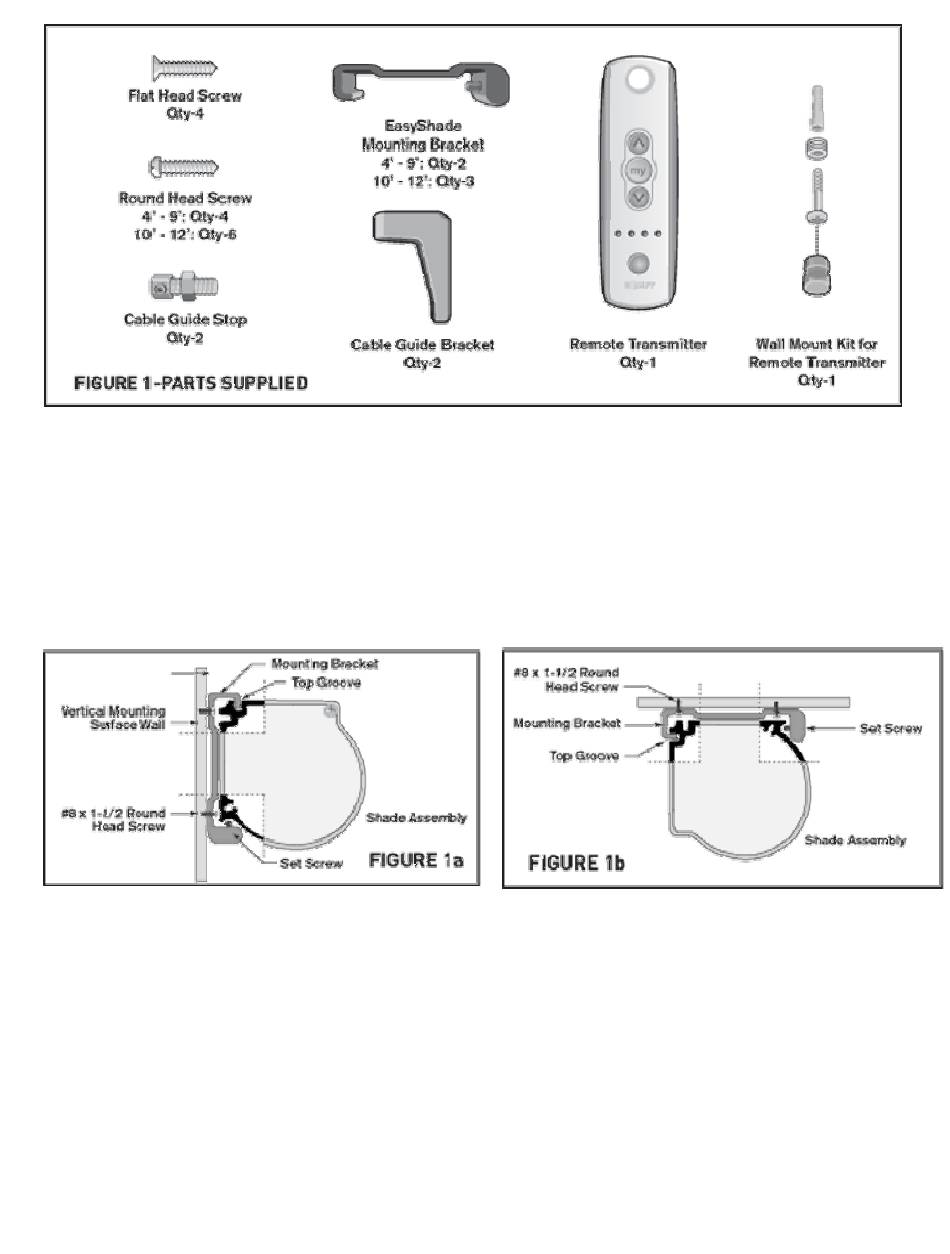

STEP 2A. For mounting on a wall (vertical surface), secure each bracket with two #8 x 1-½"round-
head screws. Note the orientation of the bracket, the end with the set screw should be at the
bottom. See Figure 1a.
STEP 2B. For mounting on an underside structure (horizontal surface), secure each bracket with two
#8 x 1-½" round-head screws. Note the orientation of the bracket, the end with the set screw
should face toward you as you face your mounting location. See Figure 1b.
STEP 3. With your helper, lift the shade assembly up to the installed mounting brackets and insert
the Top groove of the shade assembly onto the protruding tab on the mounting brackets (See Figure
1a). While maintaining upward pressure to keep the top groove of the shade assembly on the tab of
the mounting brackets, press the shade assembly toward the mounting bracket and be sure that the
set screw is aligned in the recessed portion of the shade assembly. See Figure 2
