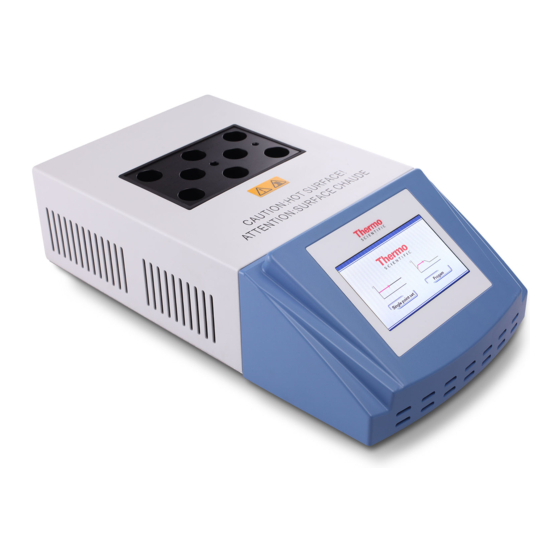

- Page 1 Thermo Scientific Touch Screen Drybath Dry Bath with Advanced Microprocessor Control Catalog Number: 88870007, 88870008 88870009, 88870010 88870011, 88870012 Operation Manual 0000849 Visit us online to register your warranty www.thermoscientific.com/labwarranty...
- Page 2 Note Notes alert you to pertinent facts and conditions. Warning If the Thermo Scientific Touch Screen Drybath is used in a manner not specified by the manufacturer, the protection provided by the unit may be impaired.
- Page 3 We can also provide you with a quotation on our Extended Warranty for your Thermo Scientific products. Whatever Thermo Scientific products you need or use, we will be happy to discuss your applications. If you are experiencing technical problems, working together, we will help you locate the problem and, chances are, correct it yourself...over the telephone without a service...
-
Page 4: Table Of Contents
Warranty Information ......... 10-1 Thermo Scientific... -
Page 6: Safety
No items should be put on the power cord when the instrument is in operation. Drybath Incub Thermo Scientific... - Page 7 1-2Drybath Incubator Thermo Scientific...
- Page 8 If the surface of the instrument is polluted, it can be cleaned with a slightly damp soft cloth. Warning When cleaning the instrument, the power supply should be shut o and unplugged. e instrument surface should be cleaned with a non- corrosive cleaning agent. Drybath Incubator Thermo Scientific...
-
Page 10: Introduction
• Heat blocks help avoid possible contamination while containing the sample inside a tube • The heat blocks are easily replaced, cleaned or disinfected and are suit- able for various tubes. • Built-in over-temperature protection device warrants sample and user safety • Temperature deviation adjustment. Thermo Scientific Drybath Incubator... -
Page 12: Features
373×200×100 mm 403×200×100 mm 535×200×100 mm Size (mm) (L×W×H) 14.7×7.87×3.94 in 15.9×7.87×3.94 in 21.1×7.87×3.94 in Weight 3.4 kg (7.5 lbs.) 3.7 kg (8.16 lbs.) 5.1 kg (11.24 lbs.) F 250V 2.5A F 250V 5A F 250V 8A Fuse Protector（ø5×20） Thermo Scientific... - Page 13 Declaration of Conformity We hereby declare under our sole responsibility that this product conforms with the technical requirements of the following standards: CE EMC: EN 61326-1 CE Safety: EN 61010-1 CE Safety: EN61010-2-010 61010-1/CSA C22.2 NO. 61010-1 ROHS2.0: 2011/65/EU Thermo Scientific...
-
Page 14: Preparation Work
Note 1) When the external temperature sensor is connected, the internal temperature sensor will disconnect automatically, and the temperature control and display will relay on the external temperature sensor. 2) DO NOT plug in or remove the external temperature sensor without the power being off. Thermo Scientific Drybath Incubator... -
Page 16: Operation Guidance
Press “Temp” to set the temperature. Press “Time” to set the time. Instruction: There is limitation for temperature and time setting. The setting temperature range is: 15 ～135°C；the time range is: 0～99： and “∞”. Thermo Scientific Drybath Incubator... - Page 17 Press “BACK” to go back to the main interface. Enter into the setting interface of the specific file in accordance with its name. If the file has a password, then enter into the password inputting interface. Drybath Incubator Thermo Scientific...
- Page 18 Caution This instrument doesn’t have cooling function. If the user wants to set multiple sections, set the temperature from low to high. Otherwise, the temperature will be very slowly decreasing while the blocks cool down. Thermo Scientific Drybath Incubator...
- Page 19 Press “STOP”, the cancel interface will pop up. Refer to ‘Single Running Interface’. Instruction: During the operation of the instrument, the temperature and the time should not be changed. If needed, stop the program and enter into the setting interface to change them. Drybath Incubator Thermo Scientific...
-
Page 20: Failure Analysis And Troubleshooting
Caution The user is not allowed to open the housing of the instrument for inspection during the warranty period. If any failures result from opening the housing for inspection, contact Thermo Fisher Scientific. ▲ Thermo Scientific Drybath Incubator... -
Page 21: Modular Block Accessories
For 15ml conical bottom test tubes 88870118 For 50ml conical bottom test tubes 88870119 For 96 well none skirted PCR plate 88870120 For 96 well half / full skirted PCR plate 88870121 Temperature Probe, PT1000 88870122 Drybath Incubator Thermo Scientific... -
Page 22: Wiring Diagram
Section 9: Wiring Diagram (The page is just for reference and is subject to change without prior notice) Thermo Scientific Drybath Incubator... -
Page 24: Warranty Information
The above mentioned warranty does not apply to damages incurred by improper use and maintenance, using under unqualified conditions, unauthorized maintenance or modification. Thermo Fisher Scientific does not provide any other warranty expressions otherwise; and does not bear liabilities for business promotion under special circumstances. Thermo Scientific Drybath Incubator 10-1... - Page 26 Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales representative for details. For the name of the authorized Thermo Scientific product dealer nearest you or any additional information, contact us: North America: USA / Canada +1-866-984-3766 (866-9-Thermo), www.thermo.com...
