HK Instruments DPT-R8 Series Installation Instructions

INTRODUCTION

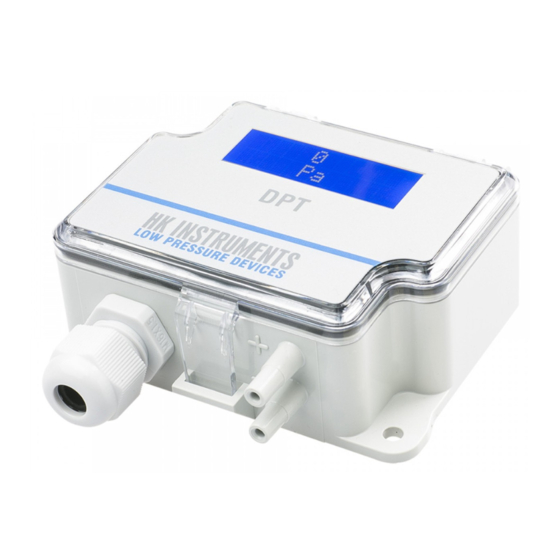

Thank you for choosing an HK Instruments DPT series differential
pressure transmitter. The DPT series is intended for use in com-
mercial environments. It is designed with six unit selections (Pa,
kPa, mbar, inchWC, mmWC, psi) and eight field selectable meas-
urement ranges (unidirectional and bi-directional) to meet your job
measurement requirements. The DPT-R8 series is comprised of
the DPT250-R8 with ranges from 25 Pa to 250 Pa, the DPT2500-
R8 with ranges from 100 Pa to 2500 Pa, and the DPT7000-R8
with ranges from 1000 Pa to 7000 Pa.
All DPT-R8 series differential pressure transmitters are available
with display and autozero calibration.
APPLICATIONS
DPT-R8 series devices are commonly used in HVAC/R systems for:
• fan, blower and filter monitoring
• pressure and flow monitoring
SPECIFICATIONS
• valve and damper control
• pressure monitoring in cleanrooms
SPECIFICATIONS
Performance
Accuracy (from applied pressure):
±1,5 % + 1 Pa
(including: general accuracy, temperature drift, linearity,
hysteresis, long term stability, and repetition error)
Thermal effects:
Temperature compensated across the full spectrum of
capability
Overpressure:
Proof pressure: 25 kPa
Burst pressure: 30 kPa
Zero point calibration:
Automatic autozero or manual pushbutton
Response time:
4.0 s or 0.8 s, selectable via jumper
Technical Specifications
Media compatibility:
Dry air or non-aggressive gases
Measuring units:
Pa, kPa, mbar, inchWC, mmWC, psi, selectable via
jumper
Measuring element:
Piezoresistive
Environment:
Operating temperature: -10...50 °C
Storage temperature: -20...70 °C
Humidity: 0 to 95 % rH, non condensing
Copyright HK Instruments 2014
DIFFERENTIAL PRESSURE TRANSMITTERS
DPT-R8 Series
• READ THESE INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS
DEVICE.
• Failure to observe safety information and comply with
instructions can result in PERSONAL INJURY, DEATH AND/OR
PROPERTY DAMAGE.
• To avoid electrical shock or damage to equipment, disconnect
power before installing or servicing and use only wiring with
insulation rated for full device operating voltage.
• To avoid potential fire and/or explosion do not use in potentially
flammable or explosive atmospheres.
• Retain these instructions for future reference.
• This product, when installed, will be part of an engineered
system whose specifications and performance characteristics
are not designed or controlled by HK Instruments. Review
applications and national and local codes to assure that the
installation will be functional and safe. Use only experienced
and knowledgeable technicians to install this device.
Physical
Dimensions:
Case: 90.0 x 95.0 x 36.0 mm
Weight:
150 g
Mounting:
2 each 4.3 mm screw holes, one slotted
Materials:
Case: ABS
Lid: PC
Duct connectors: ABS
Tubing: PVC
Protection standard:
IP54
Display (Optional)
2-line display (12 characters/line)
Line 1: active measurement
Line 2: units
Electrical connections:
4-screw terminal block
Wire: 12–24 AWG (0.2–1.5 mm 2 )
Cable entry: M16
Pressure fittings:
Male Ø 5,0 mm and 6,3 mm
+ High pressure
− Low pressure
www.hkinstruments.fi
WARNING
Electrical
Voltage:
Circuit: 3-wire (V Out, 24 V, GND)
Input: 24 VAC or VDC, ±10 %
Output: 0–10V
Power consumption: <1.0 W
Resistance minimum: 1 kΩ
Current:
Circuit: 3-wire (mA Out, 24 V, GND)
Input: 24 VAC or VDC, ±10 %
Output: 4–20 mA, selectable via jumper
Power consumption: <1.2 W
Maximum load: 500 Ω
Conformance
Meets the requirements for CE marking:
EMC Directive 2004/108/EY
RoHS Directive 2002/95/EY
INSTALLATION
INSTRUCTIONS
Installation version 2.0 2014
