HK Instruments DPT-R8 Series Installation Instructions

INTRODUCTION

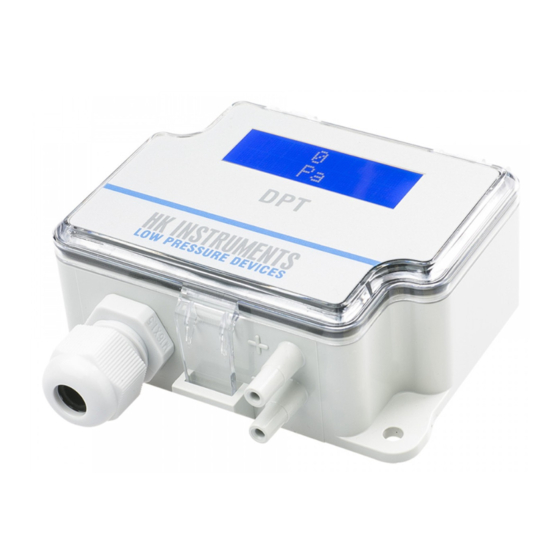

Thank you for choosing an HK Instruments DPT Series Differential
Pressure Transducer. The DPT Series is intended for use in commercial
environments. It is designed with four unit selections (inWC, mmWC, Pa,
mbar) and eight eld selectable measumerement ranges (Unidirectional
and Bi-directional) to meet your job measurement requirements. The
DPT-R8 Series Differential Pressure Transducers is comprised of the
DPT1-R8 with ranges from 0.1 to 1.0 inWC, the DPT10-R8 with ranges
from 0.5 to 10.0 inWC, and the DPT30-R8 with ranges 10.0 to 30.0 inWC.
All DPT-R8 Series Differential Pressure Transducers are available with
display, and NIST standard calibration certi cates.
APPLICATIONS
DPT-R8 series devices are commonly used in
HVAC/R systems for:
• fan, blower and filter monitoring
• pressure and flow monitoring
• valve and damper control
• pressure monitoring in clean rooms
SPECIFICATIONS
Performance
Accuracy (at applied pressure):
Ranges < 0.5 inWC = ±0.01 inWC
Ranges ≥ 0.5 inWC = ±1.5% inWC
Accuracy speci cations include: general accuracy, temperature drift, linearity,
hysteresis, long term stability, and repetition error).
Thermal Effects:
Temperature compensated across the Full Spectrum of capability.
Overpressure:
Proof Pressure: 100 inWC
Burst Pressure: 120 inWC
Zero Point Calibration:
Automatic with circuit or Manual pushbutton Auto-Zero
Response Time:
4.0 sec or 0.8 sec, selectable via jumper
Technical Speci cations
Media Compatibility:
Dry air or non-aggressive gases
Measuring units:
Pa, mbar, inWC, mmWC, selectable via jumper
Measuring element:
Piezoresistive
Environment:
Operating Temperature: 14 -122°F (-10 - 50°C)
Storage Temperature: -4 - 158°F (-20 - 70°C)
Humidity: 0 to 95% RH, non condensing
Physical
Case:
Dimensions: 3.54" x 3.74" x 1.4" (90.0 x 95.0 x 36.0 mm)
Weight: 5.3 oz (150 g)
Mounting: 2 each 0.1875" (4.3mm) screw holes, one slotted
Materials: Case: ABS (UL 94 V-0 Approved)
Lid: PC (UL 94 V-0 Approved)
Protection standard: IP54 / NEMA3
Display (Optional)
3 1/2 Digit LCD Backlit Display
2-Line Display (12 character/line)
Line 1: Active Measurement
Line 2: Units
Size: 1.81" x 0.57"
Copyright HK Instruments
DIFFERENTIAL PRESSURE TRANDUCERS - AIR
DPT1-R8 / DPT10-R8 / DPT30-R8
WARNING
●READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING
TO INSTALL, OPERATE OR SERVICE THIS DEVICE.
●Failure to observe safety information and comply with instructions could
result in PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE.
●To avoid electrical shock or damage to equipment, disconnect power
before installing or servicing and use only wiring with insulation rated for
full device operating voltage.
●To avoid potential re and/or explosion do not use in potentially
flammable or explosive atmospheres.
●Retain these instructions for future reference.
●This product, when installed, will be part of an engineered system whose
speci cations and performance characteristics are not designed or
controlled by HK Instruments, Inc. Review applications and national an
local codes to assure that the installation will be functional and safe. Use
only experienced, knowledgeable, technicians to install this device.
Electrical Connections:
4 screw terminal block
Wire: 12-24AWG (0.2 – 1.5 mm )
Cable Entry:
Strain Relief: M16
Knockout : 0.625" (16mm)
Pressure Fittings:
3/16" (5.2mm) barbed brass
+ High pressure
− Low pressure
Electrical
Voltage:
Circuit: 3-wire (V Out, 24V, GND)
Input: 24VAC or VDC, ±10%
Output: 0-5V or 0-10V, selectable via jumper
Power Consumption: <1.0W
Resistance Minimum: 1k
Current:
Circuit: 3-wire (mA Out, 24V, GND)
Input: 24VAC or VDC, ±10%
Output: 4-20 mA, selectable via jumper
Power Consumption: <1.2W
Maximum load: 500
Conformance
Meets requirements for CE marking:
EMC directive 2004/108/EY
RoHS Directive 2002/95/EY
Meets safety requirements for electrical equipment for measurement, control,
and laboratory use:
ETL marking, standard IEC61010-1
Product is tested and meets the NRTL product-approval requirements.
INSTALLATION
INSTRUCTIONS
Installation Version 1.0 2012
