HK Instruments DPT-Flow-Batt Series Installation Instructions

INTRODUCTION

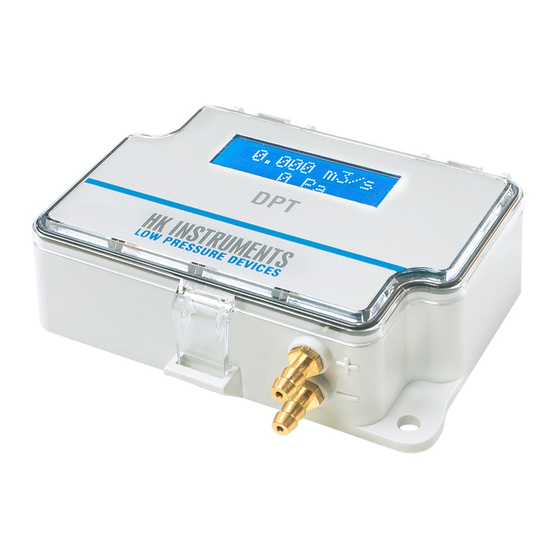

Thank you for choosing an HK Instruments DPT-Flow-Batt series
air flow meter. The DPT-Flow-Batt series is intended for use in en-
vironments and applications where electricity is not available. The
DPT-Flow-Batt measures air flow, velocity and differential pressure.
It is designed to be used in combination with centrifugal fans that
provide differential pressure connections and K-values.
APPLICATIONS
DPT-Flow series devices are commonly used in HVAC/R systems for:
• air flow monitoring across centrifugal fans and blowers
• in-duct air flow monitoring
SPECIFICATIONS
Performance
Accuracy (from FS):
±1.5 %
(Accuracy specifications include: general accuracy,
temperature drift, linearity, hysteresis, long term
stability, and repetition error)
Thermal effects:
Temperature compensated across the full spectrum of
capability
Overpressure:
Proof pressure: 25 kPa
Zero point calibration:
Manual pushbutton
Response time:
1.0−10 s, selectable via menu
Technical Specifications
Media compatibility:
Dry air or non-aggressive gases
Pressure units (select via menu):
Pa, kPa, mbar, inWC, mmWC
Flow units (select via menu):
Volume: m /s, m /hr, cfm, l/s
3 3
Velocity: m/s, ft/min
Measuring element:
MEMS
Copyright HK Instruments 2017
AIR FLOW AND VELOCITY TRANSMITTERS
DPT-Flow-Batt
• READ THESE INSTRUCTIONS CAREFULLY BEFORE
• Failure to observe safety information and comply with
• To avoid potential fire and/or explosion do not use in potentially
• Retain these instructions for future reference.
• This product, when installed, will be part of an engineered
Environment:
Operating temperature: -10...50 °C
Storage temperature: -20...70 °C
Humidity: 0 to 95 % rH, non condensing
Physical
Dimensions:
Case: 102.0 x 71.5 x 36.0 mm
Weight:
150 g
Mounting:
2 each 4.3 mm screw holes, one slotted
Materials:
Case: ABS
Lid: PC
Duct connectors: ABS
Tubing: PVC
Protection standard:
IP54
Display
2-line display (12 characters/line)
Line 1: Volume or velocity measurement
Line 2: Pressure measurement
Size: 46.0 x 14.5 mm
www.hkinstruments.fi
WARNING
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS
DEVICE.
instructions can result in PERSONAL INJURY, DEATH AND/OR
PROPERTY DAMAGE.
flammable or explosive atmospheres.
system whose specifications and performance characteristics
are not designed or controlled by HK Instruments. Review
applications and national and local codes to assure that the
installation will be functional and safe. Use only experienced and
knowledgeable technicians to install this device.
Electrical connections:
9 VDC battery connector
Pressure fittings
Male ø 5.0 mm and 6.3 mm
Electrical
Current consumption:
~20 mA on active mode
Conformance
Meets requirements for CE marking:
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
COMPANY WITH
MANAGEMENT SYSTEM
CERTIFIED BY DNV GL
= ISO 9001 = ISO 14001 =
INSTALLATION
INSTRUCTIONS
RoHS 2
2011/65/EU
Installation version 4.0 2017
