HK Instruments DPT-Flow-1000 Installation Instructions And Owner's Manual

INTRODUCTION

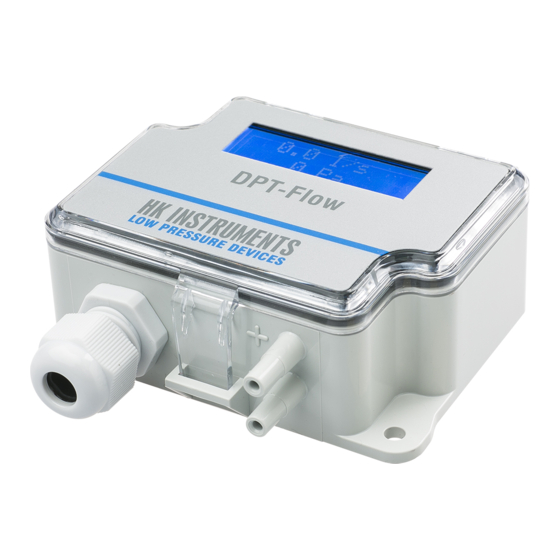

Thank you for choosing an HK Instruments DPT-Flow series air
flow transmitter. The DPT-Flow series is intended for use in com-
mercial environments. The DPT-Flow measures air flow, velocity
and differential pressure. It is designed to be used in combination
with air flow measurement probes (i.e. FloXact) or with centrifugal
fans that provide differential pressure connections and K-values.
The DPT-Flow series of air flow transmitters is comprised of DPT-
Flow-1000, DPT-Flow-2000, DPT-Flow-5000 and DPT-Flow-7000
with measurement ranges of 0–1000 Pa, 0–2000 Pa, 0–5000 Pa
and 0–7000 Pa respectively. All models come with display and
manual pushbutton autozero. The DPT-Flow is available with op-
tional autozero calibration.
APPLICATIONS
DPT-Flow series devices are commonly used in HVAC/R systems
for:
• air flow monitoring across centrifugal fans and blowers
• in-duct air flow monitoring
• VAV applications
SPECIFICATIONS
Performance
Accuracy (at applied pressure):
Ranges < 125 Pa = ±2 Pa
Ranges 125 Pa = ±1,5 % Pa
(Accuracy specifications include: general accuracy,
temperature drift, linearity, hysteresis, long term
stability, and repetition error)
Thermal effects:
Temperature compensated across the full spectrum of
capability
Overpressure:
Proof pressure: 25 kPa
Zero point calibration:
Automatic autozero or
manual pushbutton
Response time:
1.0−20 s, selectable via menu
Technical Specifications
Media compatibility:
Dry air or non-aggressive gases
Pressure units (select via menu):
Pa, kPa, mbar, inWC, mmWC
Pressure output scale (select via menu):
DPT-Flow-1000 2000 DPT-Flow-5000
DPT-Flow-
Pa 100-1,000 200-2,000
kPa 0.1-1.0 0.2-2.0
mbar 1-10 2.0-20
mmWC 10-100 20-200
inWC 0.4-4.0 0.8-8.0
Flow units (select via menu):
Volume: m3/s, m3/hr, cfm, l/s
Velocity: m/s, ft/min
Copyright HK Instruments 2014
AIR FLOW AND VELOCITY TRANSMITTERS
DPT-Flow Series
Flow output scale (select via menu):
Units
m3/s
m3/hr
cfm
l/s
m/s
Measuring element:
Piezoresistive
Environment:
Operating temperature:
-10...50 °C
with autozero (-AZ) calibration -5...50 °C
Storage temperature:
-20...70 °C
Humidity:
0 to 95 % rH, non condensing
Physical
Dimensions:
Case: 90.0 x 95.0 x 36.0 mm
Weight:
150 g
Mounting:
DPT-Flow-7000
2 each 4.3 mm screw holes, one slotted
500-5,000 700-7,000
Materials:
0.5-5.0 0.7-7.0
Case: ABS
5.0-50 7.0-70
Lid: PC
50-500 70-700
Duct connectors: ABS
2.0-20 2.5-30
Tubing: PVC
Protection standard:
IP54
WARNING
• READ THESE INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS
DEVICE.
• Failure to observe safety information and comply with
instructions can result in PERSONAL INJURY, DEATH AND/OR
PROPERTY DAMAGE.
• To avoid electrical shock or damage to equipment, disconnect
power before installing or servicing and use only wiring with
insulation rated for full device operating voltage.
• To avoid potential fire and/or explosion do not use in potentially
flammable or explosive atmospheres.
• Retain these instructions for future reference.
• This product, when installed, will be part of an engineered
system whose specifications and performance characteristics
are not designed or controlled by HK Instruments. Review
applications and national and local codes to assure that the
installation will be functional and safe. Use only experienced
and knowledgeable technicians to install this device.
Range
0.025-50
100-200,000
50-100,000
25-50,000
1-100
www.hkinstruments.fi
INSTALLATION
INSTRUCTIONS
Display
2-line display (12 characters/line)
Line 1: Volume or velocity measurement
Line 2: Pressure measurement
Size: 46.0 x 14.5 mm
Electrical connections:
4-screw terminal block
Wire: 12–24 AWG (0.2–1.5 mm )
2
Cable entry:
Strain relief: M16
Knockout : 16 mm
Pressure fittings
Male Ø 5.0 mm and 6.3 mm
Electrical
Voltage:
Circuit: 3-wire (V Out, 24 V, GND)
Input: 24 VAC or VDC, ±10 %
Output: 0–10 V, selectable via jumper
Power consumption: <1.0 W
Resistance minimum: 1 kΩ
Current:
Circuit: 3-wire (mA Out, 24 V, GND)
Input: 24 VAC or VDC, ±10 %
Output: 4–20 mA, selectable via jumper
Power consumption: <1.2 W
Maximum load: 500 Ω
Conformance
Meets requirements for CE marking:
EMC Directive 2004/108/EY
RoHS Directive 2002/95/EY
Installation version 2.0 2014
