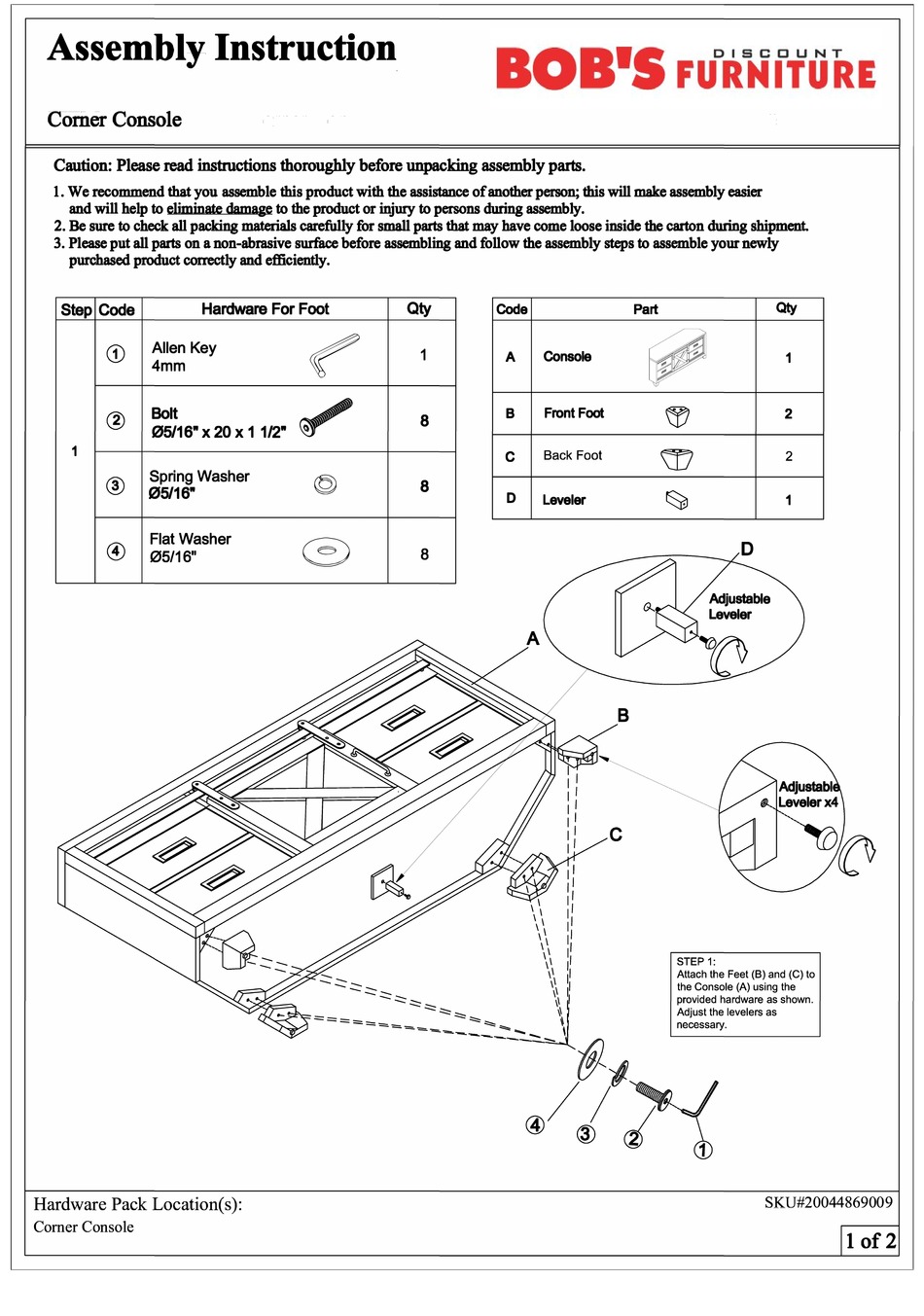

Assembly Instruction
Comer Console
Caution: Please read instructions thoroughly before unpacking assembly parts.
1. We recommend that you assemble this product with the assistance of another person; this will make assembly easier
and will help to eliminat.e damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment
3. Please put all parts on a non-abrasive surface before assembling and follow the assembly steps to assemble your newly
purchased product correctly and efficiently.
Hardware For Foot
Step Code
Allen Key
G)
4mm
® Bolt
05/16" X 20 X 1 1/2"
1
Spring Washer
®
05/16"
Flat Washer
©
05/16"
Hardware Pack Location( s):
Comer Console
Qty
1
�
8
�
©
8
@)
8
Code Part
A
Console
w
B
Front Foot
\V
C
Back Foot
D
Leveler
�
B
Qty
1
2
2
1
Adjustable
Leveler
�
STEP 1:
Attach the Feet (B) and (C) to
the Console (A) using the
provided hardware as shown.
Adjust the levelers as
necessary.
SKU#20044869009
1 of 2
