Bob's Discount Furniture ELEVATIONS 20070173 Assembly Instructions Manual

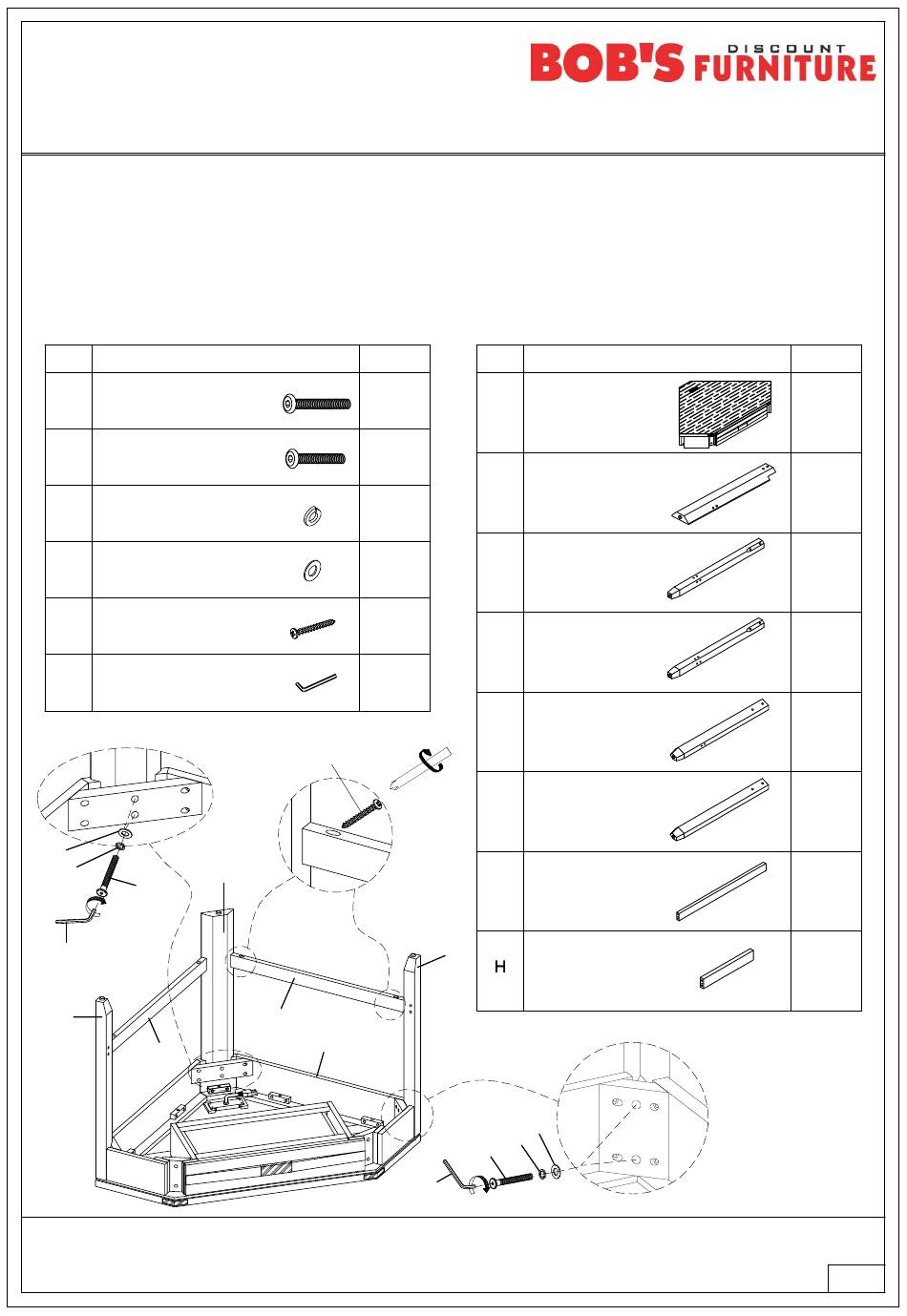

ASSEMBLY INSTRUCTIONS
ELEVATIONS CORNER DESK
Caution: Please fully read instructions before unpacking assembly parts.
1. We recommend that you assemble this product with the assistance of another person to avoid injury and prevent
damage to the product.
2. Be sure to check all packing materials carefully for small parts or hardware that may have come loose inside the
carton during shipment.
3. Please put all parts on a non-abrasive surface before assembling. Follow the steps to assemble your newly
purchased product correctly.
No. Hardware
Bolt
1
Ø5/16" x 2-1/8"
Bolt
2
Ø5/16" x 1-5/8"
Spring Washer
3
Ø5/16"
Flat Washer
4
Ø5/16"
Screw
5
#4 x 1-1/2"
Allen Key
6
M4
Requires Philips Head screwdriver (not included).
4
3
2
6
D
G
Hardware Pack Location(s):
CORNER DESK
Qty
8
2
10
10
8
5
B
G
A
No.
A Table Top
Back Leg
B
C
Left Leg
D
Right Leg
1
E Front Leg (L)
F
Front Leg (R)
G Long Stretcher
C
Short Stretcher
NOTE: Do not fully tighten bolts and screws during this step.
4
3
1
6
Part Qty
1
1
1
1
1
1
2
2
1 of 5
