Instruction Manual
No.8268-00 Infrared Thermometer
Model SK-8300
The SK-8300 complies with Portable Laser Applied Device of Consumer Product Safety Act and
carries PSC mark.
3-4, Kanda-kajicho, Chiyoda-ku, Tokyo 101-0045 Japan
URL: http://www.sksato.co.jp/english/
N.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-8300 and is the answer not in the manual?

Questions and answers

Related Manuals for SATO SK-8300

Summary of Contents for SATO SK-8300

  • Page 1 Instruction Manual No.8268-00 Infrared Thermometer Model SK-8300 The SK-8300 complies with Portable Laser Applied Device of Consumer Product Safety Act and carries PSC mark. 3-4, Kanda-kajicho, Chiyoda-ku, Tokyo 101-0045 Japan URL: http://www.sksato.co.jp/english/ N.10...
  • Page 3 - As the SK-8300 is a precision instrument, be cautious not to drop it or apply any vibration or impact to it. - This instrument is not waterproof. Do not allow the unit to get wet.
  • Page 4 NB: For repairs and calibrations, contact us or the dealer from which the unit was purchased. Overview The SK-8300 is non-contact type infrared thermometer, which detects the infrared energy emitted from an object and converts it into a temperature reading. The product can instantly measure a surface temperature of an object without any direct contact with the object.

  • Page 5: Names Of Components

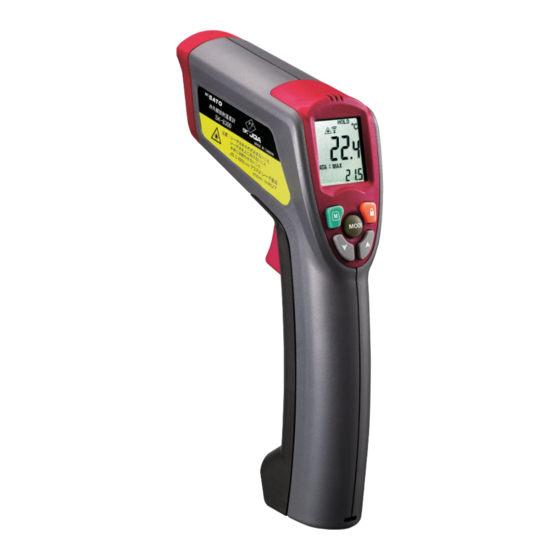

    Names of Components Main Unit Display section : Store data (Data Memory) MODE key : Select measurement and setting items : Load a stored data and use to change a value in measurement mode : Switch ON/OFF for auto-measurement and alarm Loop for wrist strap Laser emitting window Temperature measurement section (lens)

  • Page 6: Warning Label

    LCD Display HOLD : Light up when measured value is being held SCAN : Blink while taking measurements : Low battery mark, light up when the battery power is consumed : Laser emissivity mark: light up when the laser marker setting is ON and blink while emitting the laser : Light up when the alarm is set ON Temperature displaying area (large) : Display a measured value...

  • Page 7: Loading The Battery

    Loading the battery Load a new battery according to the following procedure when using the unit for the first time or when the low battery mark lights up. Open the battery compartment cover by pressing the battery compartment button. Remove the exhausted battery when replacing the battery. Insert the battery with its polarities in correct directions.

  • Page 8: Measurements And Settings

    Measurements and Settings The power is turned on and a measured value is displayed on the LCD when the trigger is pulled. Press the MODE key to select a measurement or setting mode. The sequences for measurement or setting modes are as follow: Note: The instrument stores the selected mode at the time of turning the power OFF.

  • Page 9: Taking Measurements

    Taking Measurements ∙ Measurement with the trigger 1. Face the temperature measurement section to an object of measurement and pull the trigger. The power turns on and a measured value is displayed on the larger temperature displaying area of the LCD. Note: A measurement can be taken even a measurement or setting category is being selected.

  • Page 10: Setting Mode

    ∙ AVG Mode: The “AVG” character lights up and an average value is displayed on the smaller measurement displaying area. An average value is a mean temperature value since the AVG Mode is turned on. Note: The data that can be used to calculate the average is the maximum 256. When the number of data exceeds 256, the average value is calculated again from them.
  • Page 11 Data Storing (Memory) Function A measured value displayed in the smaller measurement displaying area can be stored and loaded later on. The instrument can store up to 10 data. All stored data do not get deleted even the battery is taken out from the unit. Storable Data Measurement Mode Setting Mode...
  • Page 12 Cautions on Measurement Measurement Spot Size The measurement spot size of SK-8300 changes in accordance with the measurement distance as below: S(diameter) @ D (distance) The diameter of the measurement spot shown above is defined on the basis of the area that receives 90% or more of energy.
  • Page 13 Cautions on Measurement ∙ Measuring through a glass The infrared radiation emitted from the SK-8300 does not go through glass, thus taking measurement through a glass cannot be performed. (The instrument measures the temperature of the glass surface.) ∙ Measuring High Temperature It is dangerous to take a measurement of an object with high temperature because of possibility of getting a burn from being in contact with the object or being close enough to be in effect of radiant heat.

  • Page 14: Maintenance

    Maintenance The measuring accuracy could be compromised if the lens is not clean. Use a camera blower to clean the lens. If it is still dirty, use a cotton swap soaked in a lens cleaning solution to wipe the stain away. Caution: Never use water or any other cleaning solvent to clean the lens.

  • Page 15: Warranty

    Specifications Name Infrared Thermometer Cat. No. 8268-00 Model SK-8300 Measuring range -30ºC to 1550°C Accuracy ± 3ºC at -30ºC to -20.1°C (at 23ºC ± 5ºC) ± 2ºC at -20ºC to 100°C ± 2% Reading at other than above ranges Calibrated by Black body emissivity at 0.95 Resolution 0.1°C...
