- Page 1 INSTRUCTION MANUAL SK-8100 Series Infrared Thermometers SK-8110/SK-8120/SK-8130/SK-8140...
- Page 2 Introduction Thank you for purchasing the SK-8100 Series Infrared Thermometers. This instrument is a non-contact thermometer for measuring surface temperature. Do not use it for other purposes. Please read this manual thoroughly before using the instrument and keep the manual in a safe place for your future reference.

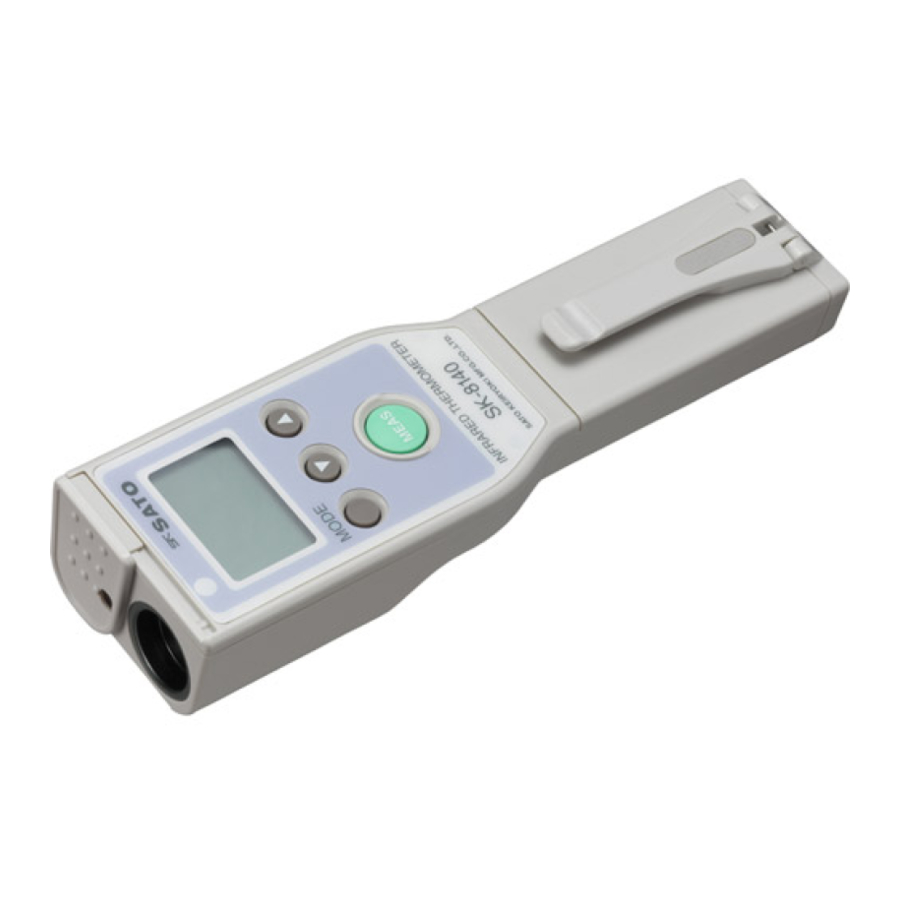

- Page 3 Please contact us or a distributor for repairs or calibrations. Overview The SK-8100 series thermometers are non-contact type infrared thermometers, which detect the infrared energy from an object and convert it into a temperature reading. These are capable of taking instant measurement of a surface temperature without touching the...
- Page 4 Features Non-contact and clean, sanitary measurement This instrument has waterproof property of IPX4 (JIS C 0920), meaning that it is designed to withstand water splash without sustaining damage、however never wash it with water or immerse in water since the instrument is not completely waterproofed. ...
-
Page 5: Names And Functions Of Components
Names and Functions of Components ② ⚫ Model SK-8110 ① ④ ① Laser projection window: ③ Do not look into the laser beam ② Lens cover ③ Brightness sensor: Senses the ambient brightness. The LCD backlight is lit when the surroundings are dark. ④... -
Page 6: Lcd Display
⚫ Sensing Area ① Temperature measuring area ② ① ② Laser projection window: Do not look into the laser beam ③ Laser projection window (for SK-8140 only) ③ Do not look into the laser beam Note: Even with the lens cover closed, laser can be projected if the button is pushed. -
Page 7: Loading Batteries
Loading Batteries Set the batteries with the following procedure. 1. Open the battery compartment cover 2. Insert batteries in place checking both polarity (+ and -). 3. Close the battery cover Note: Replace the batteries immediately when the low-battery mark on the LCD appears. Measurements while the low-battery mark is lit may affect the accuracy, possibly resulting malfunction of the thermometer. - Page 8 ⚫ Measurement 1. Slide the lens cover to open. SK-8110 / SK- 8120 / SK-8130 SK-8140 2. Turn the power on by pressing any one of buttons. 3. Direct the thermometer to the object and press button. Note: The object has to be larger than the projected laser circle. The SK-8140, dual point laser type, only measures the temperature of the spot where the two beams are focused.
- Page 9 Measurement Areas and Laser Maker Measurement area (spot size) of the thermometers changes in accordance with the measurement distance as shown below. ⚫ SK-8110 / SK-8120 / SK-8130 ---- Laser marker indication distance diameter distance (m) diameter (mm) ⚫ SK-8140 Laser marker indication ---- distance...
- Page 10 Setting (For SK-8110) 1. Press the button for more than 3 seconds to enter the emissivity setting mode. The LCD displays the previously set emissivity value. 2. Press the button to display emissivity value. Select the appropriate emissivity among 0.95, 0.90 and 0.85. ...
- Page 11 4. Press the button to display emissivity value or mode. (For SK-8120) Select the appropriate emissivity among 0.95, 0.90 and 0.85. (For SK-8130/SK-8140) Set the emissivity in 0.01 steps among 0.10 and 1.00. 0.95 : Food such as meat, fish and vegetables ...
-
Page 12: Emissivity Table
How to switch temperature unit (Switch the unit Celsius to Fahrenheit) 1. Open the lid of the battery compartment. 2. While pressing button, install the batteries. It will take about 5 seconds to change the display. If the indicated unit does not change, release button and press it again. -
Page 13: Troubleshooting
Troubleshooting Problem Possible Cause and Correction The Screen remains The batteries may be installed backward. blank when the Install the batteries correctly. button is pressed. The battery power may be insufficient. Replace the batteries to new ones. If the display still does not appear, consult our service network. -
Page 14: Specifications
Specifications Cat. No. 8211-00 8212-00 8213-00 8214-00 Model No. SK-8110 SK-8120 SK-8130 SK-8140 Measuring range -40℃ to 400℃ -50℃ to 500℃ Resolution 1℃ Selectable 0.95, 0.90 and 0.85 (switchable) 0.10 to 1.00 (0.01 steps) emissivity Response time 1.5 seconds (90% response) Accuracy ±1%rdg higher than 200℃...
