Title NetVu Uniplex Desktop NVR Advanced Installation Manual
Connections

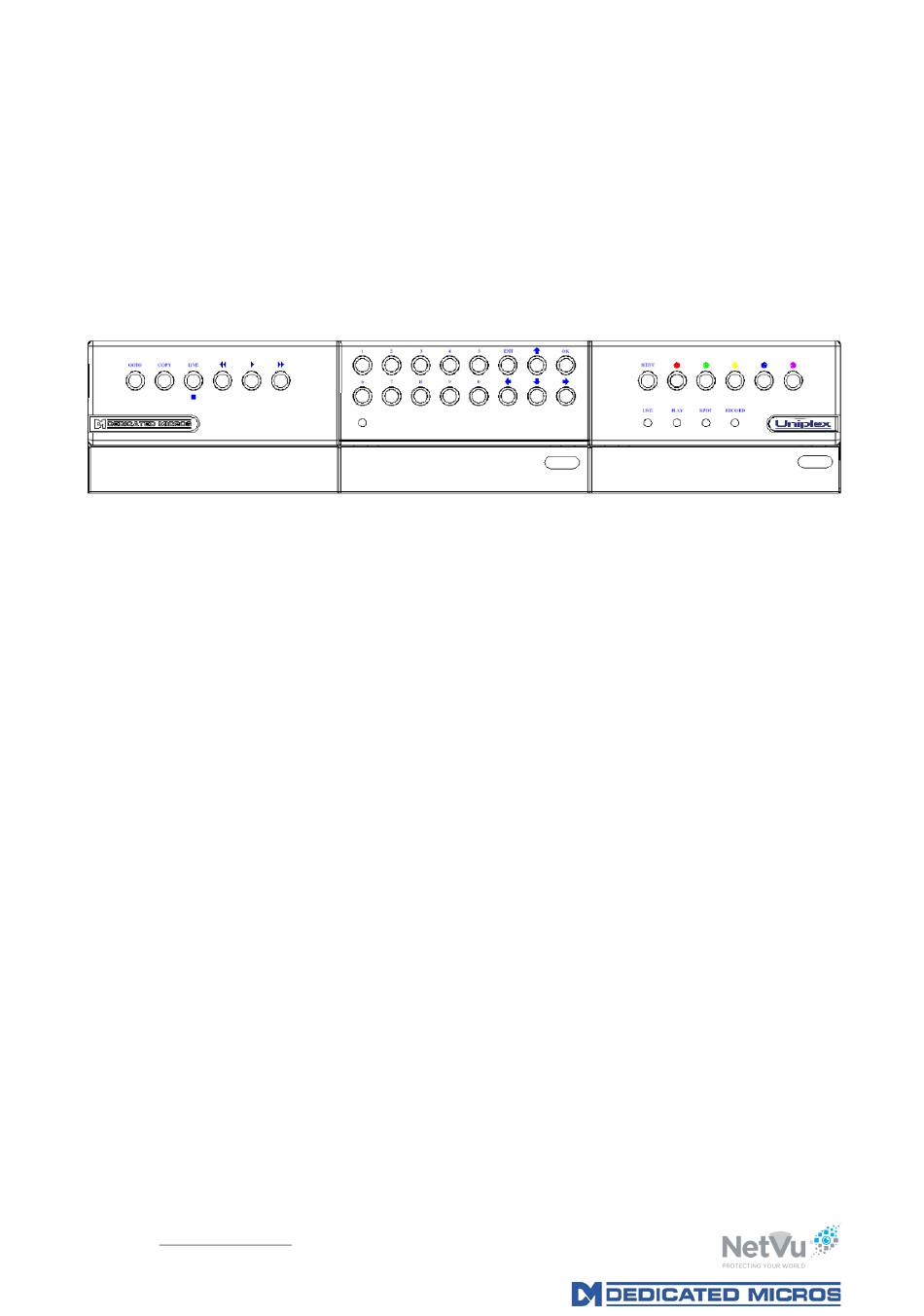

The Uniplex Desktop NVR has a front panel fitted with the following controls and connections:
Push Buttons
•
o GOTO, COPY, LIVE, REWIND, PLAY, FAST FORWARD
o NUMBERS 0 – 9
o CURSOR UP, DOWN, LEFT, RIGHT
o MENU, OK, EXIT
o COLOUR RED, GREEN, YELLOW, BLUE, PURPLE
Status LEDs
•
o Green - Unit working normally No LED - Power Failure
o Live - Unit is in Live mode when lit. Play -Unit is in Playback mode when lit.
o Record - Unit is recording video to the internal hard disk.
USB 2.0 Socket
•
o Located under hinged flap
