Summary of Contents for Argos Jenson 937/4610

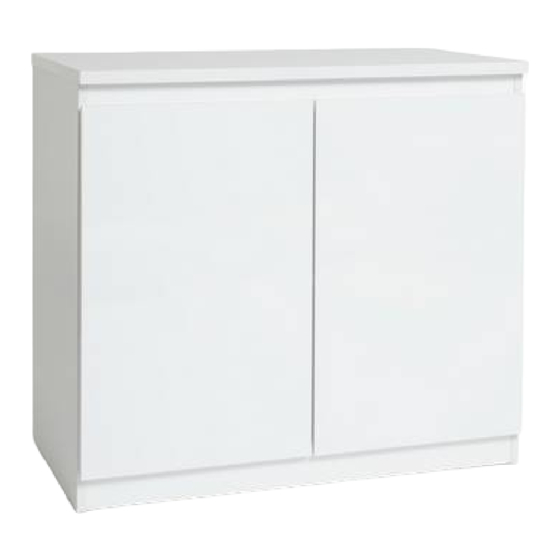

- Page 1 JENSON Gloss 937/4610 940/4597 Spare Parts Customer Support Visit: www.argos-support.co.uk Call: 0345 640 2020 Email: Help@ClickSpares.co.uk Call: 0330 016 1114 Issue 2 - 29/09/20...
-
Page 2: Care Advice
Safety Important - Please read these instructions fully before starting assembly • WARNING: To prevent • Warning: This unit weighs possible overbalancing this unit approximately 66kgs. must be secured to a wall using Please lift with care. the 2 overbalance protector kits •... -
Page 3: Cabinet Panels
Cabinet Panels Please do NOT remove any protective film until after assembly 73.3 x 42.9cm 73.3 x 42.9cm 76.4 x 41.4cm 76.4 x 6cm 79.8 x 45cm 67.7 x 77.4cm 76.4 x 41.3cm 63.7 x 39.3cm... - Page 4 Fittings Use these drawings to correctly identify the fittings Main Bag x 16 x 12 x 12 Tools Only used for drilling walls...
- Page 5 Finished front edges...
- Page 6 Finished front edge Finished front edges...
- Page 7 Finished front edge...
- Page 9 Squaring up a Chest and fitting the Back Panel www.youtube.com/watch?v=FeaI6541z7o The Back panel must be flush with the Back Rail. A = B Make sure measurement A and B are the same...
- Page 10 Only use 1 Screw to fit each Bracket Finished front edge Finished front edge IMPORTANT: The Back panel must slot into the groove in the Top panel...
- Page 12 WARNING! In order to prevent overturning this product must be used with the 2 wall attachment devices provided See the next section for a guide to wall mounting and fixings Slide the Brackets against the wall. Fit the 2nd screws supplied with the Brackets into the underside of the Top panel.
-
Page 13: A Guide To Wall Mounting & Fixings
A Guide to Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit. - Page 14 Finished front edge...
- Page 15 Pre-mounted Hinge Fitting & Adjustment https://www.youtube.com/watch?v=b4NeCGnpjP8 Press the screws into the holes in the panels When the hinges have been pushed in, tighten up their screws Repeat for both doors...
- Page 16 Pre-mounted Hinge Fitting & Adjustment https://www.youtube.com/watch?v=b4NeCGnpjP8 Adjust the Door if required Height adjustment. Loosen screws A on Hinge Plates and move Door up or down as required. Retighten screw A. Forward and Back adjustment. Loosen screw B on Hinge Plate and move door in or out as required.
