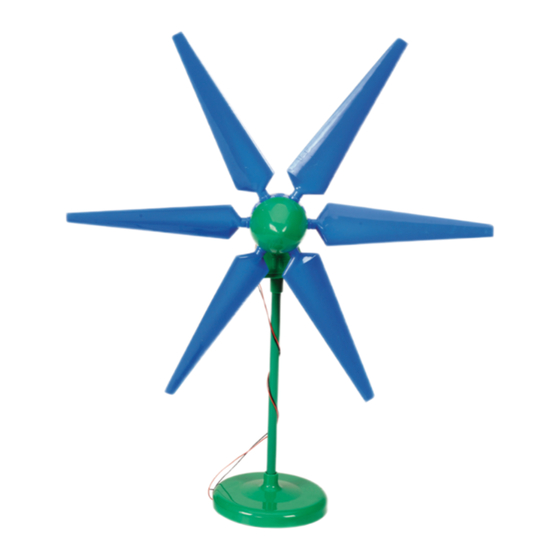

Renewable Energy Kit

SE-7611

What's included

• 6× Blade, 6"

• 6× Blade, 8"

• 6× STEM blade adapter and dowel

• Shaft with wing nut

• 2× Hub

• DC motor

• Nose cone

• Base

• DC motor stand (with 2× screws and 2× nuts)

• Nacelle, front and base (with 4× screws and 4× nuts)

• LED

• Buzzer

• Resistor, 30 Ω, 1/4 W

• Tower, tall

• Tower, short

• Solar panel, 2 W

Renewable Energy Kit • SE-7611 | 1

Product Manual

012-14898D

Table of Contents

Need help?

Do you have a question about the SE-7611 and is the answer not in the manual?

Page 1 • Shaft with wing nut • Buzzer • 2× Hub • Resistor, 30 Ω, 1/4 W • Tower, tall • DC motor • Tower, short • Solar panel, 2 W • Nose cone • Base Renewable Energy Kit • SE-7611 | 1...
Page 2 2. Compress the pieces together with your fingers and insert the shaft. 2. Connect the DC Motor Stand to the nacelle base. 3. Use the wing nut to compress the blade assembly. 4. Connect the nose cone. 2 | Renewable Energy Kit • SE-7611...
Page 3 Step 5: Assemble the rotor Lab activities The following lab activities are available as PDF and SPARKlab files at pasco.com/renewable. They are free to download and use with SPARKvue. • Energy Transformations • What is Electricity? • Solar Panel Performance •...
